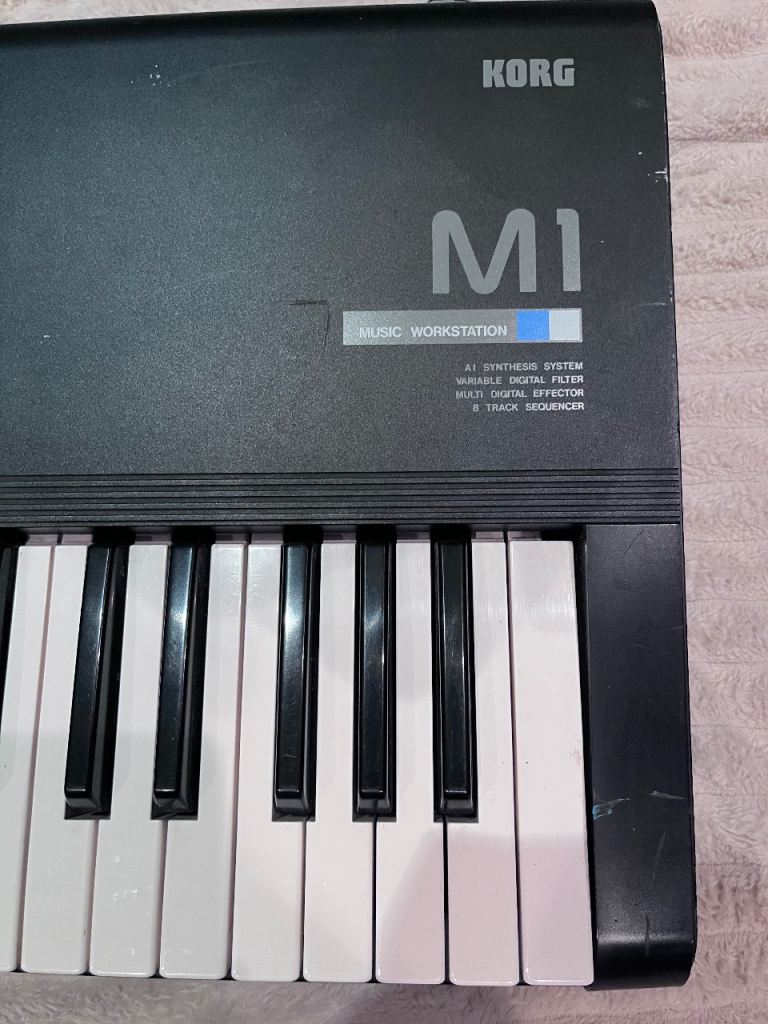

Korg M1 digital midi workstation

Description

The Korg M1 midi music workstation was released in 1988. It was introduced as a groundbreaking digital synthesizer and workstation featuring AI Synthesis (PCM-based sample playback) and an 8-track sequencer.

Classic sounds from late 80's/early 90's

Fully working and factory reset to initial sounds

Key Specifications
Synthesis System: AI (Advanced Integrated) Synthesis, 16-bit PCM ROM
Polyphony: 16 voices (single mode), 8 voices (double mode)
Memory: 4MB PCM ROM (149 waveforms: 75 acoustic, 44 drum, 30 DWGS)
Keyboard: 61 keys, velocity and aftertouch sensitive
Programs/Combinations: 100 Programs and 100 Combinations (user-editable)
Effects: Dual digital multi-effects processors (33 effects types, including reverb, delay, chorus, EQ, and Leslie)
Sequencer: 8-track, 4400–7700 note capacity
Control: MIDI (8-part multitimbral), Joystick (pitch/modulation), Damper pedal, 2 assignable pedal inputs
Outputs: Main (L/MONO, R), AUX (1, 2)
Architecture & Features
Filters: Non-resonant Variable Digital Filter (VDF).
Envelopes: Dedicated ADSR generators for VDA (Amplitude), VDF (Filter), and Pitch.
Expansion: PCM and Data RAM card slots.
Weight: 13 kg.
