BASTL Little Nerd Eurorack trigger and clock manipulation module

Description

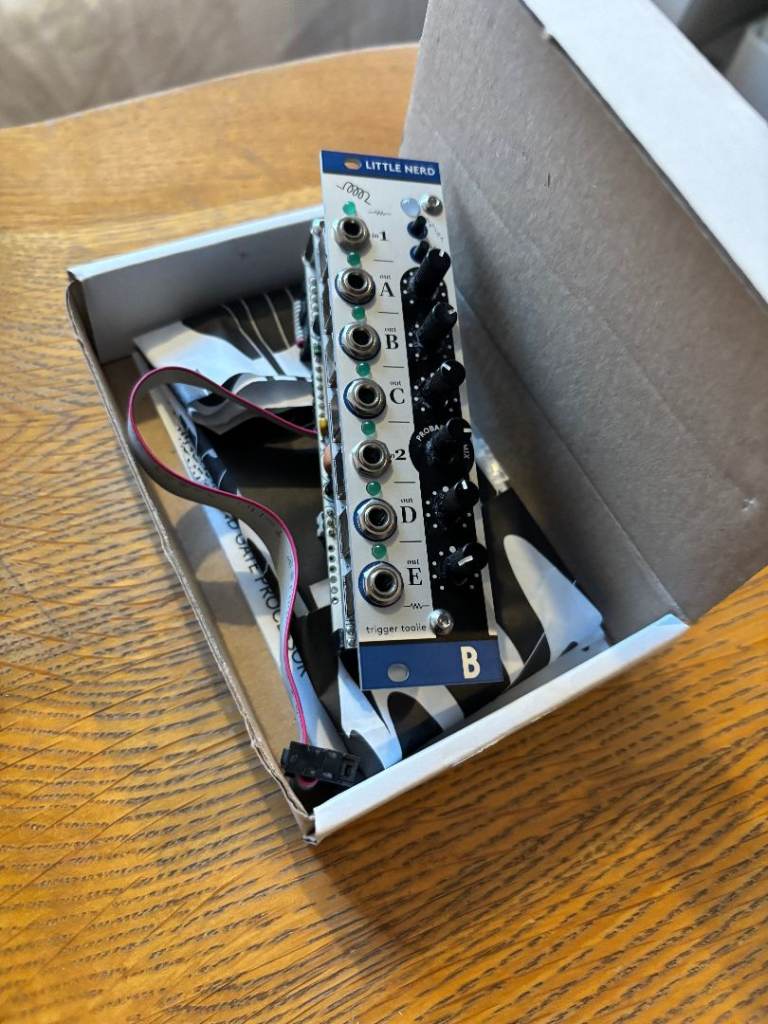

Near mint condition with original box

Little Nerd is a trigger and clock manipulation module which tries to be able to do everything you have ever imagined and wished to do with the trigger or clock signals in your modular in only 6 HP. It has 2 inputs (1,2) and 5 programmable outputs (A,B,C,D,E). The signal from input 1 can be processed into outputs on channels A, B, and C . Signal input 2 can be processed into outputs D, and E. Signal input 2 has a probability mix knob which sets whether the signal to be processed by output D and E is taken from input 1 or input 2 (fully counter-clockwise means it always processes the signal from input 2).

Every channel has a dedicated knob, and the functionality of the knob is dependant on the output mode of the individual channel. Output mode can be set by pressing the MODE button after selecting the channel by turning one of the A,B,C,D,E knobs (now the RGB shows the color of the specific mode). The color of the RGB led indicates which mode is selected for the specific channel.

In most of the modes, you have 2 PARAMETERS you can set. PARAMETER 2 is set only while holding down the SHIFT button. PARAMETER 1 is set while no buttons are pressed. The modes are: DELAYED DIVIDER, TRIGGER 2 GATE / FLOP DIVIDER, MULTIPLIER, TRIGGER REPEATER, EUCLIDIAN SEQUENCER, CLOCK OSCILLATOR, and PROBABILITY / GROOVE.
