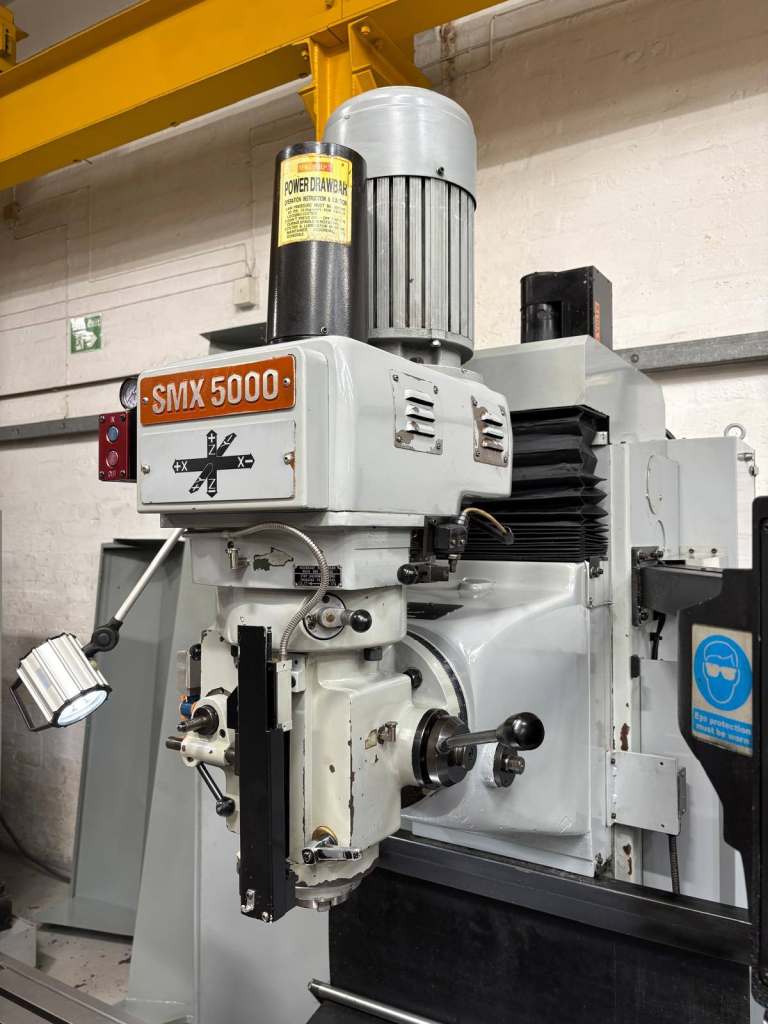

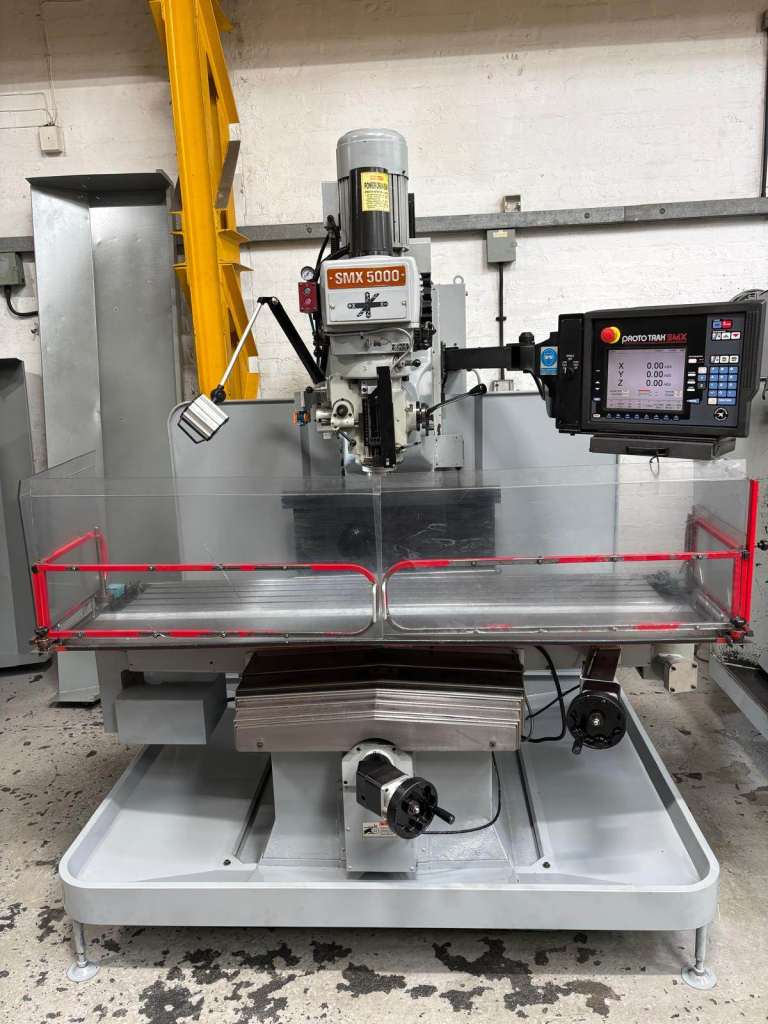

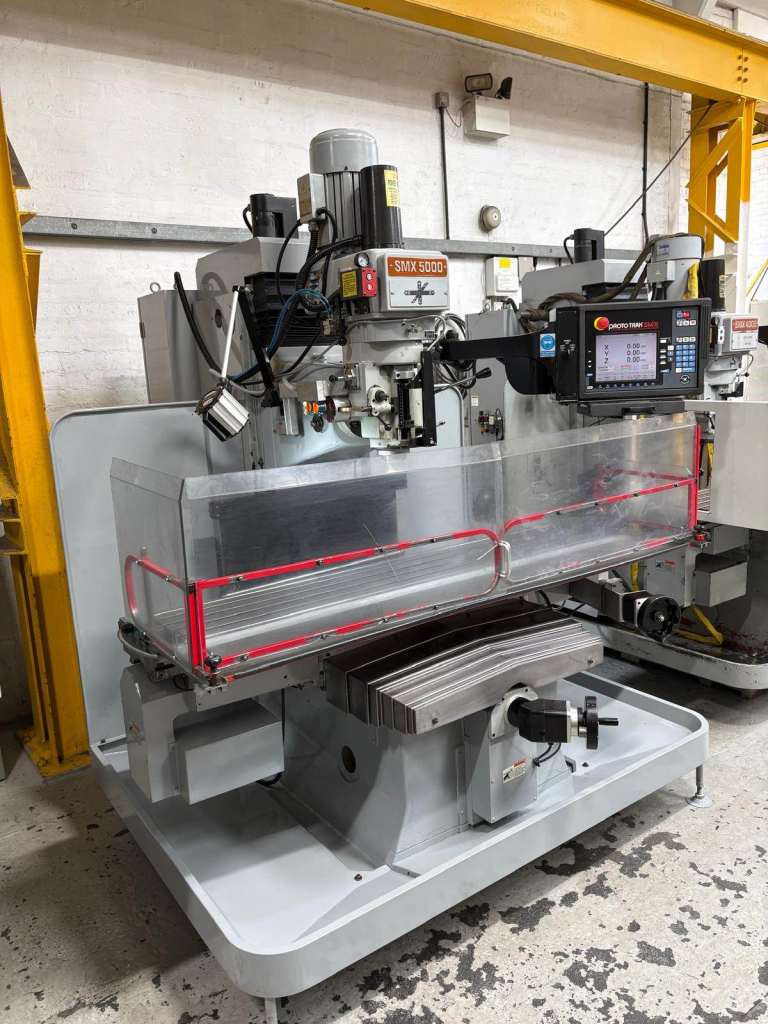

XYZ SMX 5000 VERTICAL BED TYPE CNC MILLING MACHINE

Description

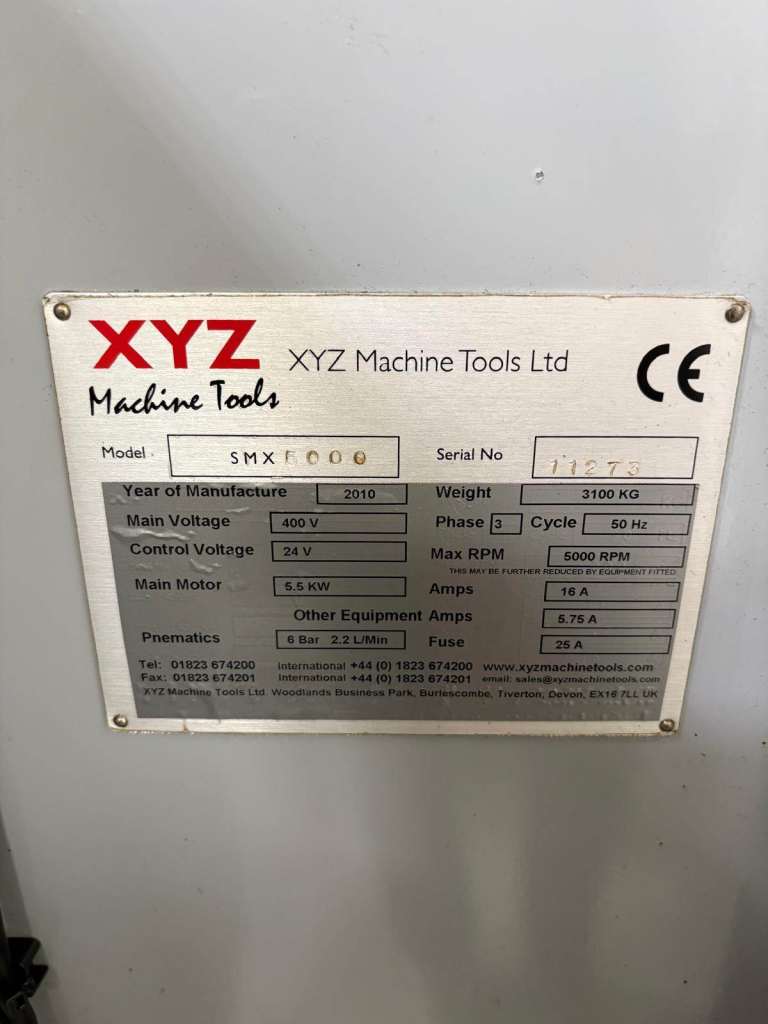

Model SMX5000

Year of manufacture 2012
Serial number 11273

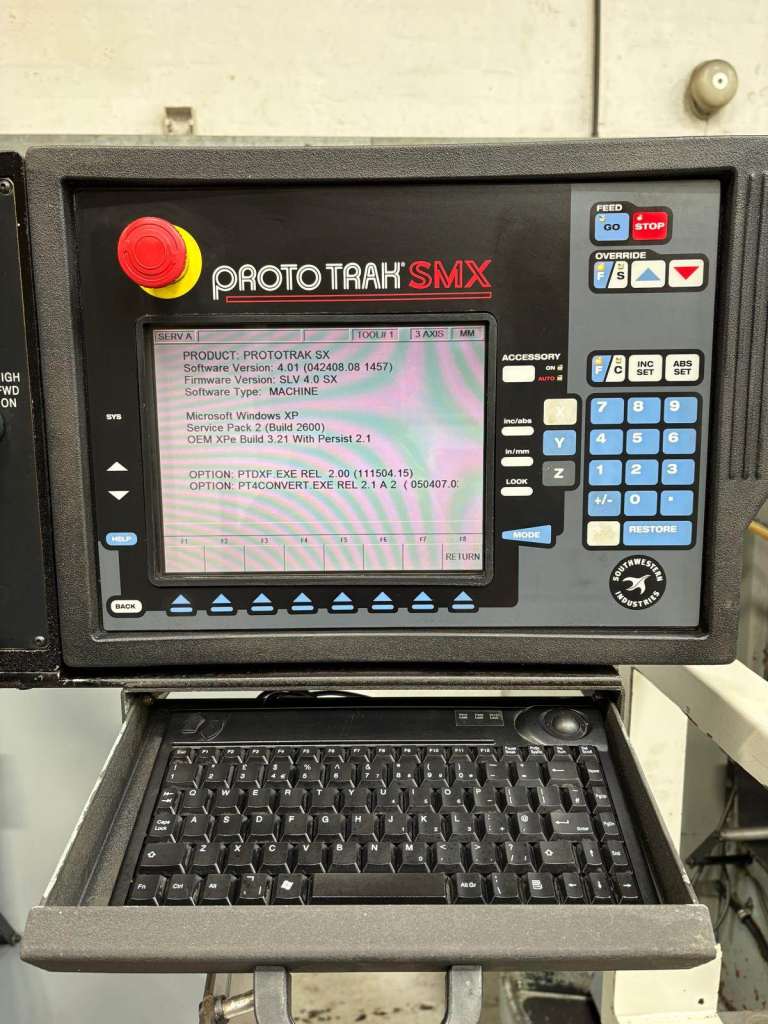

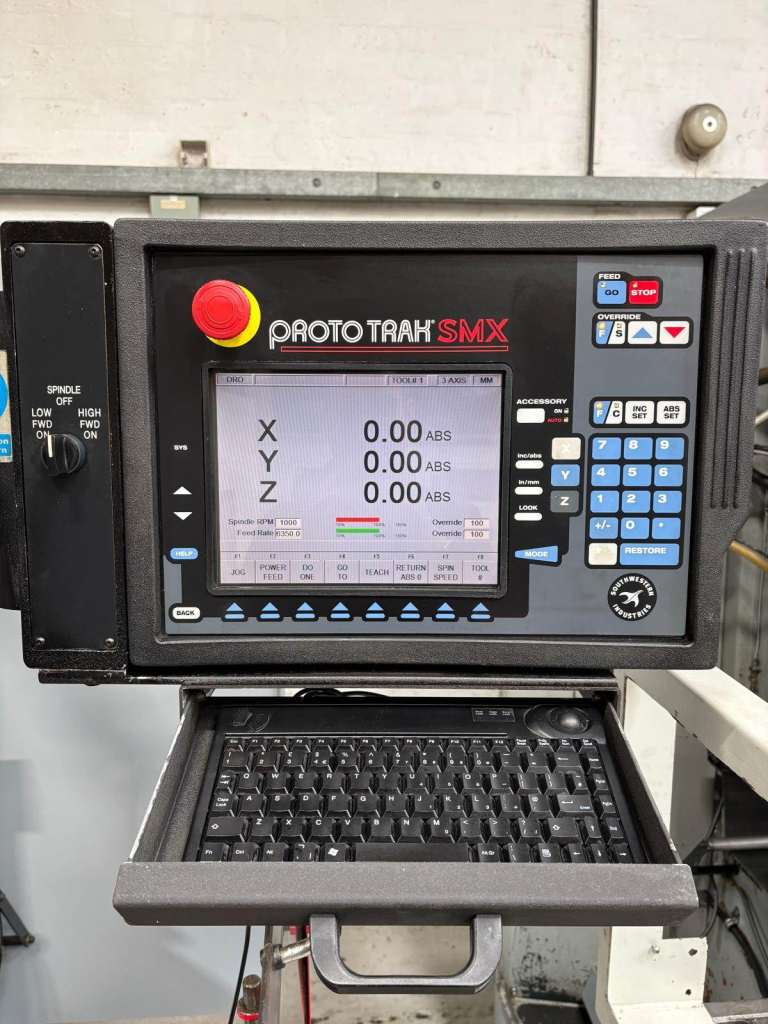

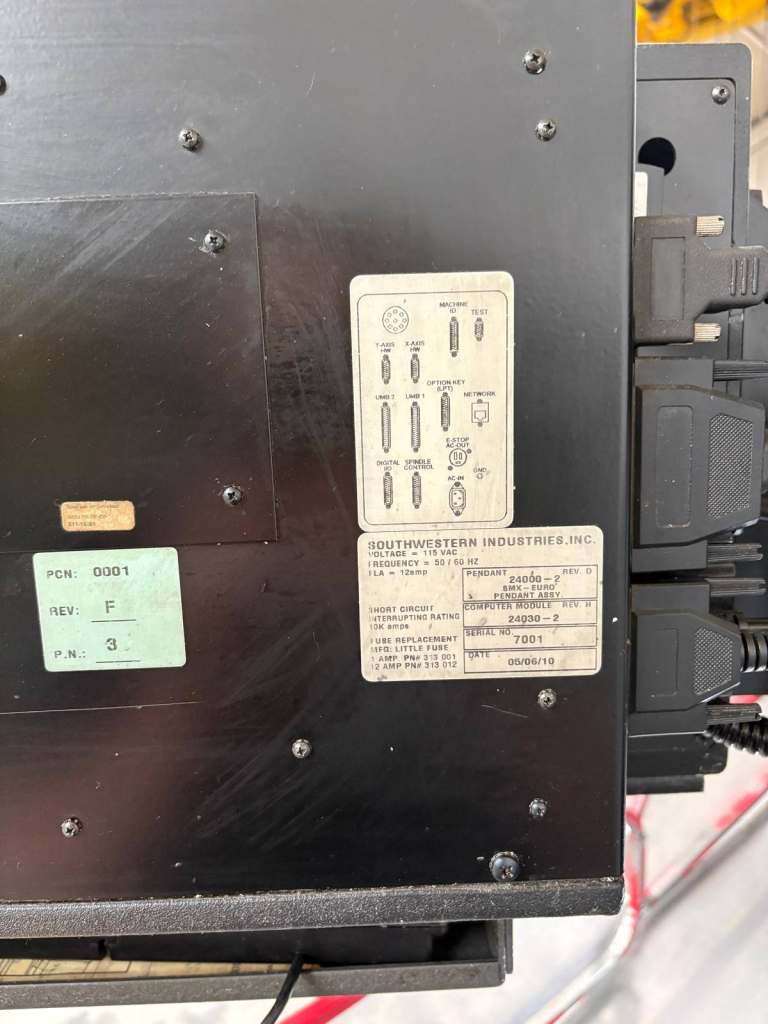

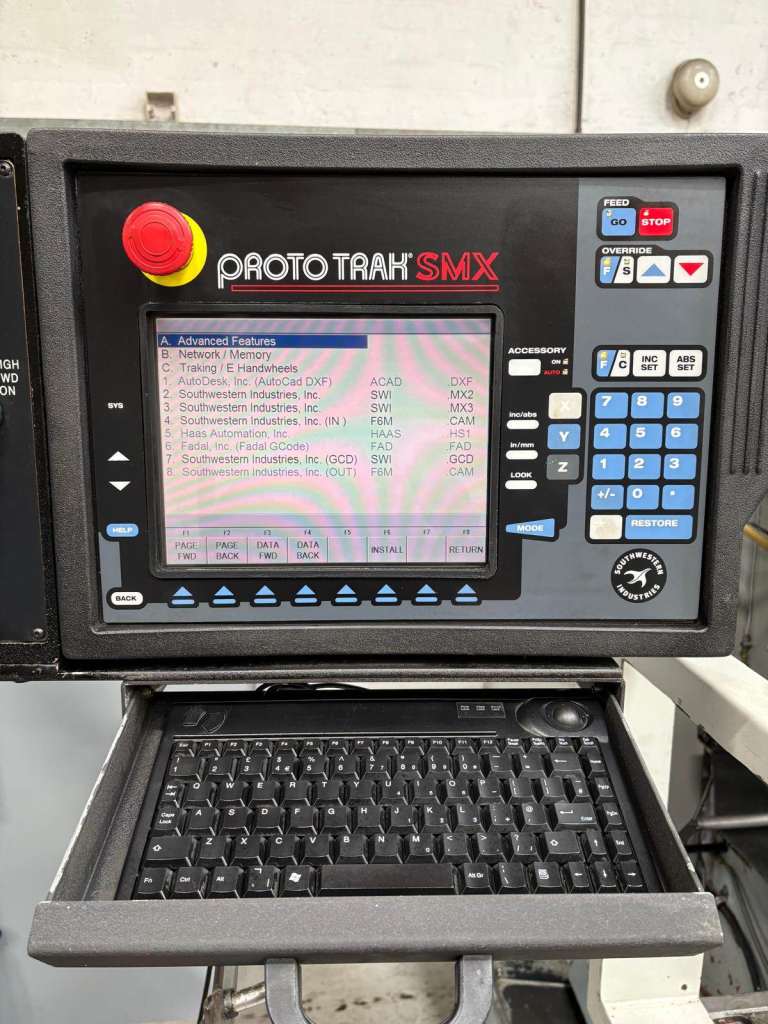

Control system PROTO TRAK SMX

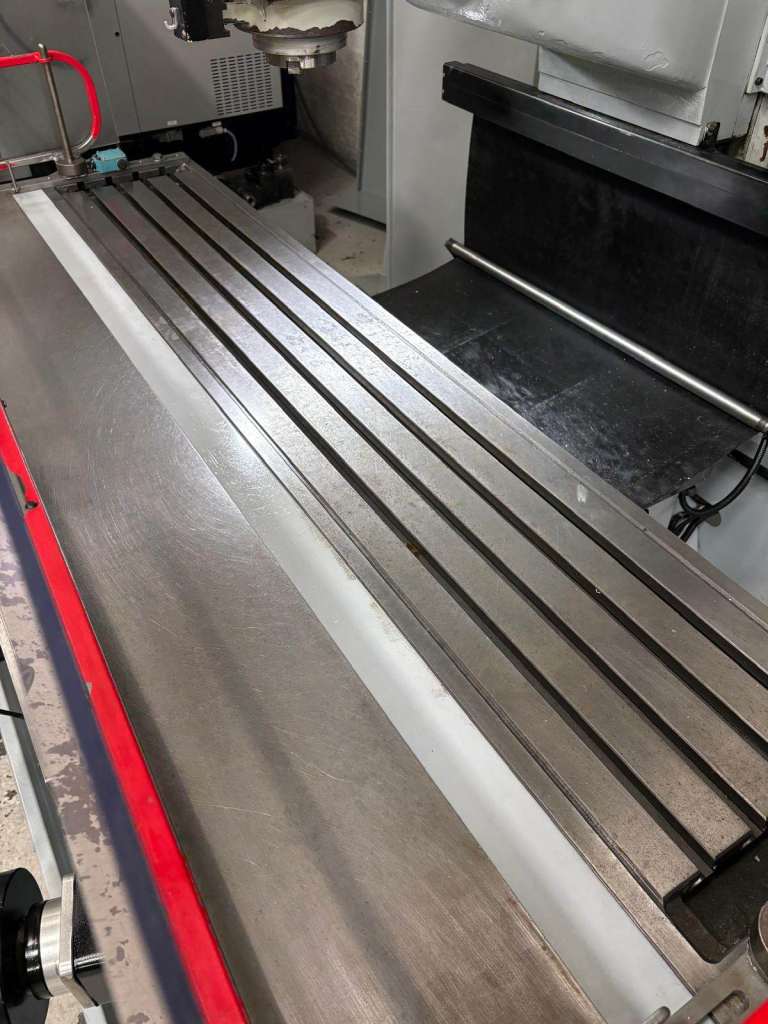

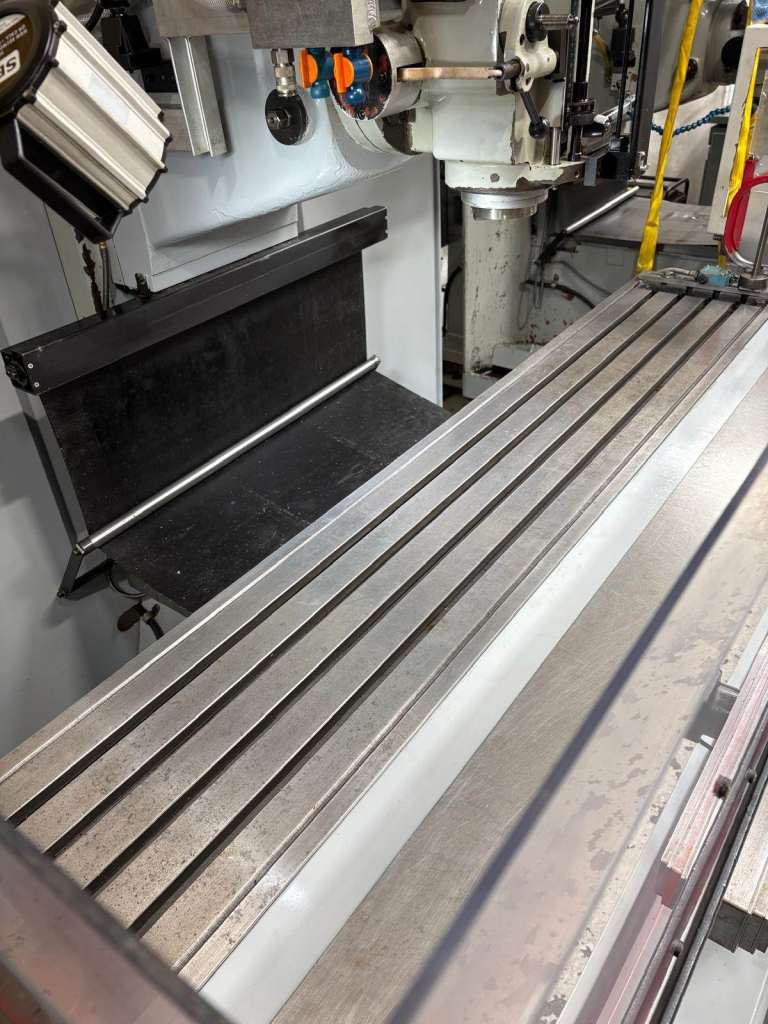

TABLE
Table size overall 76” x 14” 1930 x 355 mm
Table load capacity 1870 lb 850 kg

MOVEMENT
Table positioning travel (X x Y) 60” x 23.5” 1524 x 596 mm
Head vertical travel (Z) 21” 540 mm
Distance, table to spindle 3.75” – 26.5” 95 - 675 mm
Spindle centre to column face 24” 610 mm

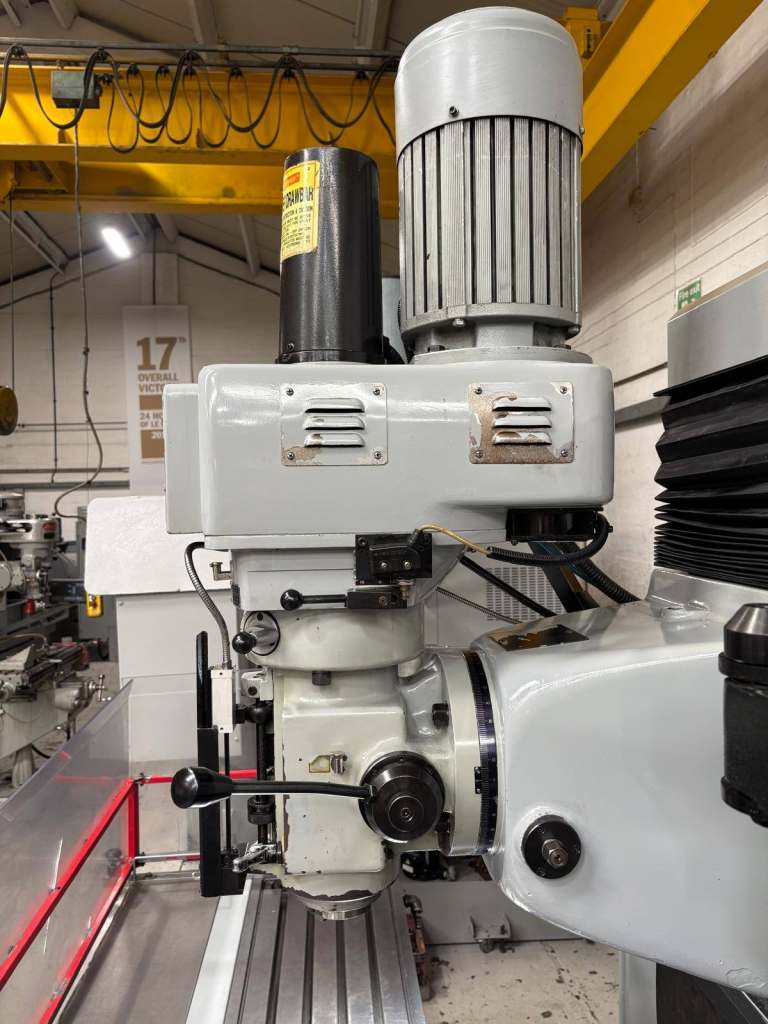

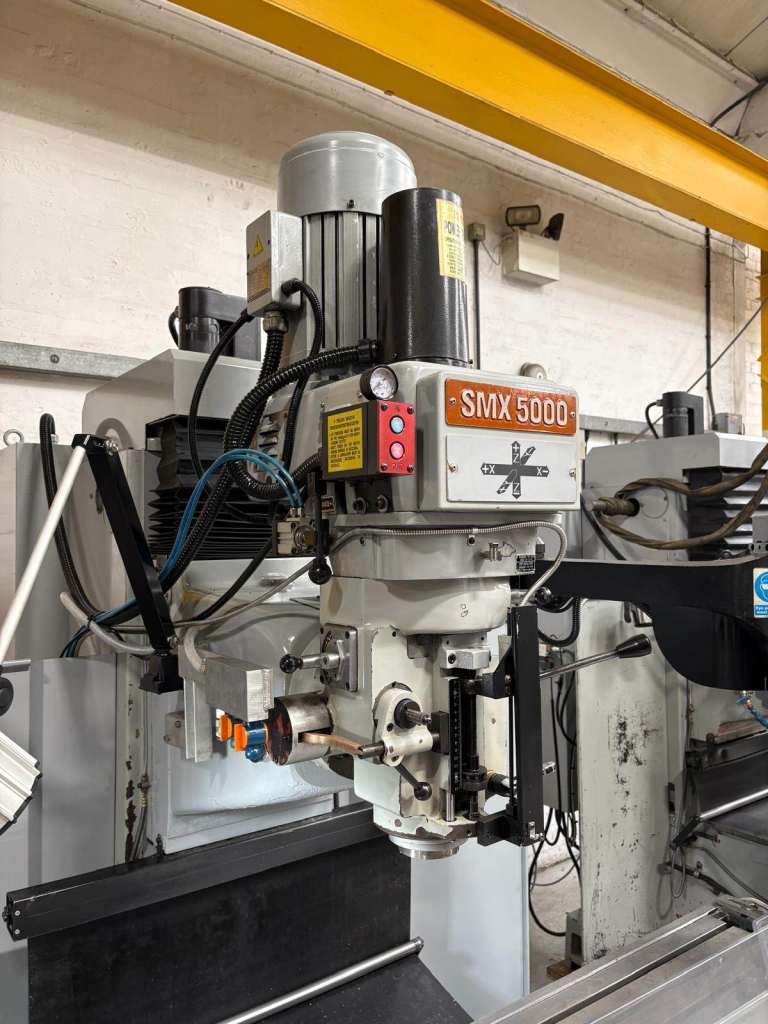

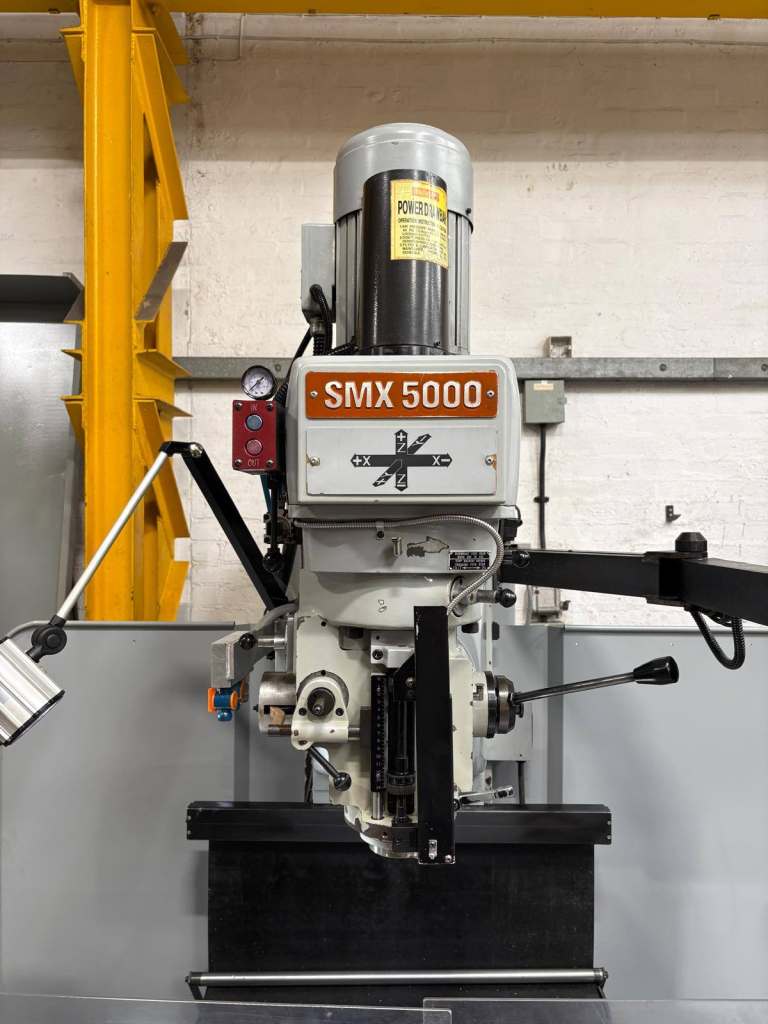

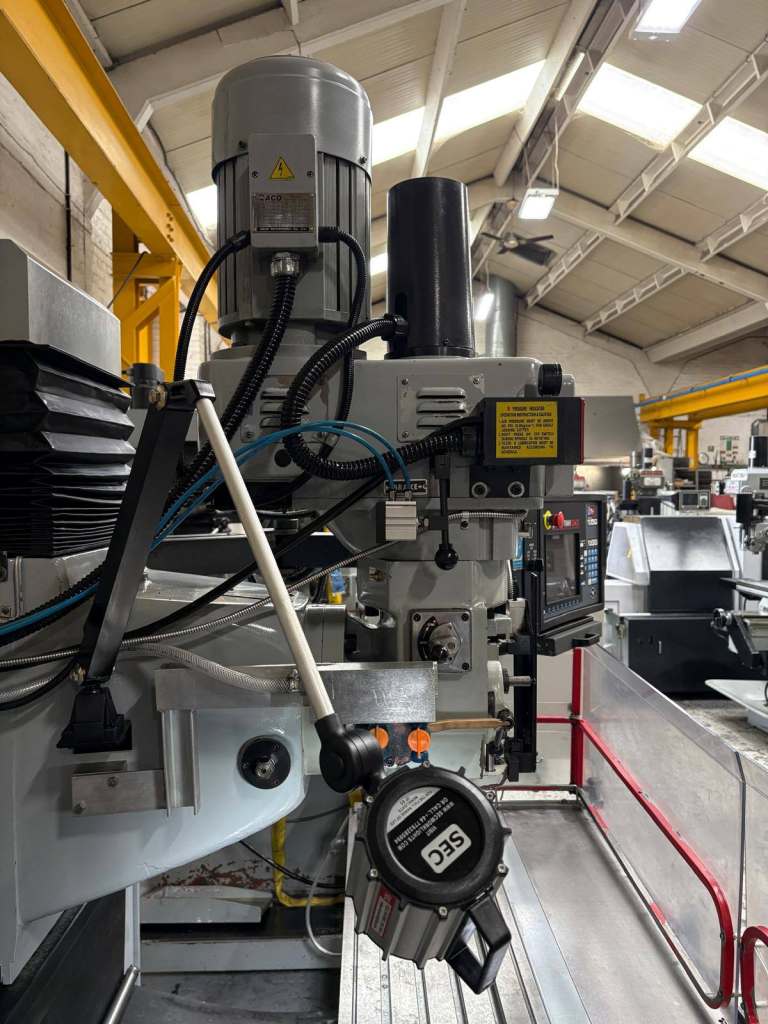

SPINDLE
Spindle taper ISO 40
Spindle speeds (Inf. Variable) 40 – 5000 rpm (Inverter)
Head swivels to left and right 90 degrees
Spindle feed per revolution .0016” / .00309” / .00513” .0418 / .0786 / .1303 mm
Quill travel 5.5” 140 mm
Spindle drive motor 7.5 HP 5.75 kW

Overall size approx. 2768mm W x 2286mm F to B x 2540mm H.
Machine weight (approx.) 3200 kg.

Complete with :-

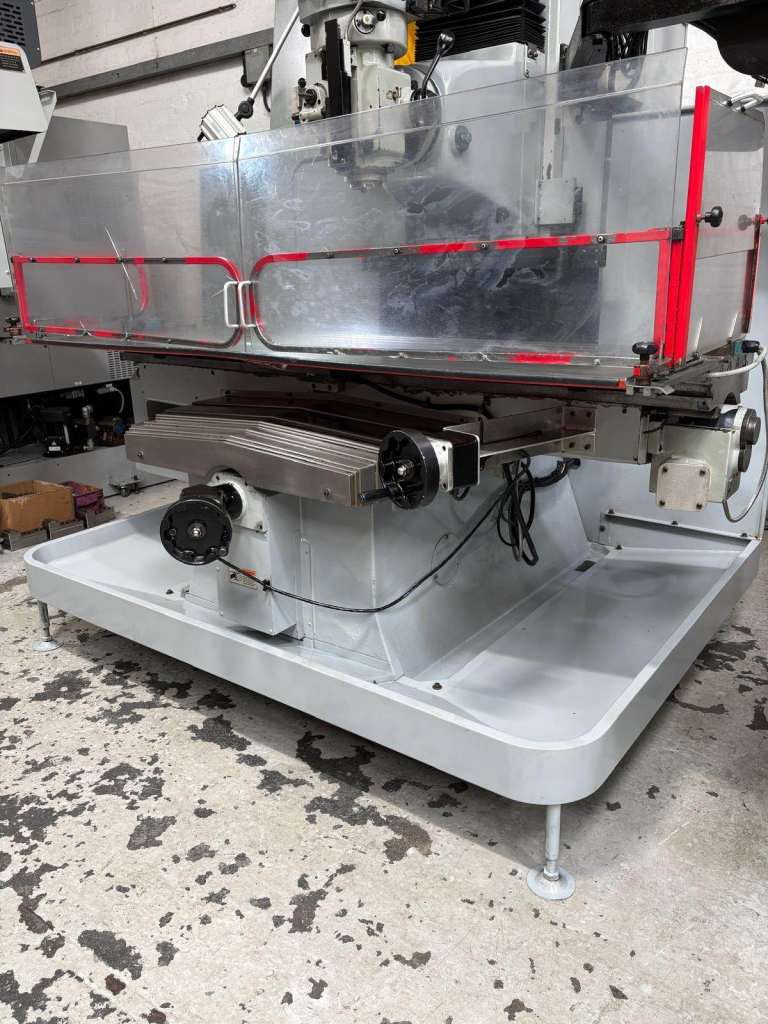

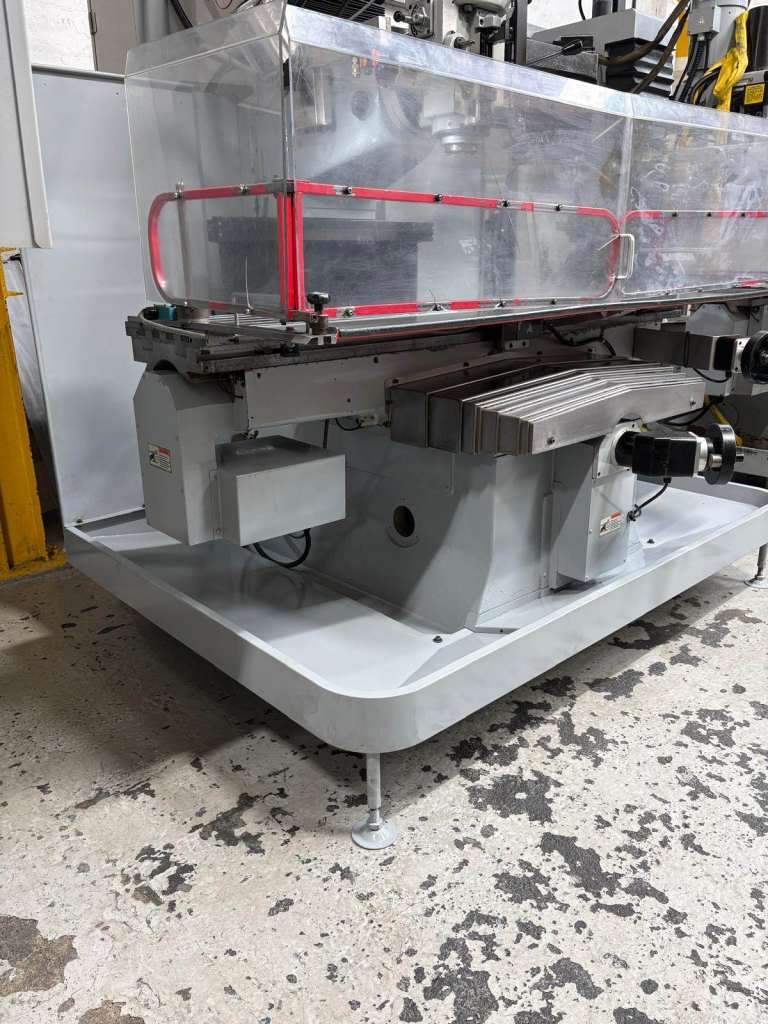

Table Guards.
D.R.O. to Quill.
Air Draw Bar.
Automatic lubrication.
Coolant & Halogen Work light.

GREAT CONDITION !!

PRICE £24,950.00 Plus V.A.T.

Delivery - Ex Stock.

N.B.
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed.
We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.
