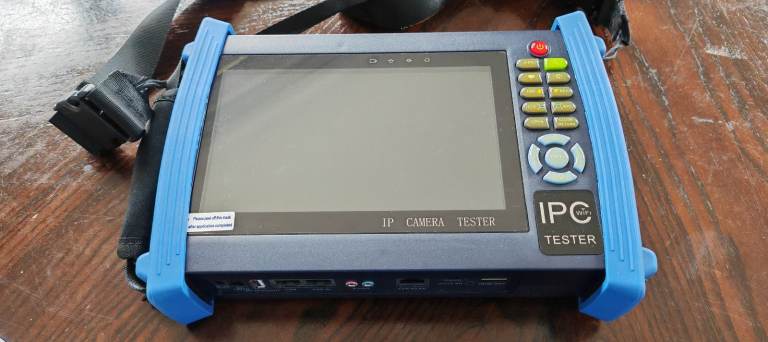

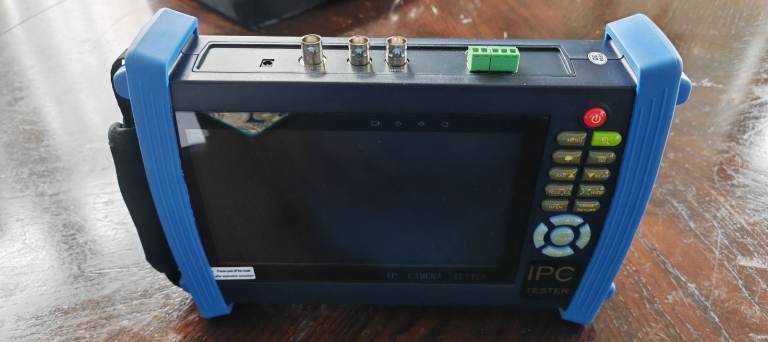

CCTV 7 Inch Proffessional Tester

Description

Excellent condition, good as new.

7 inch touch screen HD resolution ONVIF IP CAMERA DISPLAY & HD-AHD/CVI/TVI/ Camera Test Monitor PTZ TESTER

7" Wide view capactitive touch screen / ONVIF / Support more than 30 IP camera image test (Hikvision, Dahua, Honeywell, Samsung etc) / Mobile Client VIdeo / 12V 2A power output / 5V 2A power bank/ PoE power supply / HDMI output/ WIFI

WIFI IPcamera tester is great CCTV tools for IP camera HD-AHD/TVI/CVI Camera installation and maintenance, both for Analog and IP camera test, built in video level meter, Analog anddigital video signal output,
IP address scan, Ping test, Port flashing, cabletest,
easy to operate Improved IP camera tester, After charging 7~8 hours, normal working time 16 hours, built in WIFI，test Wireless IP Camera;
12V 2A power output for camera , 48V PoE power supply,
Directly provide PoE power to IP Camera 5V 2A power output (as a power bank 13000mAh),
HDMI output ; Audio input and output,
Network bandwidth testing, image 180degree rotating,

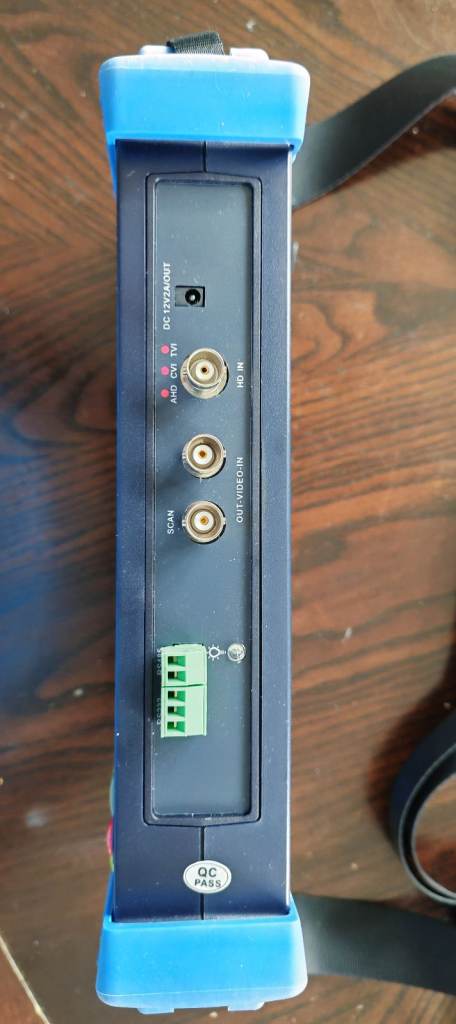

the power and network ports on the top of the tester, easy to connect the cable.

Applications:

CCTV system installation and maintenanceNetwork cabling project installationand maintenance—Dome camera IP cameratestingVideo transmission channel testing—PTZ controller

Features:

7"TFT-LCD touch screen, 1024*600 resolutionBuilt-in WIFI, 10/ 100m Lan PortSupport ONVIF camera testSupport more than 40 customized IP camera protocols such as DAHUA, KEDA, SAMSUNG, HIKVISION and TIANDY cameras etc.Support Video Mangement Software to directly test the network cameras.Display IP camera's image by its genuine resolution, support 1080P.ONVIF PTZ control / videol record and playback / snapshot / 4 x zoom the image display and video output.Analog camera images display / PTZ controlAnalog video level meter , PEAK level, SYNC level and COLOR BURST measurement.Output color bars and the testing image of the digital / analog cameraPoE 24W / 12V 2A power output / USB 5V 2A as a power bankSupport 1080P HD video and MKV media files play etc.HDMI output, 1920*1080P resolution.PING, IP address scan, port finder and link test etc.Audio in / out, recording and storage.Lithium lon polymeer battery, working time lasts 15 hours.



MODEIPC-8600Display7 inch Capacitive touch screen , resolution 1024 (RGB) x 600Network port10/100M auto adjust,RJ45WIFIBuilt in WIFI, speeds150M, receive wireless camera image etcIP camera typeONVIF, ACTi, Dahua IPC-HFW2100P, DHWE-PH7B22P200, Hikvision, DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, Aipuwaton IP5000-BC-13MP/IRS06-13MP, fine-Tida IPC, FSJ BY-1080Q, WEISKY IPC camera etc.Video level test1 channel BNC Input & 1 channel Output , NTSC/PAL (Auto adapt)Video level meterPEAK video signal level, SYNC signal level, COLOR BURST chroma
level measurementZoom ImageSupport Analog camera and IP camera image zoom /move Snapshots,
Video record, Record playback image Screenshots, record , save , view and record play backHDMI output1 channel HDMI output，support 1920*1080P12V/2Apower
outputOutput DC12V/2A power for camera5V power output5V 2A power output, as a mobile phone Power bankPoE power output48V PoE power output, Max power 24WAudio test1 channel audio signal input, test whether sound normal,
1 channel audio signal, to connect headphonePTZ controlSupport RS232/RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung,
Panasonic, Lilin, Yaan, etcVideo Signal
GeneratorOutput one channel PAL/NTSC color bar video signal for testing
monitor
or video cable. (red, green , blue, white and black color )Network color
bar generatorLocal side PC can login the tester, send the signal by network , test network connection communication whether normalColor bar generationOutput one channel PAL/NTSC colorbar video signal for testing monitor
or video cable.
