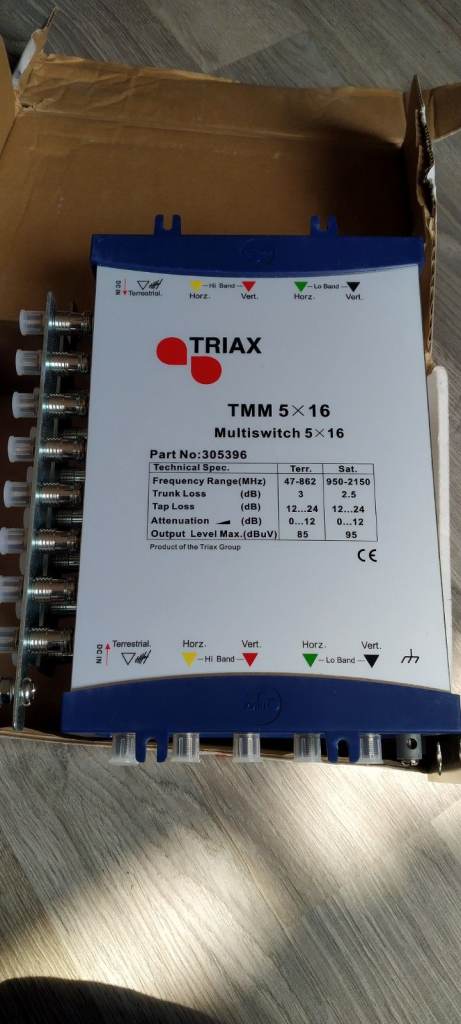

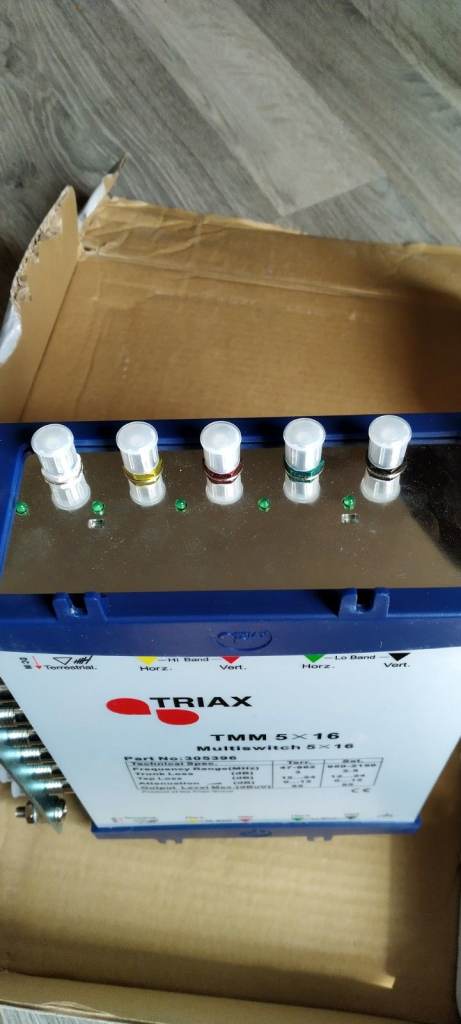

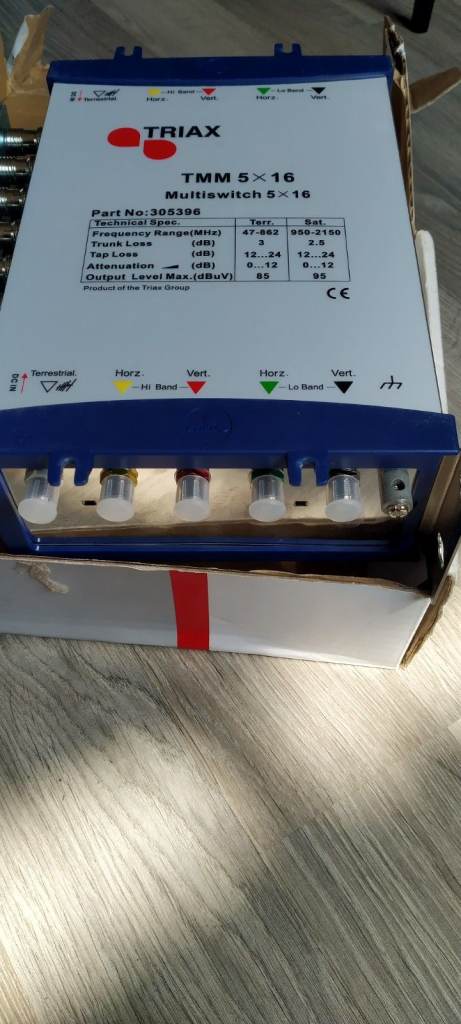

TRIAX TMM 5x16 CASCADE Multiswitch

Description

Brand new TRIAX TMM 5x16 CASCADE Multiswitch for sale.

5 In 16 Out c/w Output Earth Bar Only

TMM 5x16 - Casc. 4SAT+1TER / 16out
Cascade Multiswitch
Main features:
• Fully modular and cascadable multiswitch. It can be used for systems with 1 or 2 satellite positions plus terrestrial.
• 4 satellite IF and 1 terrestrial TV inputs and 16 subscriber outputs
• 4 satellite IF and 1 terrestrial with adjustable level control
• Cable loss compensation with built-in amplification
• Colour coded output connections
• LED power indication on each Trunk line

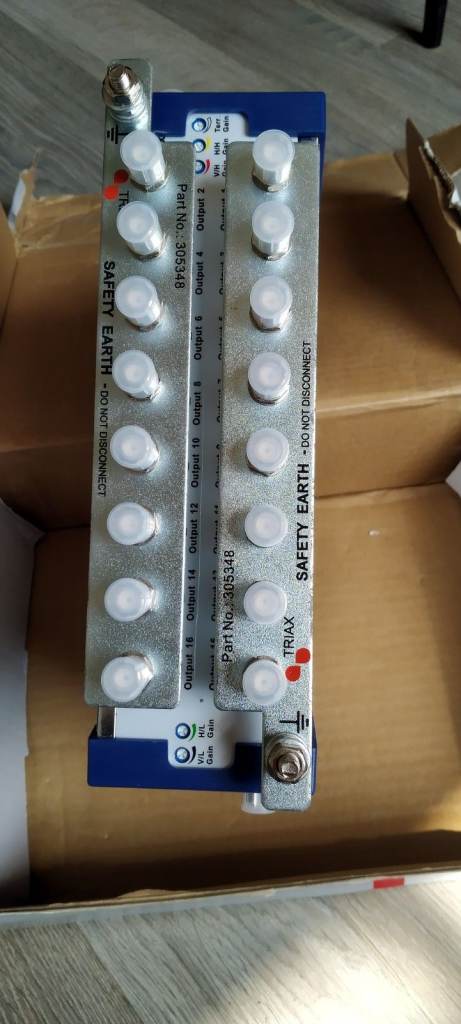

• Supplied with output earth bond bars
Characteristics
Max. input level - SAT (IMD3 - 35dB): 119.0 dBµV
Max. input level - TER (IMD3 - 60dB): 109.0 dBµV
Input polarity gain control TER: 1 x 12.0 dB
Input polarity gain control SAT: 4 x 12.0 dB
Max. output level SAT @ -35 dB IMD3: 95.0 dBµV
Max. output level TER @ 60dB IMD3: 85.0 dBµV
Switch commands: 13V/18V - 13V-22 kHz - 18V-22 kHz
Frequency
Frequency range TER: 47-862 MHz
Frequency range SAT: 950-2150 MHz
Gain
Noise figure SAT: < 8.0 dB
Loss
Through loss - Trunk TER: 3.0 dB
Through loss - Trunk SAT: 2.5 dB
Tap loss TER: 12.0 dB
Tap loss SAT: 12.0 dB
Isolation
Isolation SAT to TER: 30.0 dB
Isolation TER to SAT: 30.0 dB
Isolation cross polarisation H/V: 28.0 dB
Isolation out-out SAT: 30.0 dB
Isolation out-out TER: 30.0 dB
Retuen loss
Return loss SAT inputs: 12.0 dB
Return loss SAT outputs: 12.0 dB
Return loss TER inputs: 12.0 dB
Return loss TER outputs: 12.0 dB
Return loss switch out - SAT: 10.0 dB
Return loss switch out - TER: 10.0 dB
Operational
DC Operating voltage: 15.0 ±1.0 VDC
DC Current consumption (typ.): 105 Typ from Trunk Line mA
Max. current to each output (supplied by set top box): < 250.0 mA
Control LEDs: On Input Ports
Temperature range: 0...50 °C
Connectors
Subscriber outputs: 16
Number of trunk outputs: 4 x SAT, 1 x TERR
Number of trunk inputs: 4 x SAT, 1 x TERR
Number of inputs: 5
Mechanical
Height (mm): 290 mm
Depth (mm): 80 mm
Width (mm): 215 mm
Net Weight: 1.620 kg

No Power supply is included.
