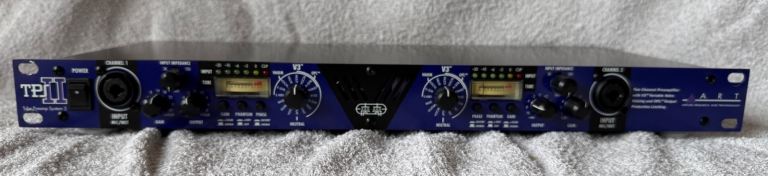

ART TPS II 2-Channel Tube Pre-amp with V3 Presets

Description

The ART TPS II is a two-channel, rack-mountable Tube Preamplifier System designed to add warmth, clarity, and analogue texture to microphones and instruments.

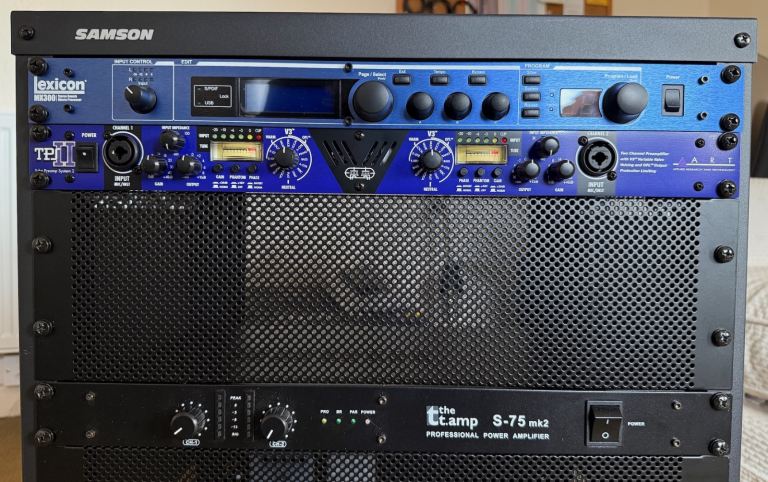

My TPSII is currently housed in a Samson transportable 19” rack, and I have been using it as a stereo guitar power amp in conjunction with my Lexicon MX300 multi-reverb unit and my Thomann t-amp S75. This combination has never been gigged and it is in very good condition, having only had home-use.

Key Features
• Dual Channels : Two independent preamplifier channels featuring hand-selected 12AX7A vacuum tubes.
• Variable Valve Voicing (V3) : 16 distinct presets tailored for different sources like vocals, guitars, bass, and keyboards.
• Variable Input Impedance : Allows you to fine-tune microphone loading to match dynamic, condenser, or ribbon mics.
• Output Protection Limiter (OPL) : Prevents nasty digital clipping by controlling peak output levels.
• Metering : Combines traditional analogue VU meters with LED input level meters for each channel.

Specifications
• Inputs : XLR
• Outputs : XLR, 1/4" TRS
• Input Impedance : 5K ohms, 1M ohm
• Output Impedance : 300 ohms, 150oh
• Maximum Input Level : +19dBu (XLR), +22dBu (1/4")
• Maximum Output Level : +28dBu (XLR), +22dBu (1/4")
• Maximum Gain : 74dB - 80dB
• Frequency Response : 5Hz to 50kHz, +/-.1dB
• Total Harmonic Distortion : <0.01% (Clean), <0.1%(Warm)
• Equivalent Input Noise: -129dBu (A weighted) -105dBu (A weighted
• CMRR : >75dB (Typical @ 1kHz
• Dimensions (HWD) : 1.75” x 19” x 6.5” (4.5 cm x 48.26 cm x 16.5 cm)
• Weight: 5.5 lbs / 2.5 kg

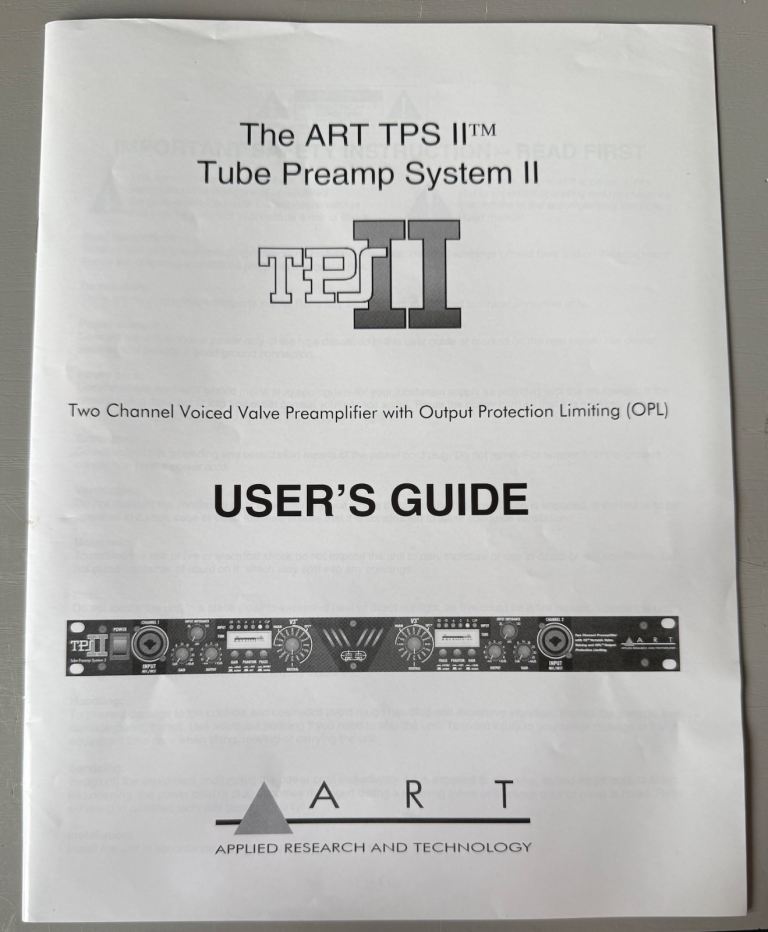

User manual and mains lead included
No box, so pickup only. Sensible offer considered

If you want to buy the ART TPS II, The Lexicon Mx300, the Thomann t-Amp and the rack, I will consider offers around £530
