Jet Axminster JDP15 B Drill press bench mounted pillar drill delivery available

Description

Just arrived into stock

Jet JDP15B pillar drill

As new condition

Collection from NE12 or delivery maybe available

Please get in touch and check out or other woodworking machinery



Heavy-duty drill press developed specifically for wood workshops

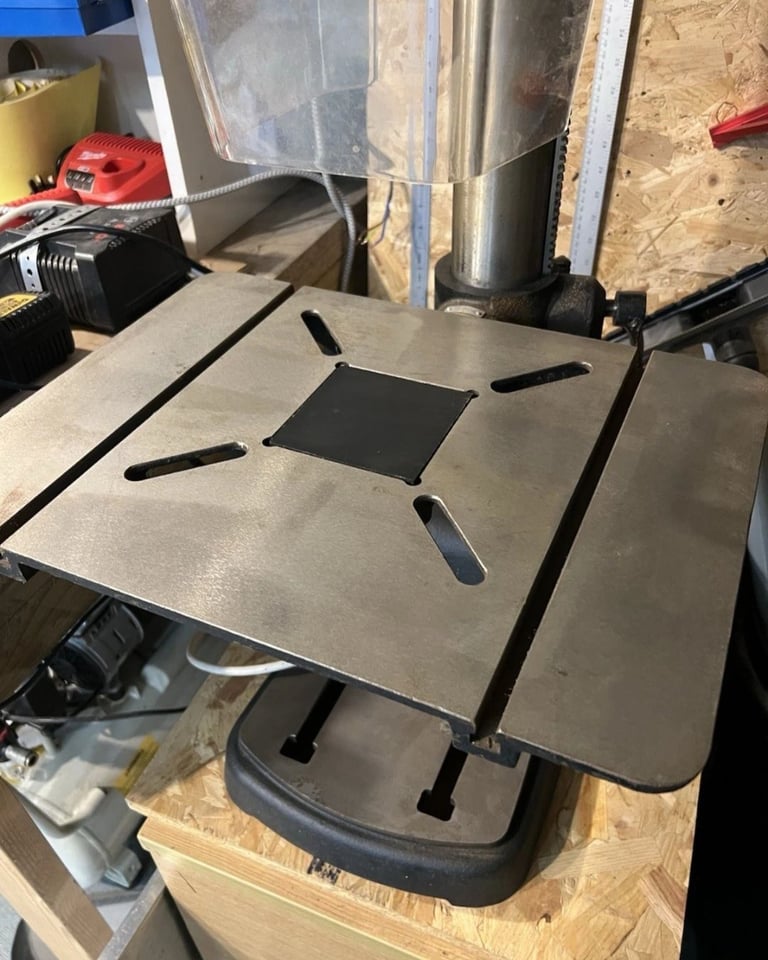

Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
Flat table edge designed for using clamps
Replaceable MDF table insert
Integrated drill depth stop for precision batch tasks

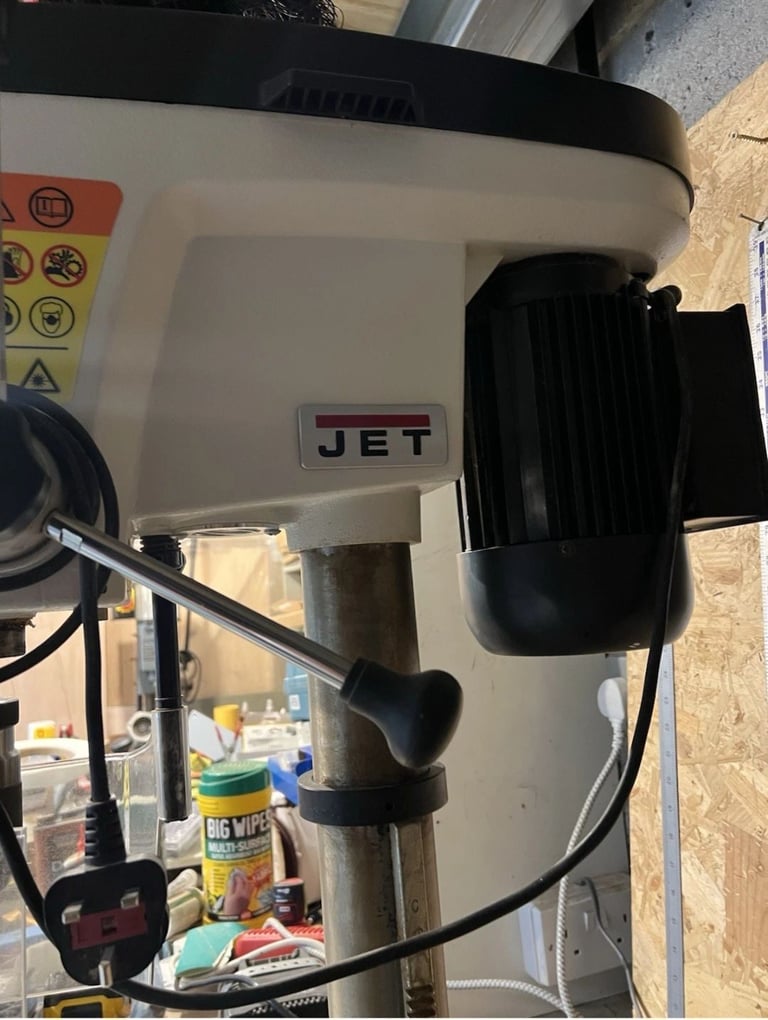

Efficient 1.0kW induction motor and quiet poly-v belt drive
One-handed belt tensioning for fast speed changes
Xacta-X laser system easily identifies the drill center
Integrated long-life LED working lamp prevents shadows
Large cast iron base for high stability

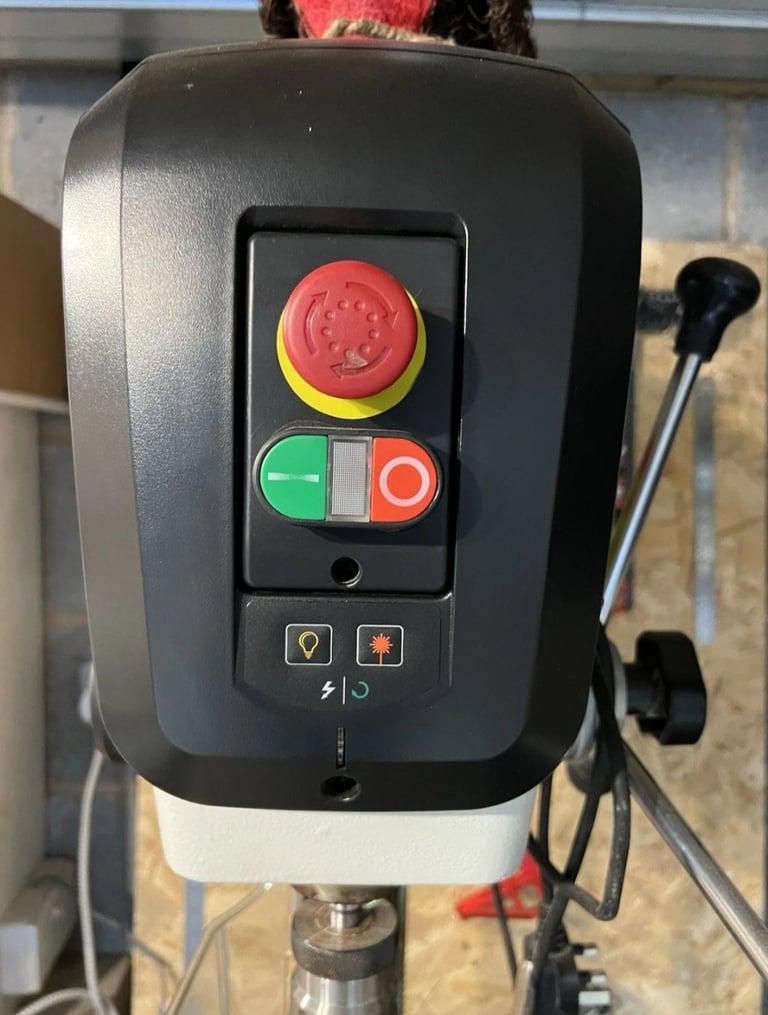

Electric drill chuck protector, belt guard protection and emergency stop as standard


Technical details

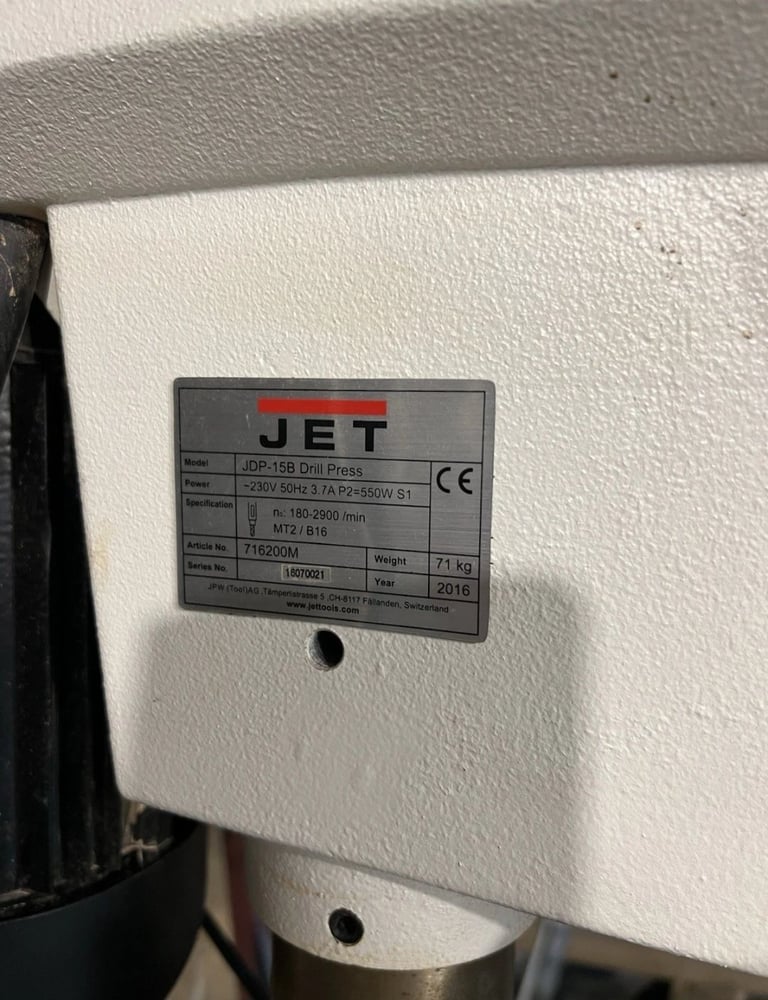

Motor (V/kW): 230/1.0
Spindle speed range (rpm): 180 – 2'900
Number of spindle speeds: 16
Spindle fixture: MT2
Spindle travel (mm): 80
Distance spindle to column (mm): 190
Spindle distance to table (max., mm): 470
Spindle distance to base (max., mm): 680
Table size (mm): 320×454
Table tilt; 90° left/90° right
Miter t-slot/distance (mm): 13/270
Column diameter (mm): 73
Dimensions (mm): 723×483×1'115
Weight (kg): 71

Specification
Motor KW: 230/1.0
Spindle Travel: 80
Spindle Speed Range: 180 – 2'900
Spindle Feeds: 16
Table Size: 320×454
Dimensions L x W x H: 723×483×1'115
