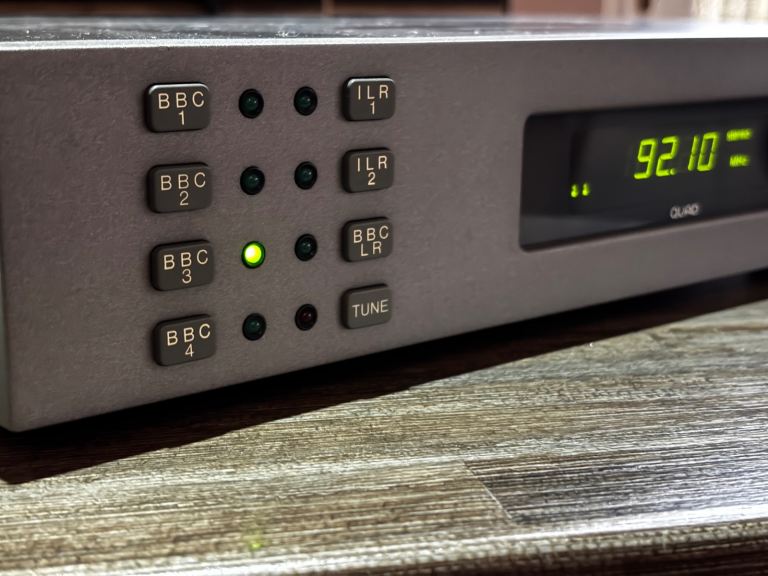

Quad FM4 tuner

Description

Quad FM 4 tuner

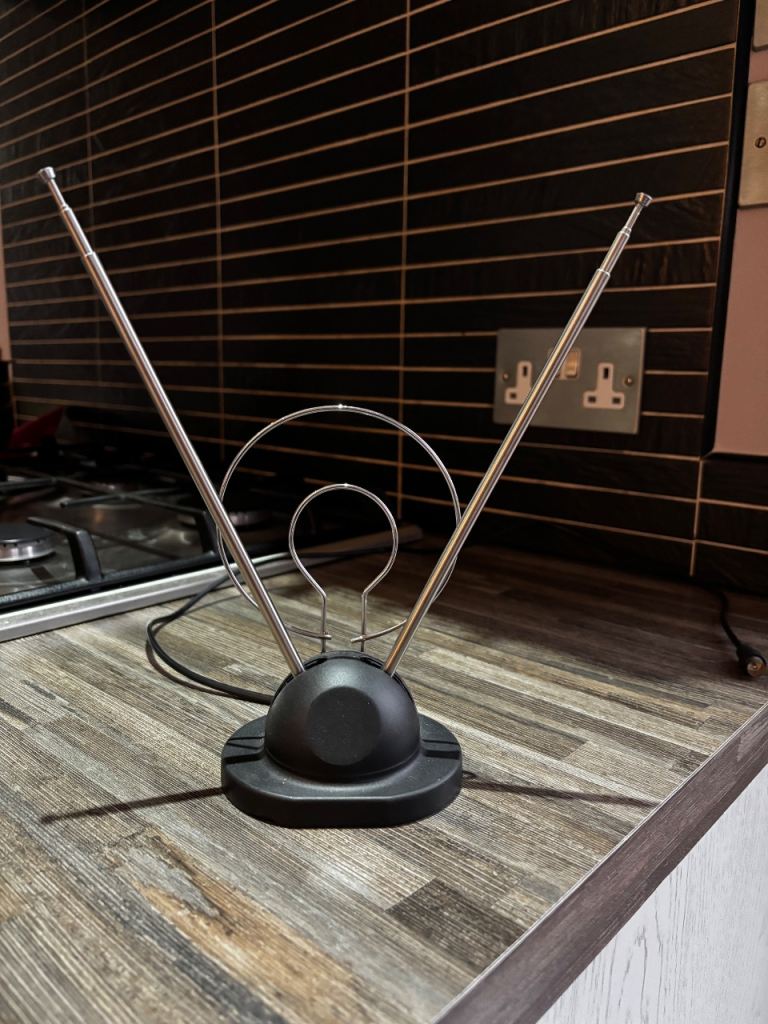

Legendary Quad tuner in full working order. Complete with IEC mains lead and an indoor aerial.

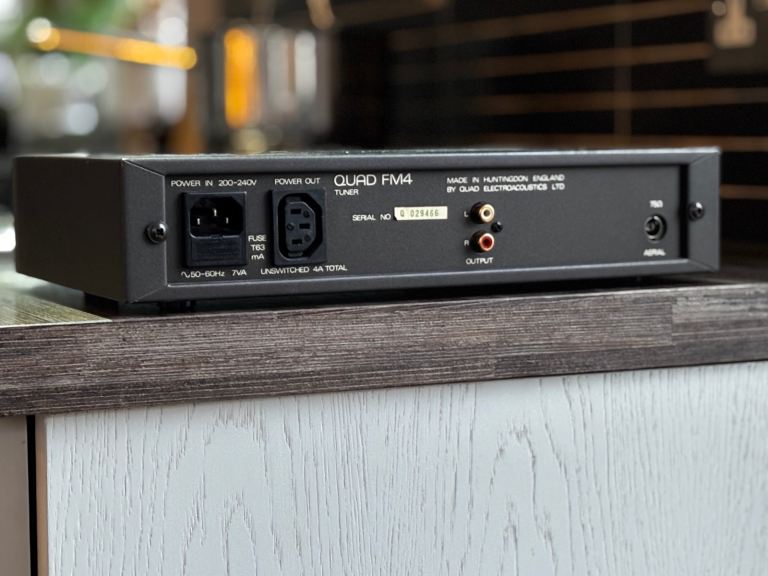

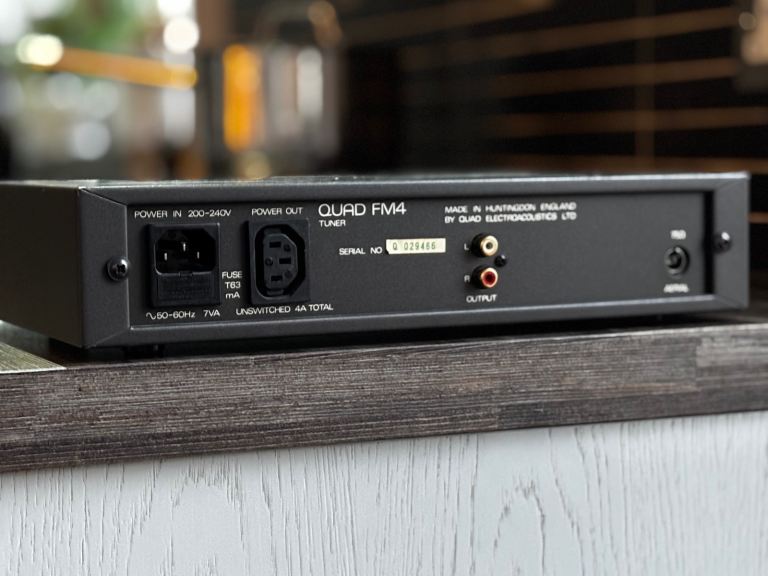

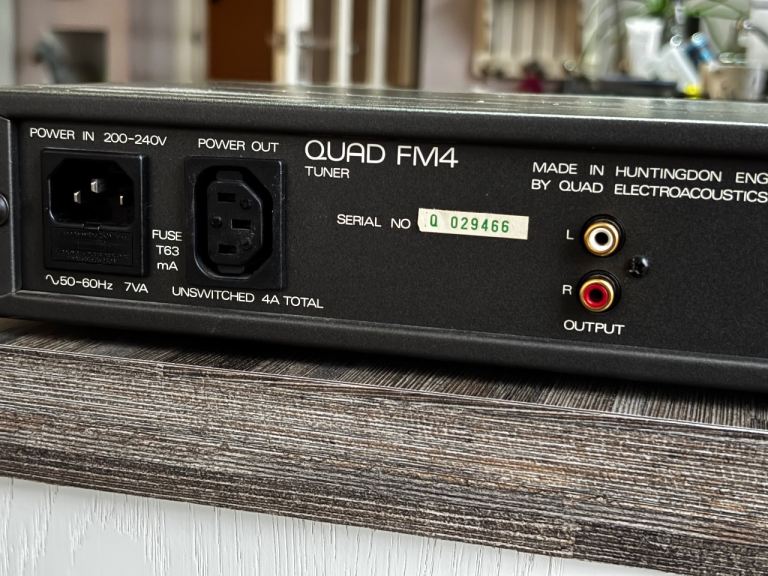

The tuner also has a handy IEC mains out for powering other components from one socket.

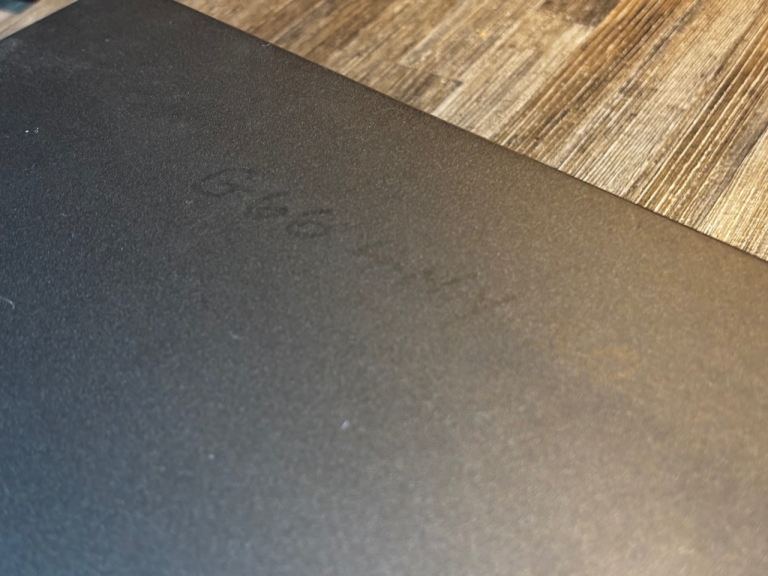

The previous owner has security marked the top of the casing with their post code, barely visable but just to let you know, I have photographed this for completness.


Type: Mono/Stereo FM tuner (FM only)

Tuning Range: 88–108 MHz

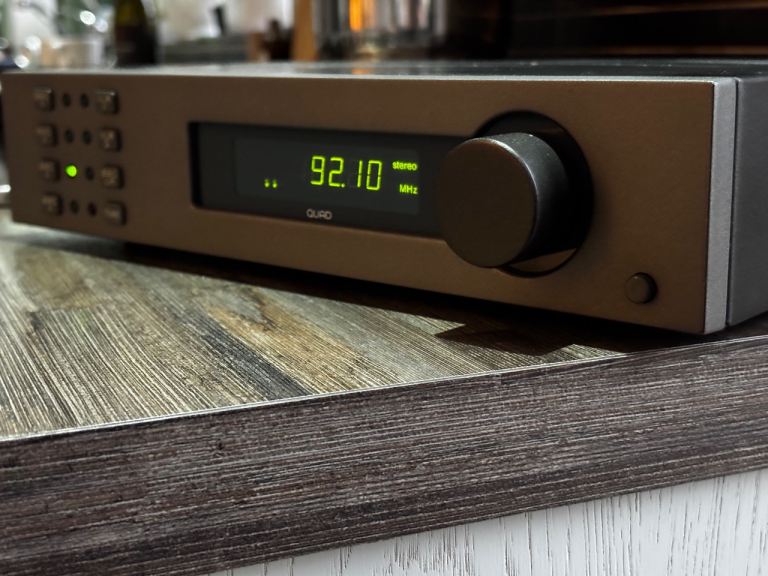

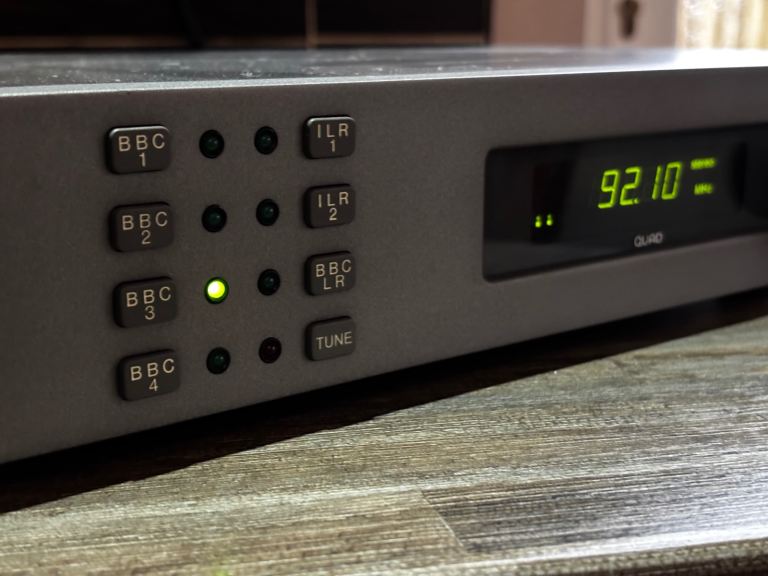

Tuning Scale: Digital display with manual tuning and 7 station presets

Sensitivity:

Mono: 1 μV (1.2 dBf) for 30dB quieting

Mono: 2.7 μV (8–10 dBf) for 50dB quieting

Stereo: 25 μV (28–29 dBf) for 50dB quieting

Signal-to-Noise Ratio: 76 dB (mono), 70 dB (stereo)

Distortion:

1 kHz, ±75 kHz deviation: 0.15% (mono), 0.15% (stereo)

1 kHz, ±25 kHz deviation: 0.05% (mono), 0.10% (stereo)

Selectivity: 53 dB

Capture Ratio: 1.5–2.5 dB

IF Rejection: 100 dB

AM Suppression: 60 dB

Image Rejection: 80 dB

Pilot Tone Suppression: 60 dB

Crosstalk: 40 dB at 1 kHz

Frequency Response: 20 Hz–15 kHz (+0, –1 dB)

Output Level: 100 mV (30% modulation)

Source Impedance: 100 Ω

Recommended Load: 20 kΩ or greater

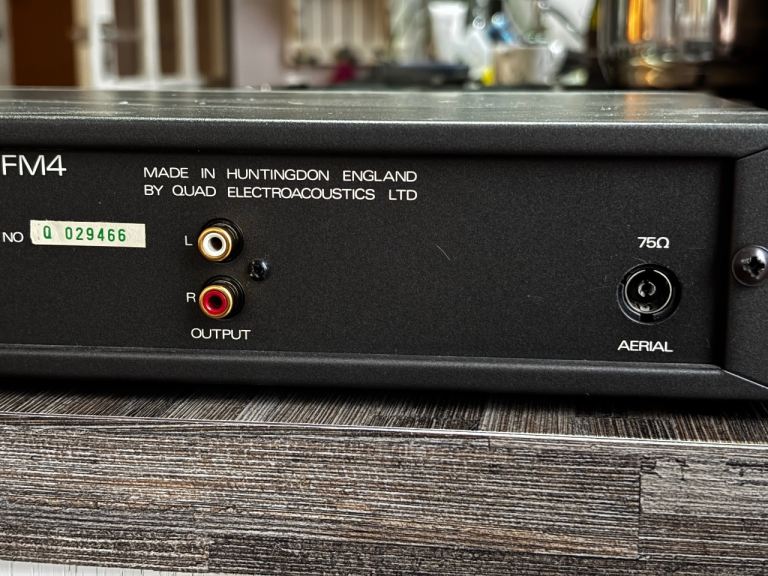

Aerial Input: 75 Ω (unbalanced, coaxial recommended)

De-emphasis: 50 μs or 75 μs (region dependent)

Power Input: 100–127V or 200–250V AC, 50/60Hz (switchable)

Power Consumption: 6 VA

Dimensions: 321 x 64 x 207 mm (W x H x D)

Weight: 3 kg
