VK-FTL Automatic Flat Top Labeling Machine For Bottle Caps Stand-up Pouch Doypack Plastic Bags

Description

This labeling machine is used to stick self-adhesive sticker on the flat suface of objects like pouches, bottle caps, paper boxes. It has high working speed, it can label 60-150 pieces/min.This label applicator is suitable for daily chemical, cosmetics industries.

This machine is suitable for labeling self-adhesive stickers or film on the upper surface of various articles, such as books, folders, boxes, cartons, etc. This machine can be equipped with a date coder which can be used to code production date or number,helps you reduce production cose.

Description

This top side labeler is a machine used in the packaging industry to apply labels to the top of products, such as bottles or boxes. It can handle a wide range of label sizes and shapes, and is equipped with sensors and can be customized according to products to ensure accurate labeling. This type of labeler is commonly used in food and beverage, pharmaceutical, and cosmetic industries, and can greatly increase efficiency and accuracy in the labeling process.

Main Feature

▶ Suitable for sticking labels on the top side of products like bottle caps, pouch, boxes
▶ Working height can be adjusted according to operation need

Parameter

Model: VK-FTL
Voltage:220V1.5KW50/60Hz
Speed:60-150Pcs/min
Suitable width of labeling object:≤180mm
Label height:15-200mm
Label length:25-300mm
Label accuracy:±1%
lnner diameter of label roll:76mm
outer diameter of label roll:350mm
Machine size:2800x1100x1700mm (L*W*H)
Net weight:About 180kg
Package size:2160x970x1840mm (L*W*H)
Package weight:About 277kg

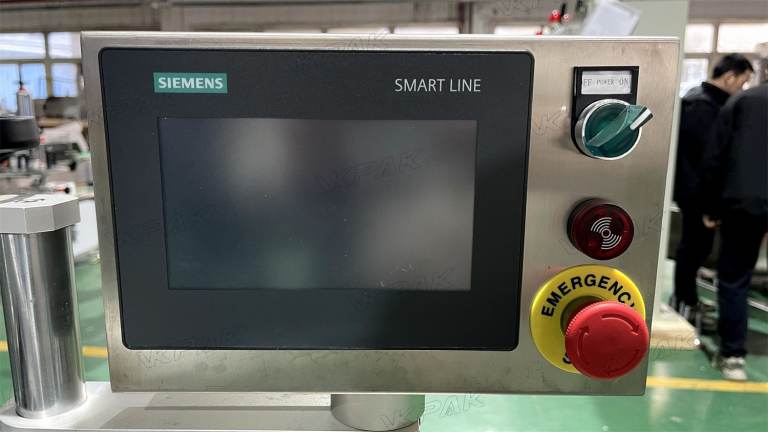

The touch screen control panel, this can help to watch working status in real time, visual working data is more direct and convenient to adjust the machine. Different kinds of operation language can be customized as needed.

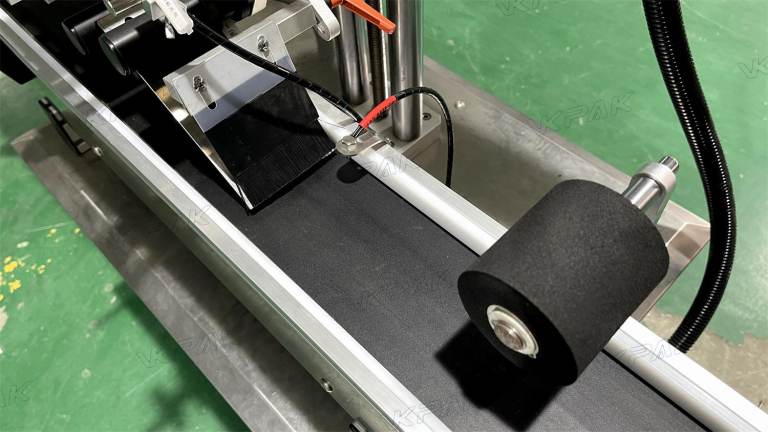

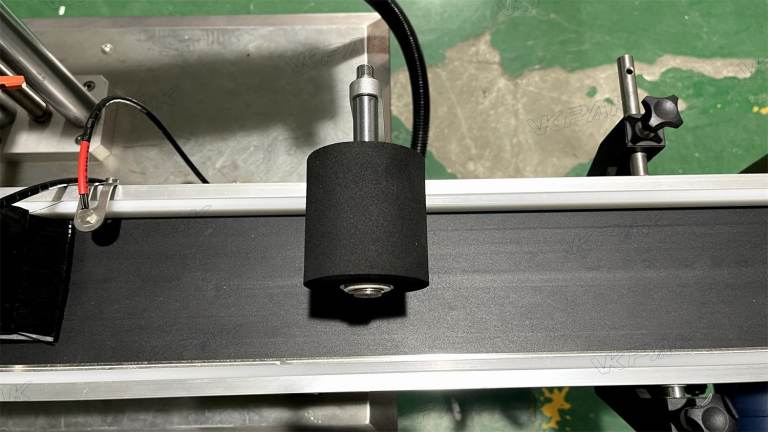

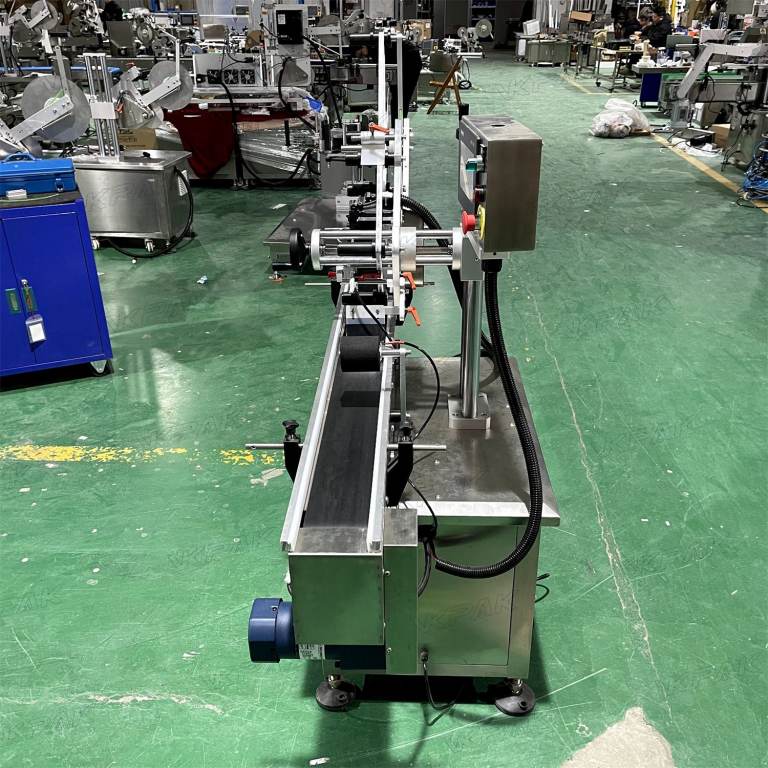

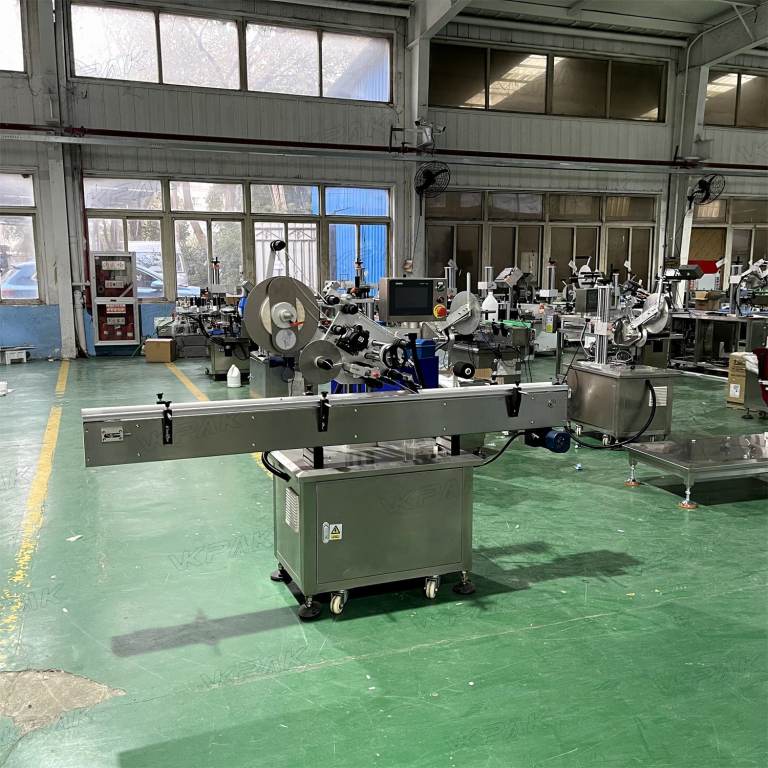

The labeling machine is designed for top side labeling. It is suitable for sticking labels on flat surface like bottle caps, pouch. The brush can ensure there is no bubble under stickers, improves production quality.

Extra date coding machine can be bought separately to print batch number or production date. With this, it can save working labor and improves working capacity.

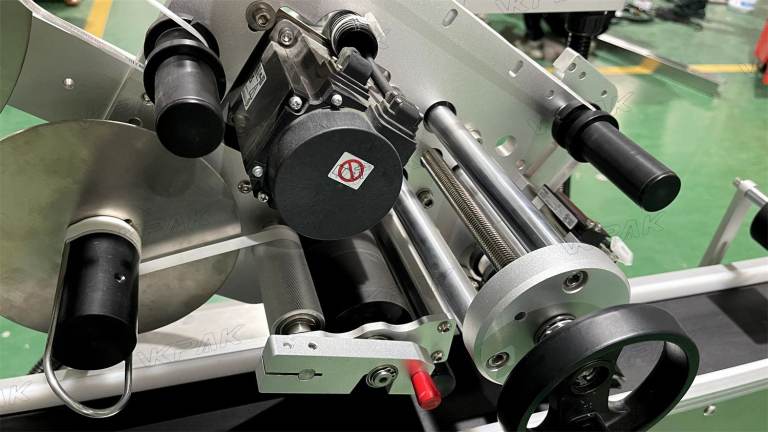

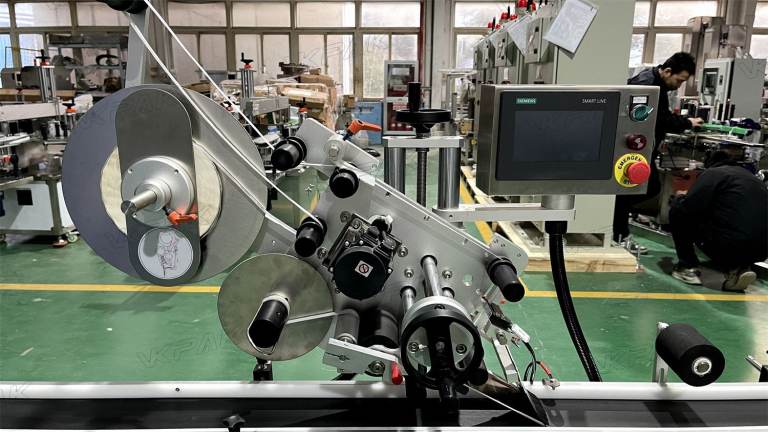

The combined adjustment component can precisely adjust the position of the labeling structure to ensure that the label can be accurately attached to the product, and the adjustment is simple and easy to operate.

Equipped with high quality electric eye, it can detect passing by labeling objects and control the machine to work automatically. The senistivity of electric eye can be adjusted according to labeling object, it ensures the working accuracy.
