27.5inch 1500W 48V Ebike Conversion Kit, Rear Wheel, LCD Display 35mph + with battery

Description

**Brand New**

27.5inch 1500W 48V Ebike Conversion Kit, Rear Wheel, LCD Display 35mph + with battery




High power electric bike conversion kit is capable of accelerating to the off-road speed 35mph. The kit comes with a speed limiter to set at 250 Watt . Silent motor with 50N/m torque.


The conversion kit is compatible with Disc and V brake and comes with SW900 LCD display allows you to restrict or derestricted your speed between 15mph to 35mph. Just set up the speed you need and motor will cut off when you reach your desired set speed.


The conversion kit is the best quality and relative low weight, the motor is sleek and silent making it easy to pedal even without power.


Key feature:


* 48V W1500 super power brushless gearless hub motor with 35A controller.


* Adjustable 5 level intelligent pedal assist with thumb throttle


* LCD display shows battery level and pedal assistance settings, speedometer, odometer, wattage, speed setting etc.


* Brake Levers cut off the power supply to the motor safely.


* High Efficient pedal assist sensor


*bike rear dropouts - 135mm width



Main technical parameters of the controller：


1. Rated voltage：DC36v/48v/52v


2. Rated current：12-20A;


3. Maximum current：25-35A;


4. Rated power：250-1500


5. Maximum power: 1500;


6. Static power consumption：<50mA;


7. Driving mode square wave;


8. Waterproof basic water protection to IP64


9. This kit has two Blue wires which when connected together restricts the bike to 250w and when disconnected will run at W1500



The kit includes everything you need (except battery) and is easily installed to your bike following the instruction manual provided. Basic tools and mechanical knowledge will be required



pedal assist system is included in the package however it is also a comfortable and fun ride when used without as a twist and go. We recommend the 48V to maximise riding experience.


The power settings are easily adjusted to suit rider capability. Due to the high power capabilities of the motor this item is for off road use only.

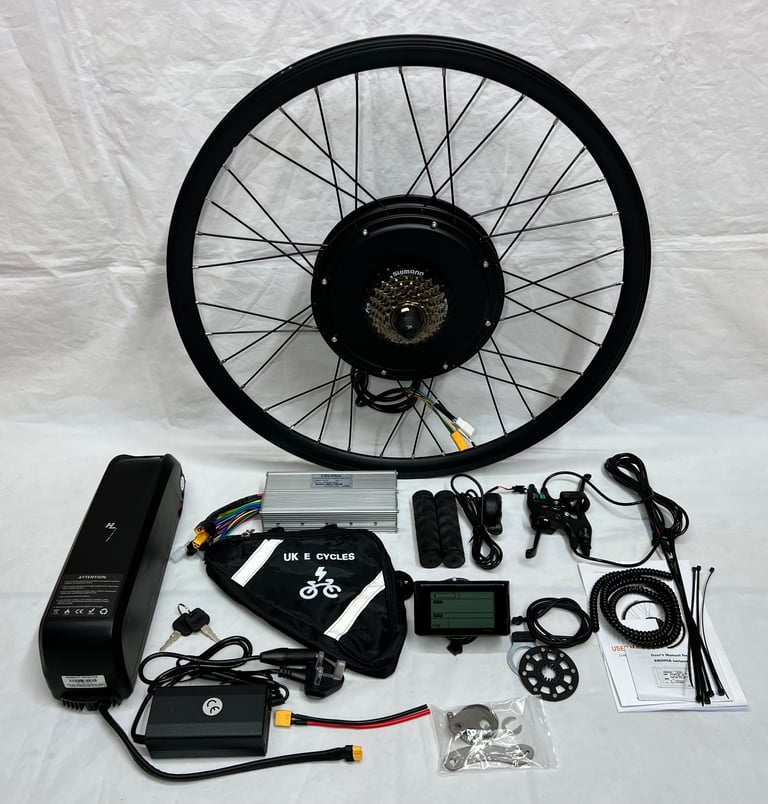

Package Includes:

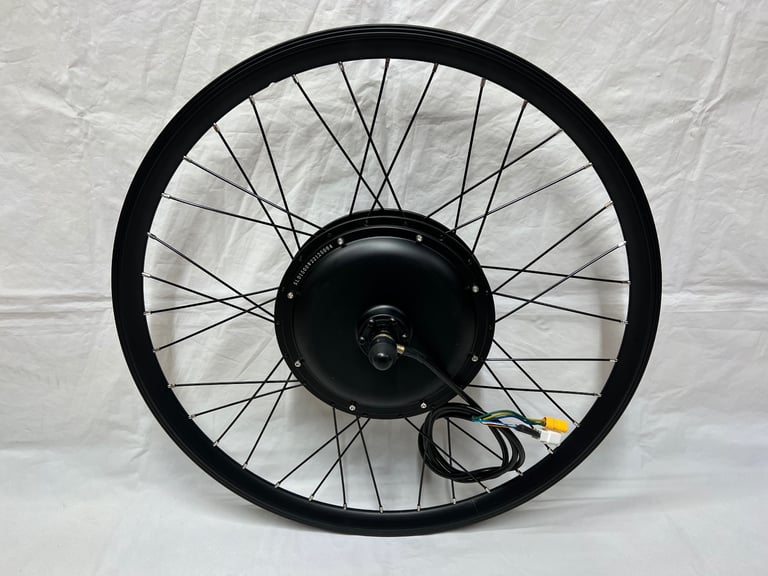

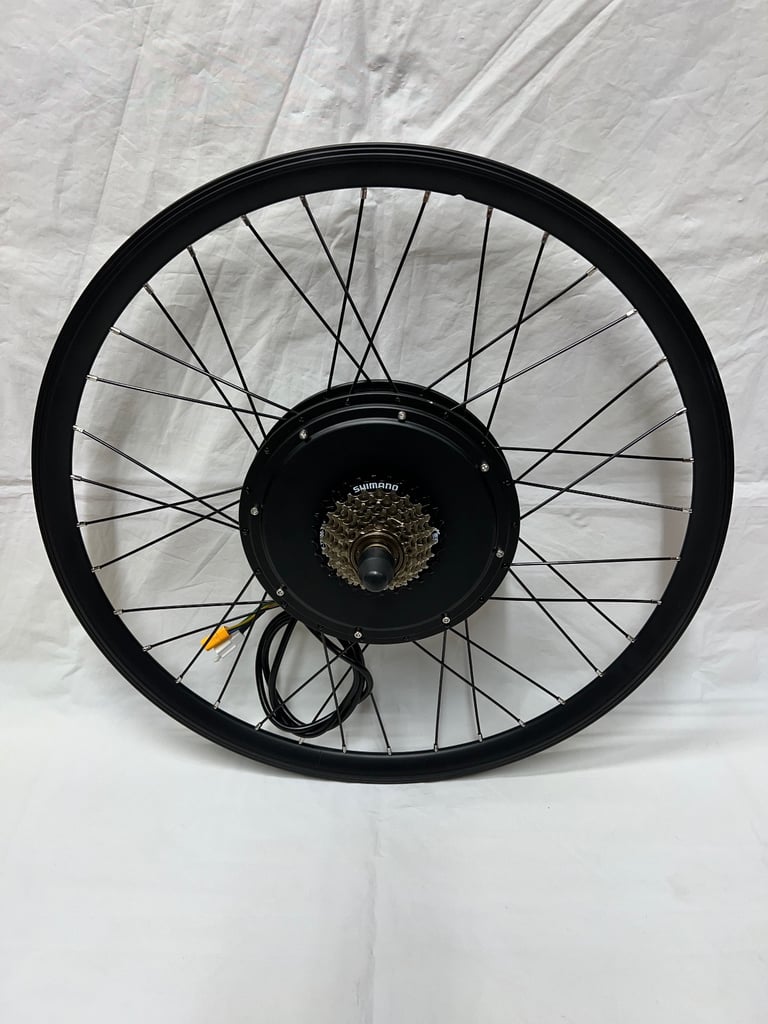

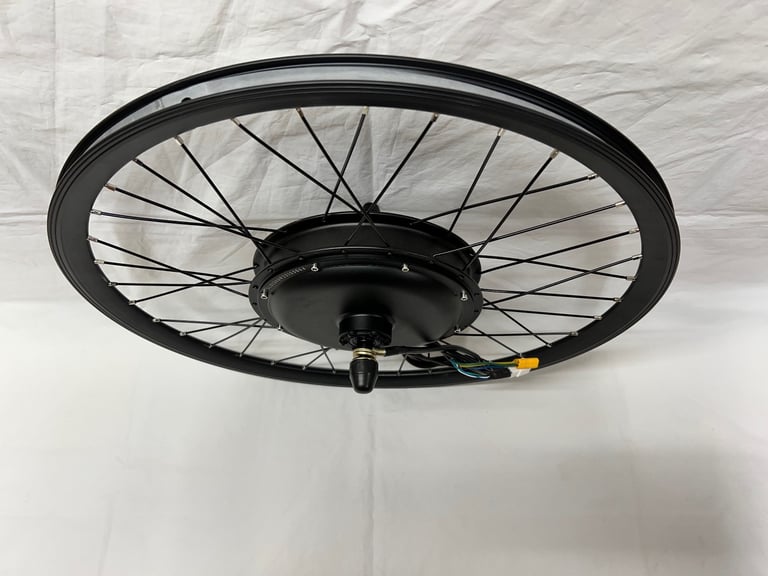

1x wheel with W1500 motor


1x 7 speed shimano cassette


1x 35A controller


1x Pedal Assist Crank Sensor


7x Cable Ties


1x Thumb Twist Throttle


1x Pair of Brake Levers


1x LCD Meter - SW900


6x Disc screws


1x controller bag


1x rim tape


1x Pair of grips


1x torque arm


1x 48v 14ah battery


1x 2a battery charger




WHAT SIZE KIT DO I NEED?



If you look on your tyre's, this will tell you if your bike has 26", 27.5" or 29" wheels. Alternatively you can look up your bike's make and model online. Remember that a 'wheel' is a rim and a tyre together, our kits will not equate to the stated size until a tyre is fitted. Our kits are only compatible with mountain bike tyres



We have other wheel size’s available please see our other listings



Spun-out wheels, accidental and intentional damage are not covered under warranty

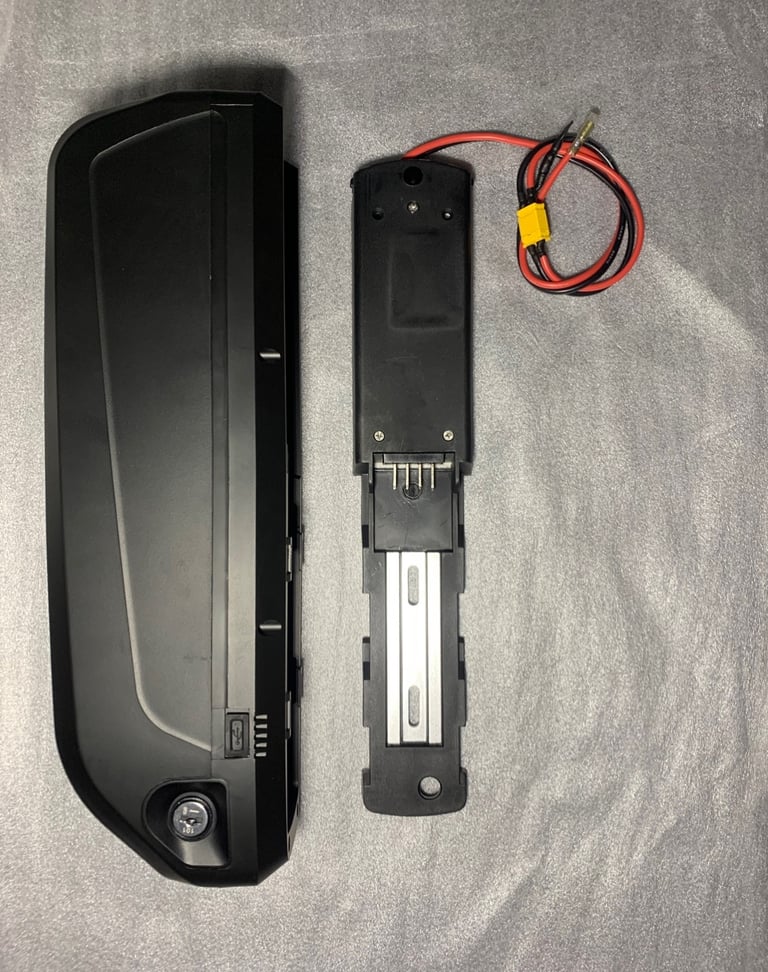

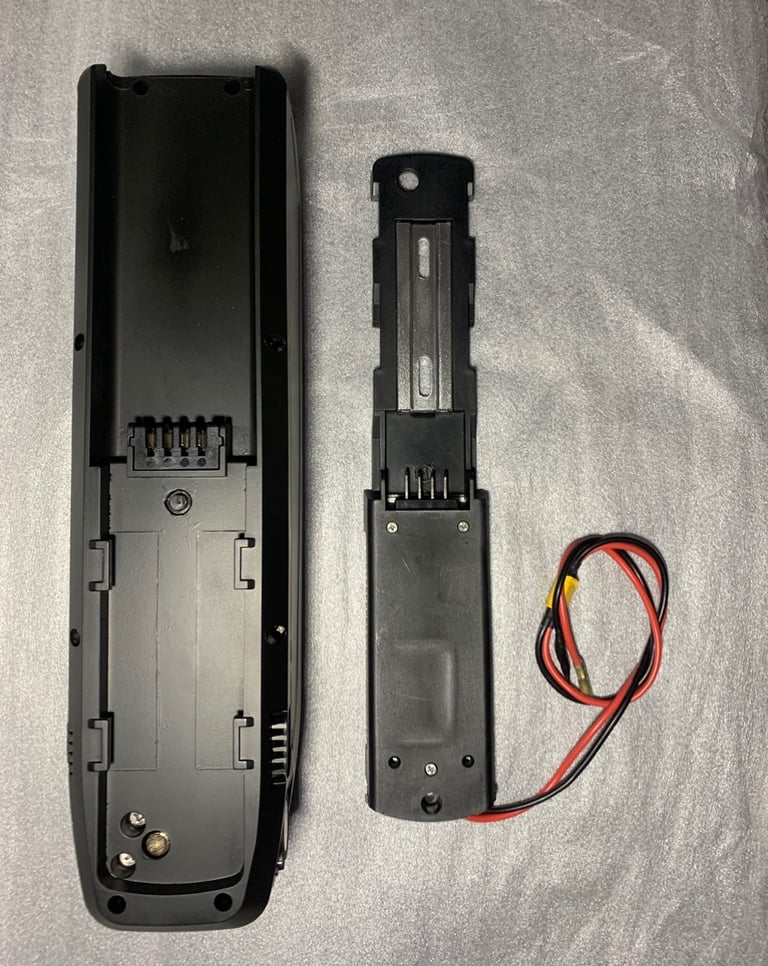

48v 14ah Li-ion Ebike Battery Electric Bike with 2a charger



1. New slim hailong style Case


2. Waterproof and Solid plastic Case


3. Lighted battery LED power Indicator


4. Convenient Charge Port


5. Lock with Keys securely locks the mount on bike frame




Parts included:


1. Lithium Battery pack


2. Built-in BMS board



Charge Mode CC-CV


Charge Time under Standard Charge Current 6 hours




Charge Temperature Range -20-55°C




Comes complete with charger , keys and mounting plate



Easy to Fit, Attaches to standard water bottle cage



Storage and Maintenance



When the battery pack to be long-term stored, charge the battery pack to about 50%



capacity( after discharging completely, charge for 2 - 3h at 2A),store in dry and ventilated



place, charge 1 to 2 hour for every 3 months.



The battery pack and charger should be stored in clean,dry and ventilated place, avoid



contacting with corrosive materials and be away from fire and heat.



In the maintenance process, please do not disassemble the battery pack, forbid to remove any cell in the battery pack.
