Posting for 5+ yearsLarge Carbon Fibre Vacuum Table – 8.47m x 3.58m
Poole, Dorset
£26,495
1 of 10
Description

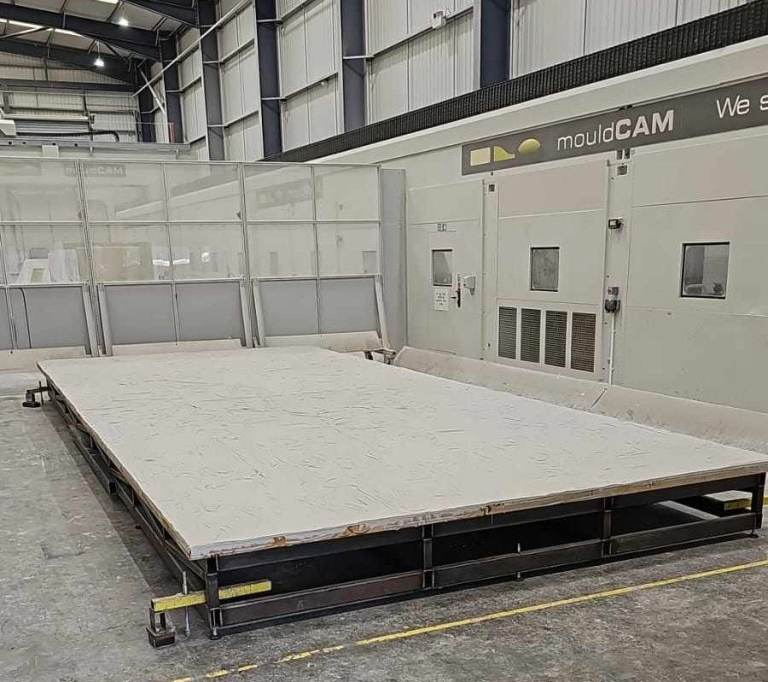

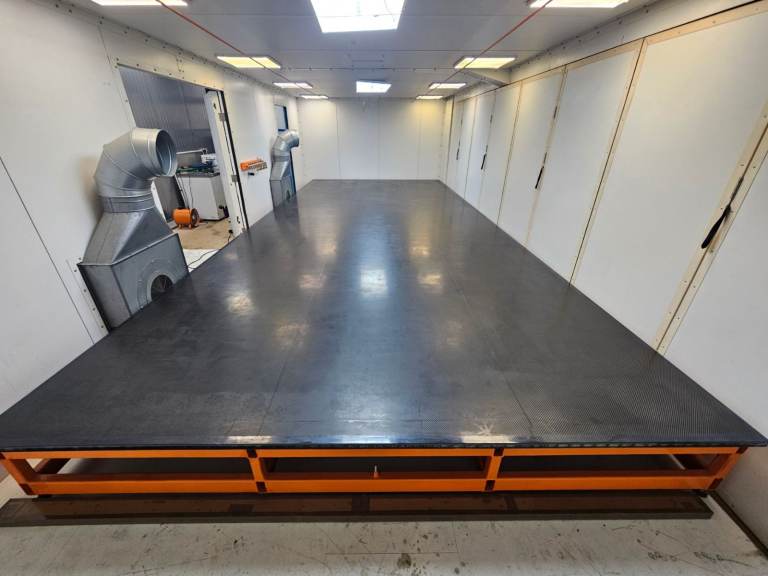

Large Carbon Fibre Vacuum Table – 8.47m x 3.58m
High-spec composite vacuum table suitable for large-scale carbon fibre production.
Dimensions:
8.47m x 3.58m
500mm height
Construction:

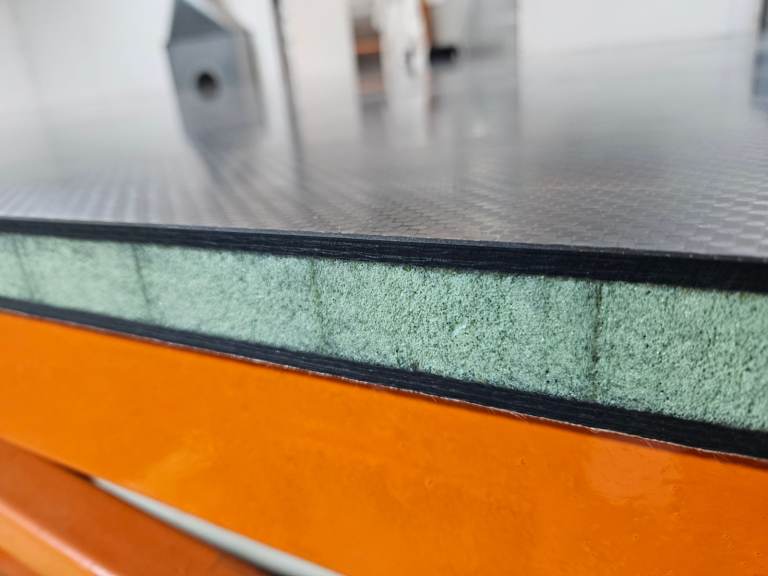

- Infused carbon fibre panel
- Approx. 5mm carbon fibre each side of 25mm PET core
- Infused with quality Sicomin epoxy resin
- Post-cured to 120°C. Tg: 125°C
Base & Structure:

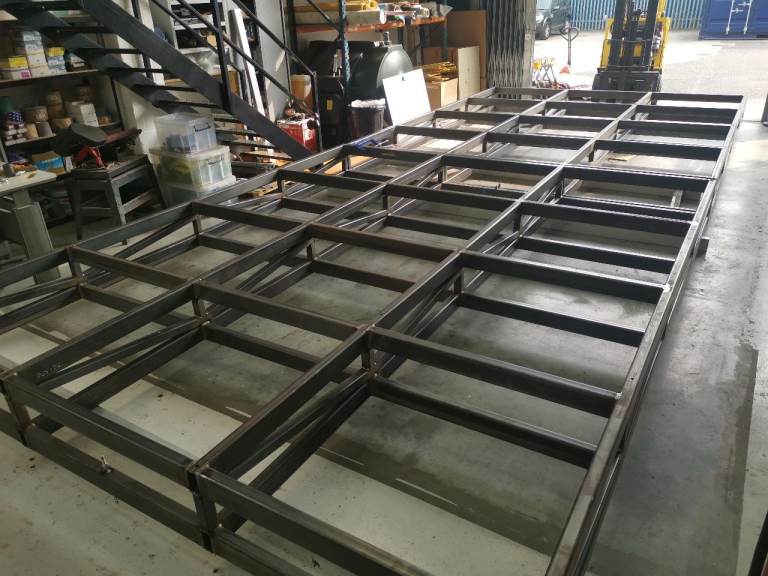

- Heavy-duty steel base constructed from substantial 5mm box section
- Approx. 1500kg weight (Steel only)

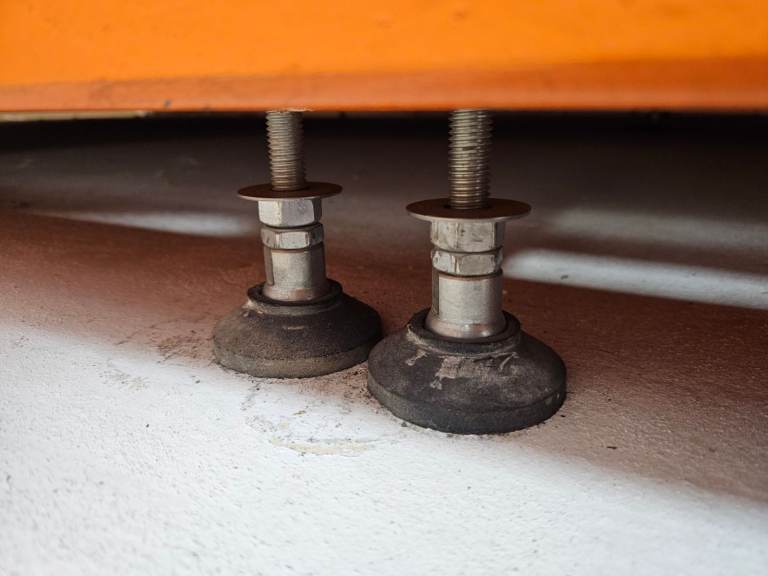

- 16 adjustable levelling feet

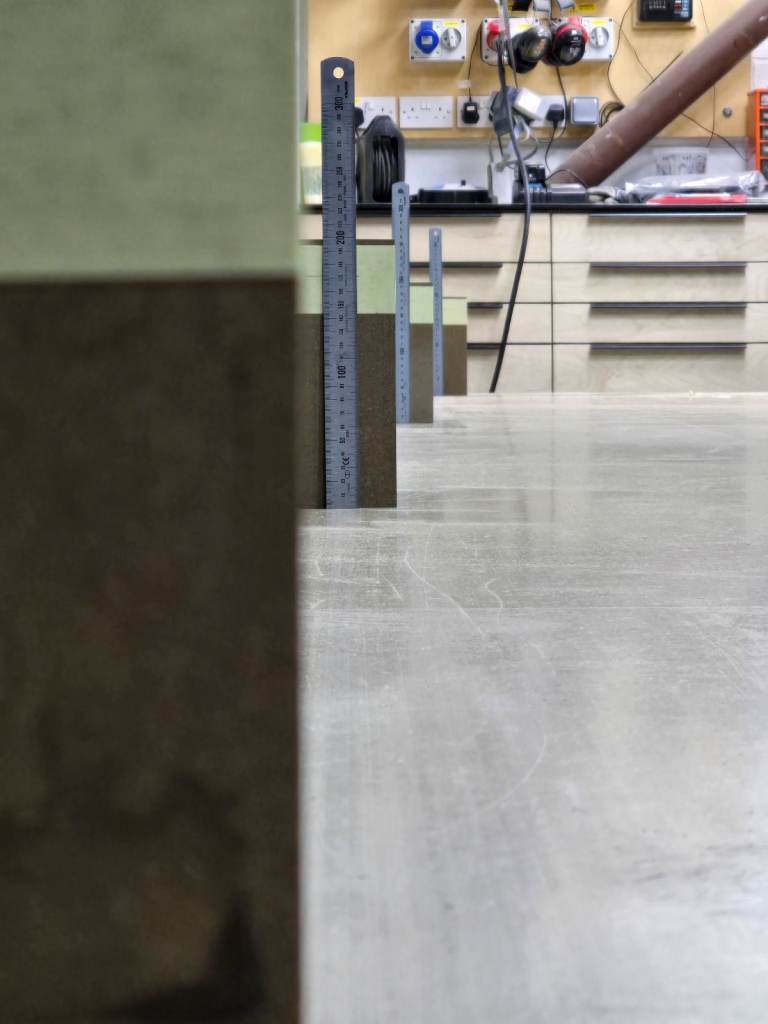

- Can be levelled to <0.5mm across full surface
- Levelled using a dumpy/optical level
- Extremely rigid and dimensionally stable. Ideal for high-quality composite part production where flatness and thermal stability are critical.
Serious enquiries only. Viewing available by arrangement.
Can arrange delivery UK wide
Located BH16 6LS
Cost is +VAT
