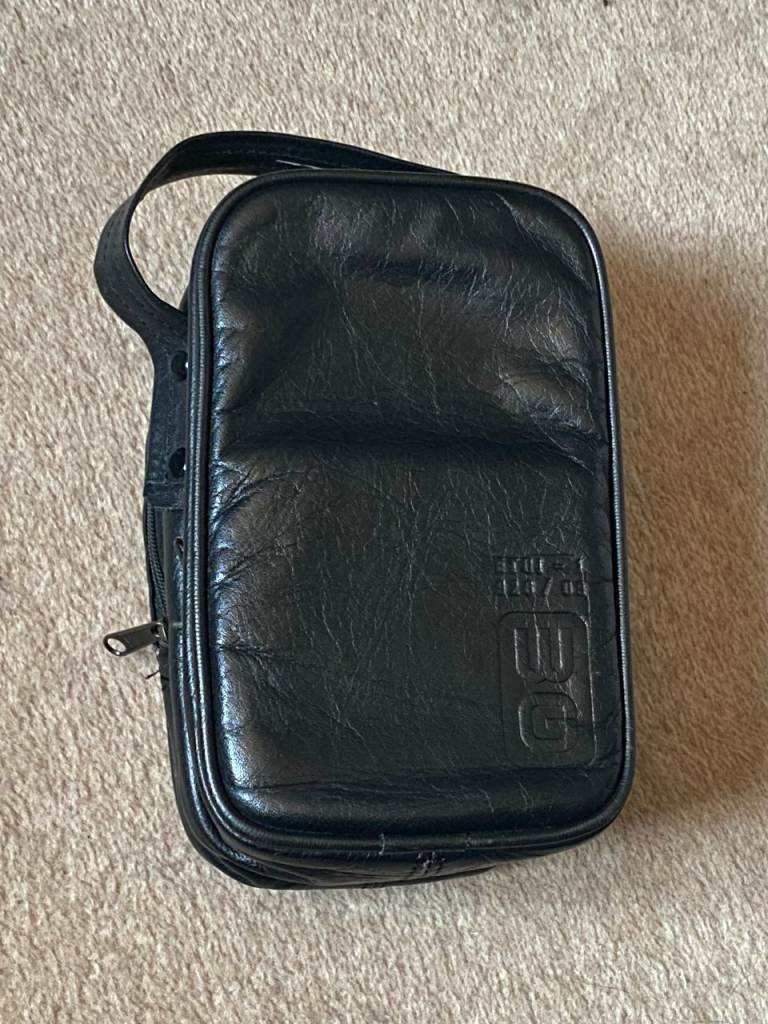

Wandel & Goltermann PM-10 BN820/01 Digital Level Meter, Professional Telecom/Audio Test Equipment #2

Description

Wandel & Goltermann PM-10 BN820/01 Digital Level Meter - Professional Telecom/Audio Test Equipment #2

[Condition]
- Condition: Pre-owned but fully working condition
- Collection from London W5 3SB or shipping with £4 charge

[Overview/Summary/Key Features]

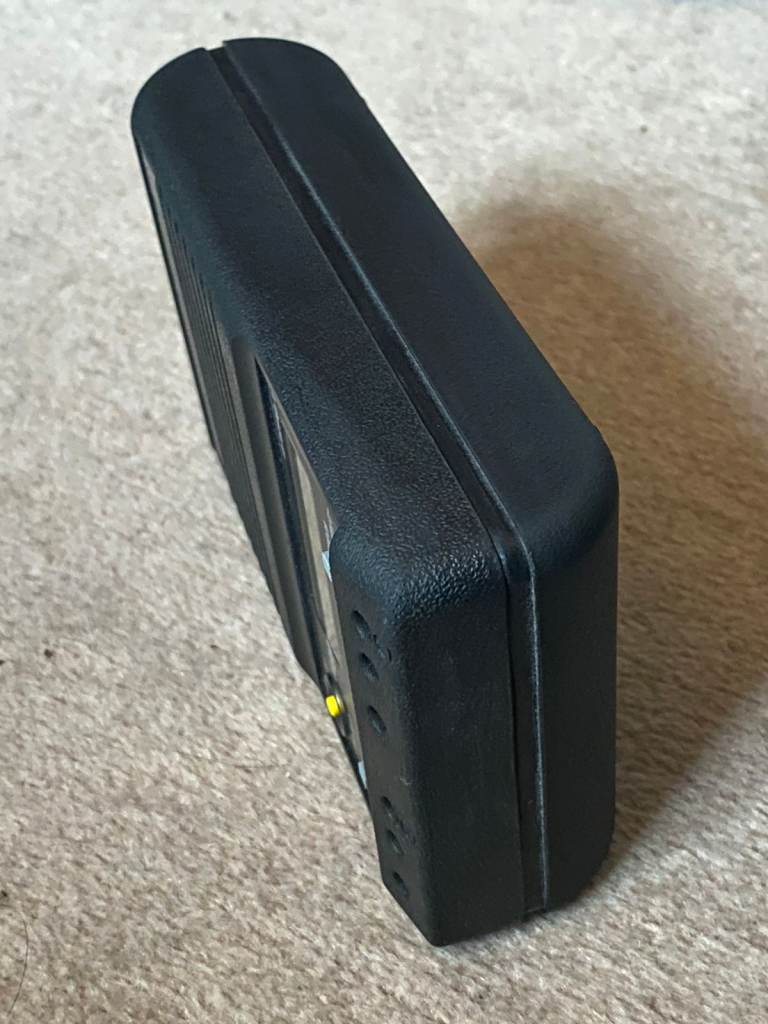

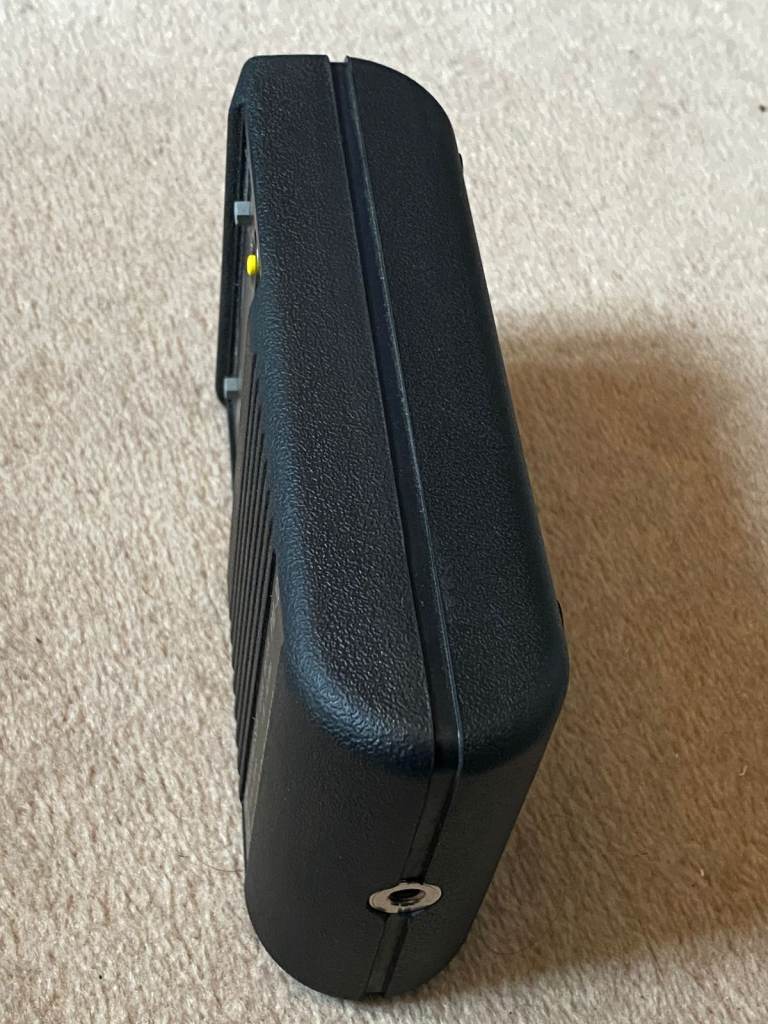

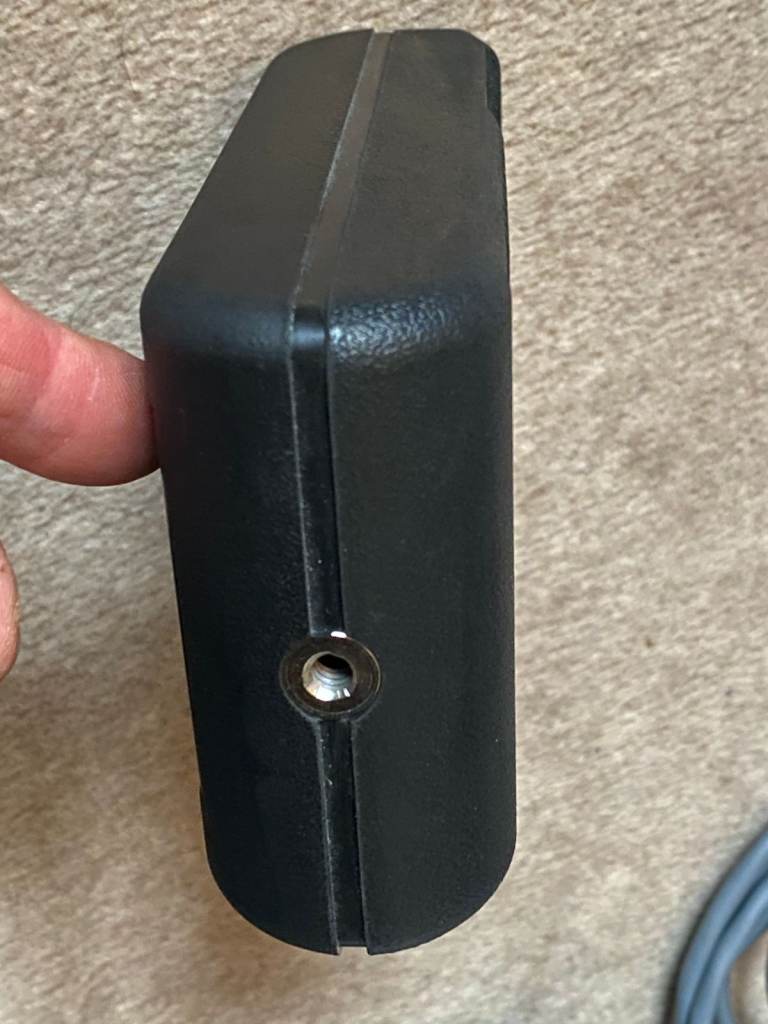

This is a well-maintained, professional-grade Wandel & Goltermann (W&G) PM-10 Digital Level Meter (BN820/01). W&G is a renowned German brand known for producing robust, high-precision test and measurement equipment.

The PM-10 is a dedicated tool for broadband level measurements on analogue telephone and audio channels, operating over a frequency range of $80\text{ Hz}$ to $20\text{ kHz}$. It's primarily used by telecommunications engineers, PABX technicians, and audio specialists who require accurate signal level analysis in dBm.

- Function: It is designed for broadband level measurements on telephone and audio channels.
- Frequency Range: The level meter operates within a frequency range of 80 Hz to 20 kHz.

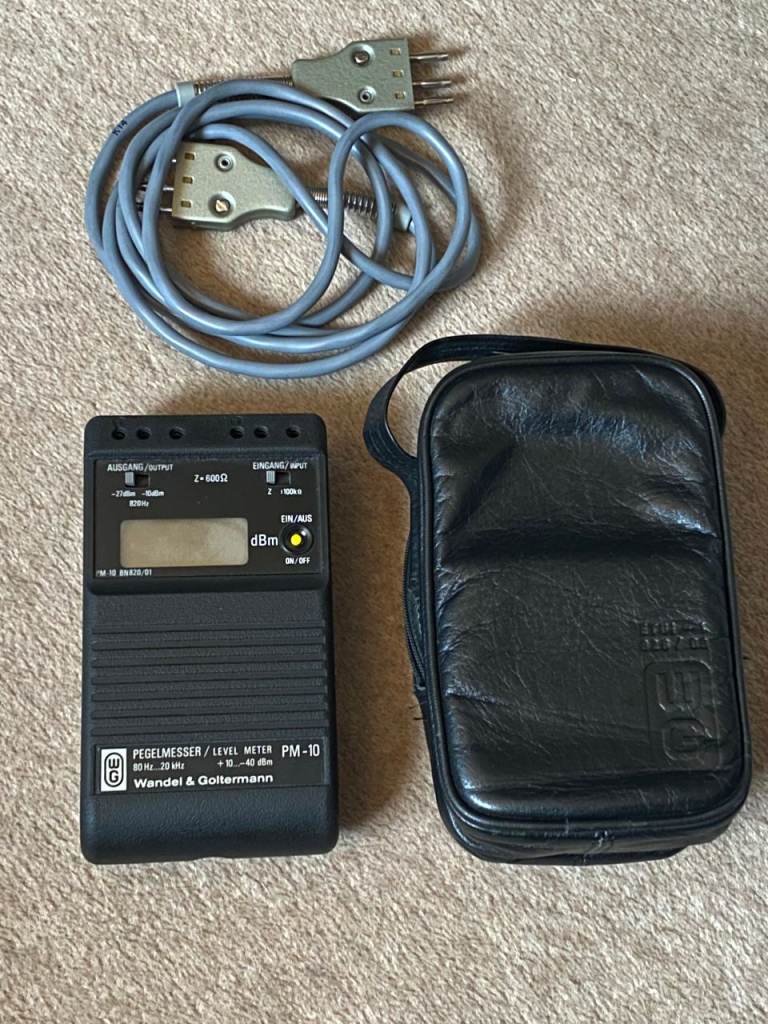

- Level Range: It can measure levels from -50 dBm to +10 dBm. The text on the device indicates a specific range of +10...-40 dBm.
- Built-in Generator: The PM-10 model includes an integrated signal generator that outputs a signal at 820 Hz with selectable levels of -10 dBm or -27 dBm.
- Impedance: It has an input impedance of 1 MΩ and an output impedance of 600 Ω.
- Power: The unit can be powered by a dry battery or a rechargeable Ni-Cad battery. To conserve battery life, it features an automatic switch-off circuit that activates after approximately 5 minutes of operation.
