Axminster evolution series carbide tipped woodturning chisel system lathe wood turning

Description

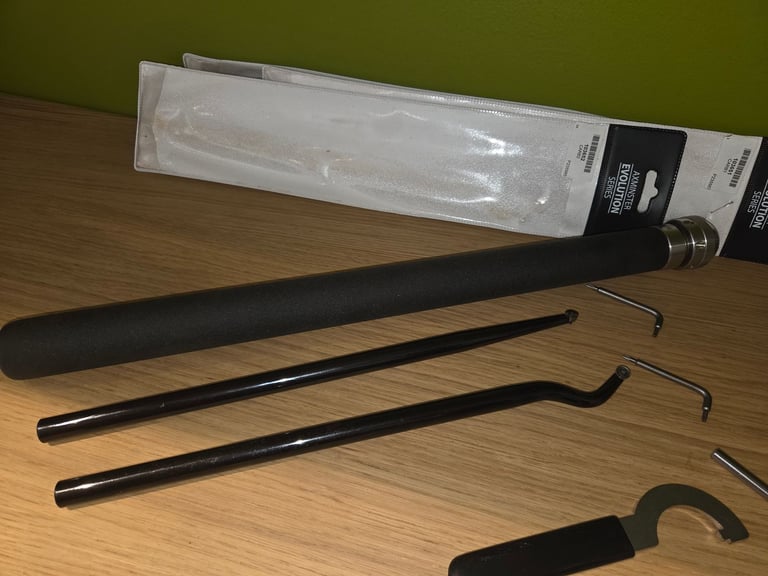

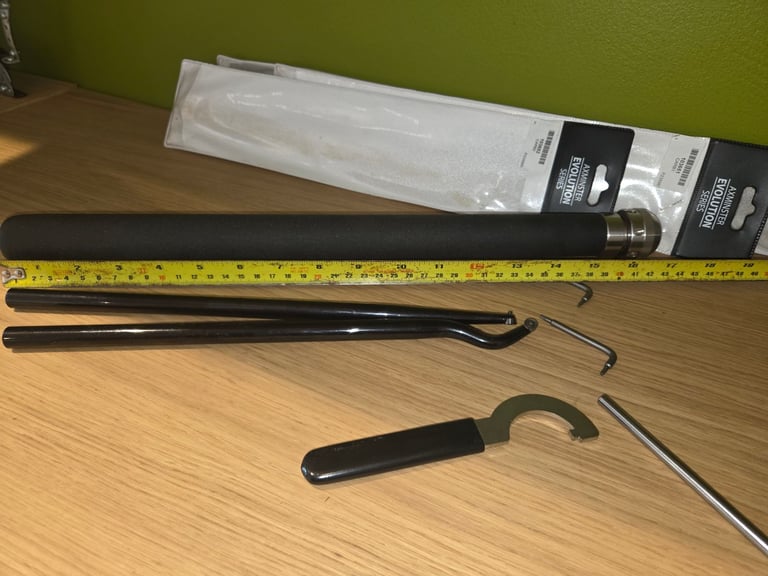

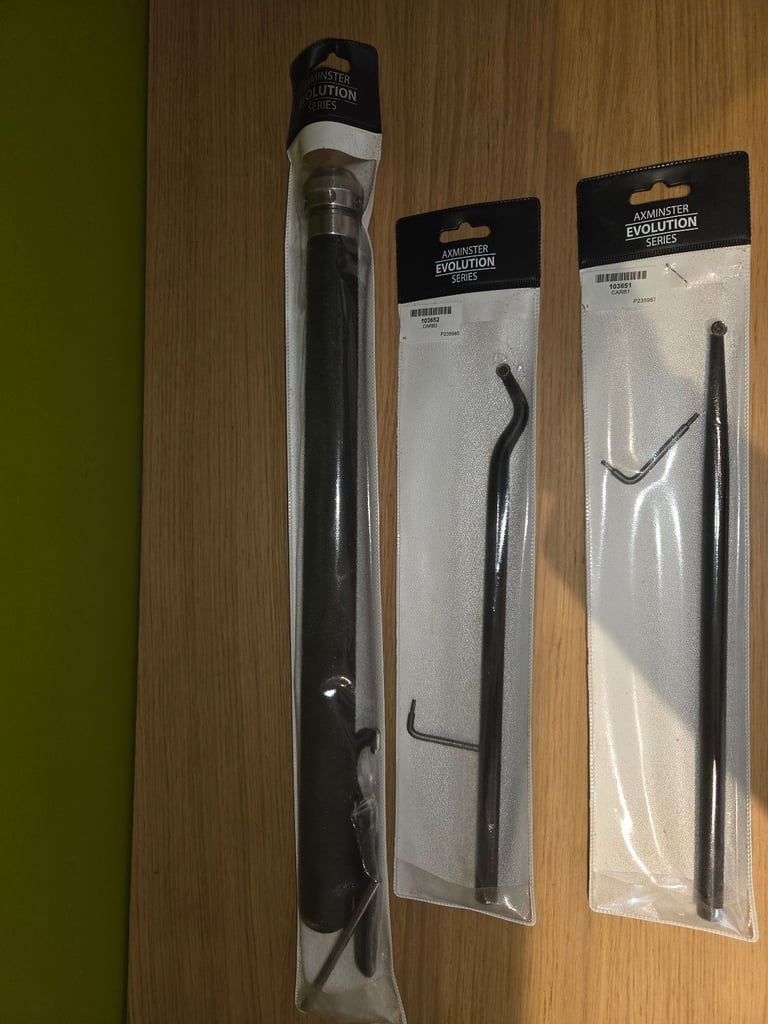

Axminster evolution series Woodturning system

As new condition
Long handle
Swan neck hollower chisel
And straight chisel
Carbon tipped

Also takes the crown system insert which i have listed

Collection from NE12 or I can post for £6.70 royal mail 48hrs tracked

Please check out my other stock for sale by clicking on sellers details

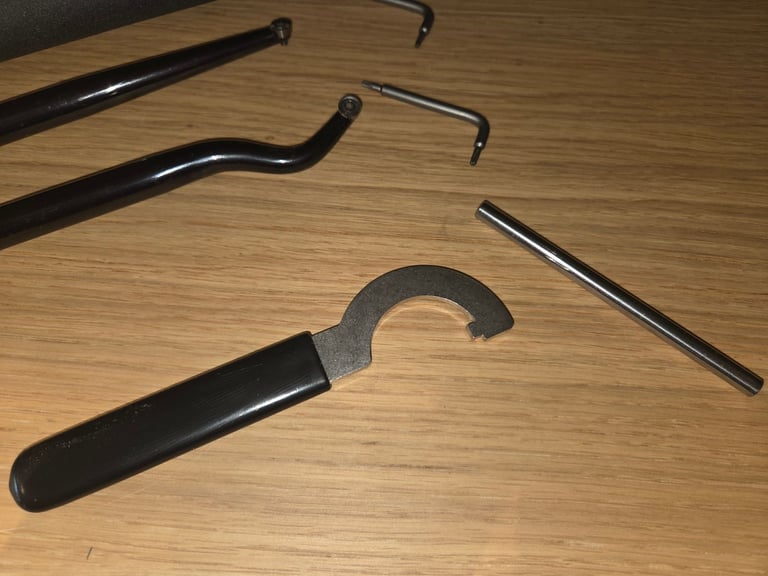

This Axminster woodturning handle is the long version with an overall length of 440mm (17.1/4"). (Short version 104151). The aluminum shaft has a comfortable medium/hard foam covering. The aluminum shaft adds mass, making the turning process much smoother. The covering is durable, comfortable and gives a positive non-slip grip while you are turning. The business end has a 12-13mm ER20 collet, which firmly grips onto a 12.7mm(1/2") diameter round bar. Originally intended for use with 12.7mm double-ended turning gouges, you can of course grip any turning tool whose bar diameter is between 12mm and 13mm. ER20 collets do not lock up like conventional collets. They are interchangeable; if you need to grip a different diameter bar, then you only need purchase a suitable size ER20 collet. These are available in sizes 2mm to 13mm in 1mm increments. The collet nut has a fine thread, producing a secure grip even when tightened by hand alone. The Axminster Woodturning Handle includes a C-spanner and tommy bar to release the nut if required.

Swan neck official description
Axminster Evolution Series probes have 12.7mm (1 /2") diameter shanks, designed to fit into the Axminster Evolution Series woodturning handle. Axminster Evolution Series probes are particularly well suited to hollowing boxes, small hollow forms and goblets and useful when turning small bowls or platters.

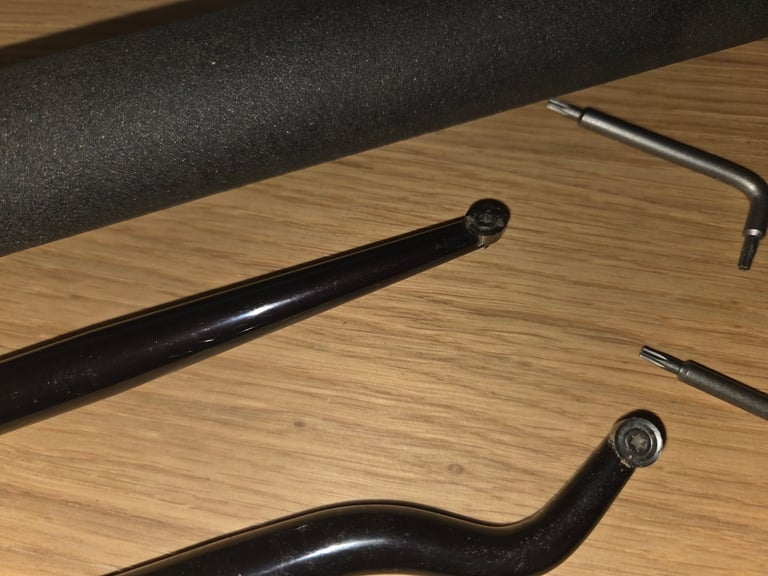

The cranked probe allows you greater access when undercutting inside a hollow form, as with a vase for example. The tip is a fine grade, solid tungsten carbide, cup shaped, circular cutter, 8mm in diameter. The tungsten carbide cutter is sharp and ready to use, and will retain its sharp edge far longer than any HSS tool. The great advantage comes when the cutter eventually begins to lose its edge. Then you simply slacken the retaining screw and rotate the cutter slightly to give you a new sharp edge. With a full 360° available, these cutters have a greatly extended working life. Replacements are readily available. The cutters can take a clean shaving and leave a very smooth surface straight from the edge.

Each probe includes a torx wrench for the fixing screw.

Straight official description
Axminster Evolution Series probes have 12.7mm (1/2") diameter shanks, designed to fit into the Axminster Evolution Series woodturning handle. Axminster Evolution Series probes are particularly well suited to hollowing boxes, small hollow forms and goblets and useful when turning small bowls or platters.

The straight probe has a 300mm long shank with the last 75mm tapering to the cutting tip. The tapered end allows you greater access. The tip is a fine grade, solid tungsten carbide, cup shaped, circular cutter, 8mm in diameter. The tungsten carbide cutter is sharp and ready to use, and will retain its sharp edge far longer than any HSS tool. The great advantage comes when the cutter eventually begins to lose its edge. Then you simply slacken the retaining screw and rotate the cutter slightly to give you a new sharp edge. With a full 360° available, these cutters have a greatly extended working life. Replacements are readily available. The cutters can take a clean shaving and leave a very smooth surface straight from the edge.

Each probe includes a torx wrench for the fixing screw.

Posted: 12 days ago

Ad ID: 1505524268
