Rockford Fosgate Power TM1000X5AD Amplifier

Description

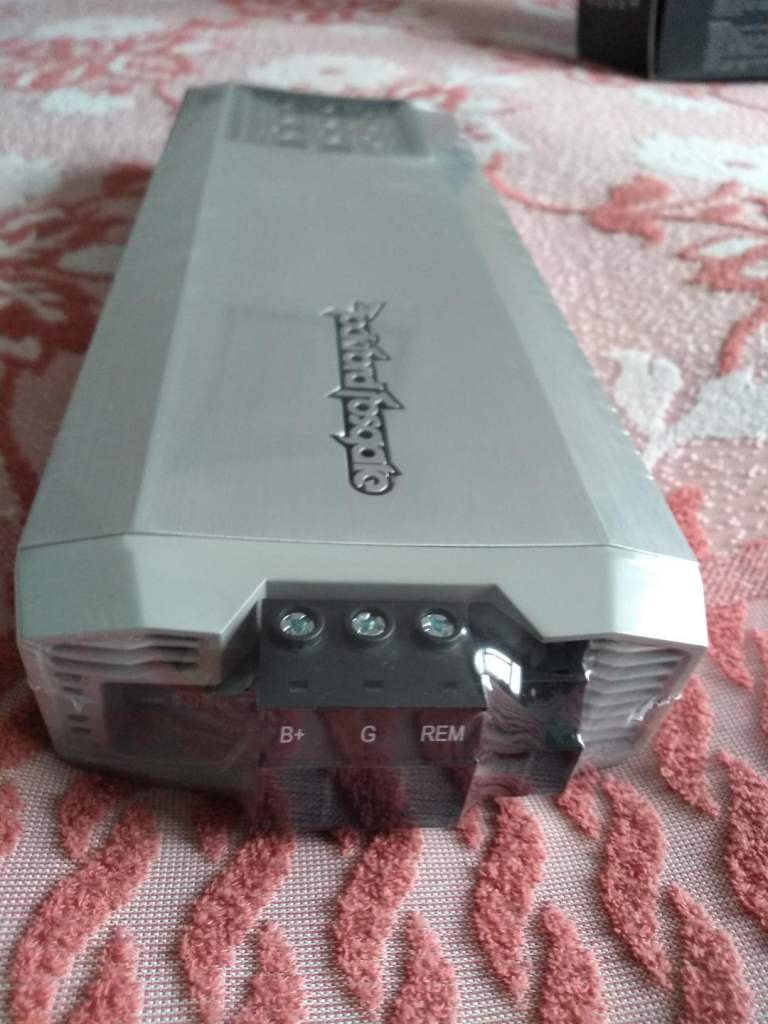

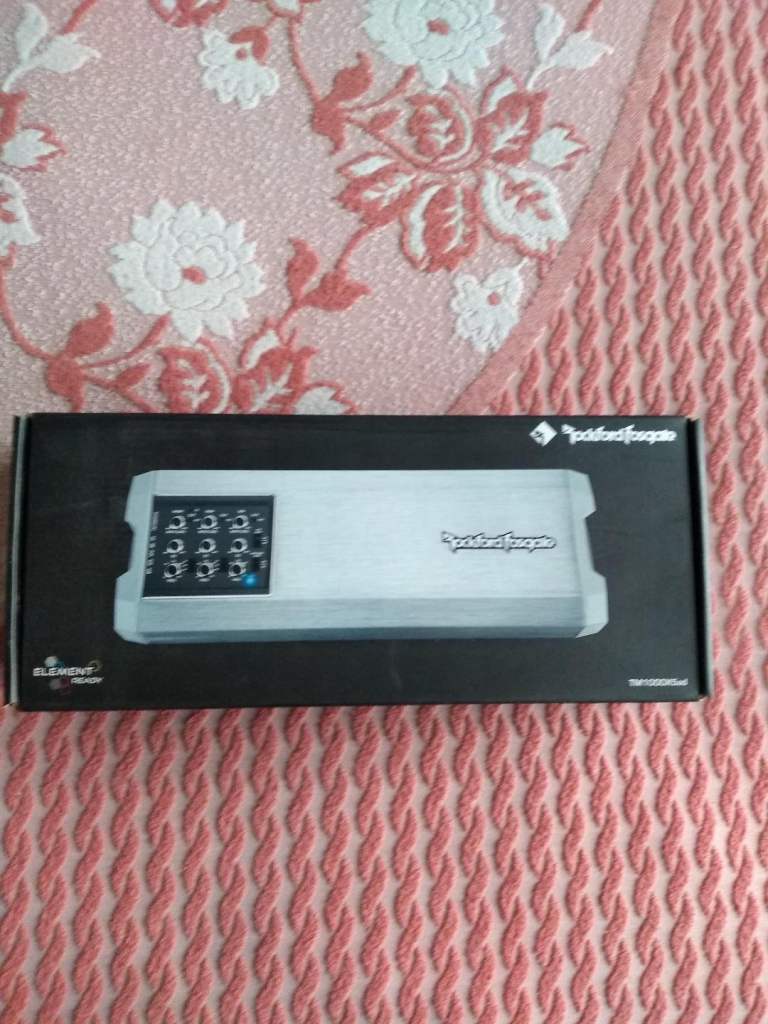

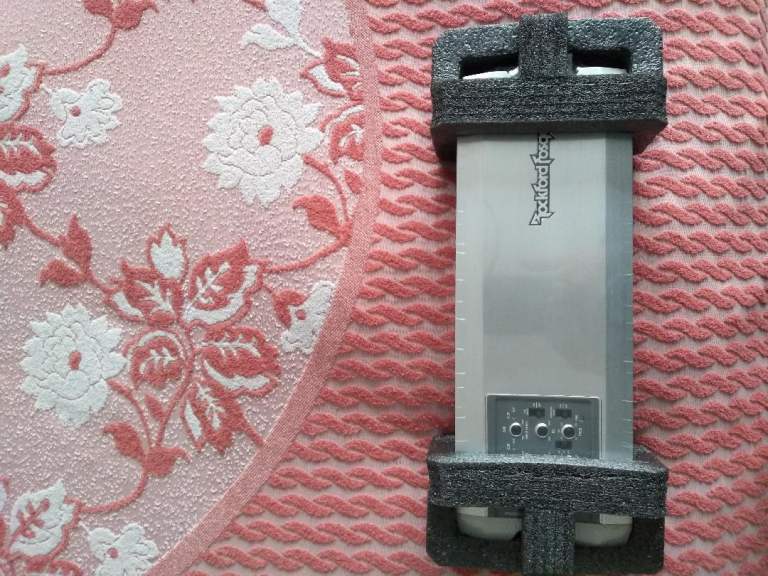

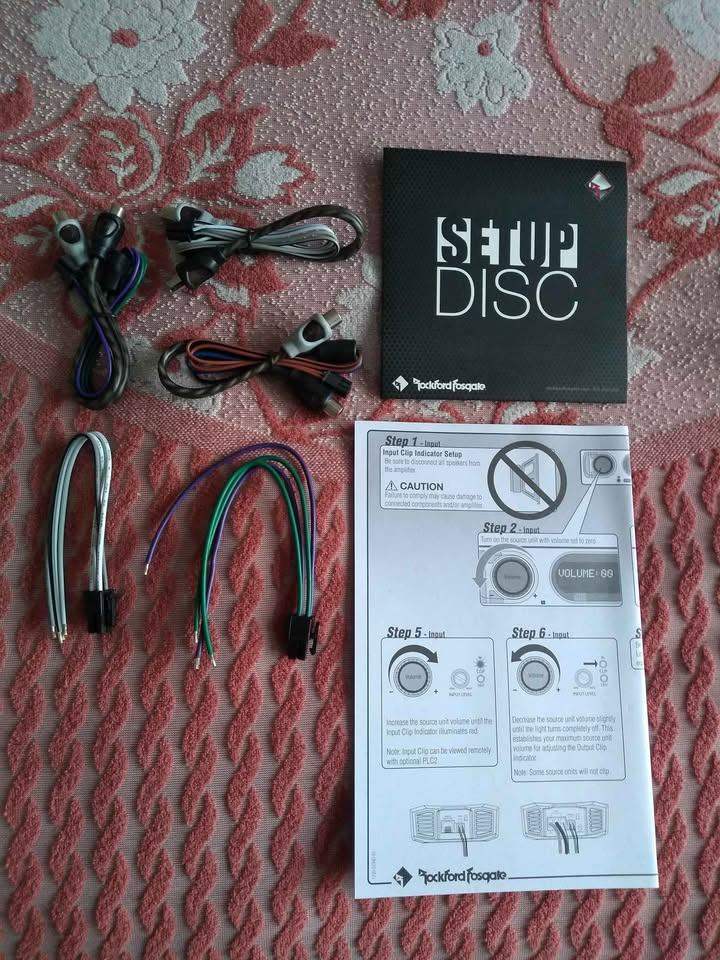

Brand new, never seen power in the original box with birth certificate & accessories including setup disk 5 channel marine grade power amplifier still sealed in the original cellophane wrapper. Being the marine version, this amplifier is protected against dust, moisture and other elements especially in our climate. I bought the amplifier for an install in my Golf but have now decided that I want a full old school Rockford Fosgate setup from the early 90's. This 5 channel power amp retails at £999.99p.

The TM1000X5ad Element Ready multi-channel amplifier is a 1000-watt RMS unit built on our proprietary Class ad platform designed to deliver unprecedented sound quality with superior power efficiency. Combined with our Constant Power technology, this amplifier can easily exceed its rated power by up to 25% additional output per channel. Amplifier top mounted controls include our C.L.E.A.N. level setting system, integrated high/ low pass crossovers, Input channel configuration switches and our Punch EQ boost circuit.

Upgraded input RCA connectors allow for high or low level input signals to be used through our differential input circuit which eliminates incoming noise and can provide a remote out signal when using high level inputs. Dual fan cooling, real time thermal monitoring and dual extruded heat sinks maintain heat dissipation even at high outputs keeping the amp cool. Other features include a conformal coated circuit board for protection against element exposure and compatibility with our PLC2 level remote control for the sub channel.

Features

Rockford Fosgate proprietary Class AD technology
Class-BD Technology
Differential inputs with high level auto turn-on feature
4/2 Ohm Multi-Impedance Constant Power
AP remote out feature when using high level inputs
2013 PLC2 remote ready
C.L.E.A.N. input/output clip detection and indicator LEDs

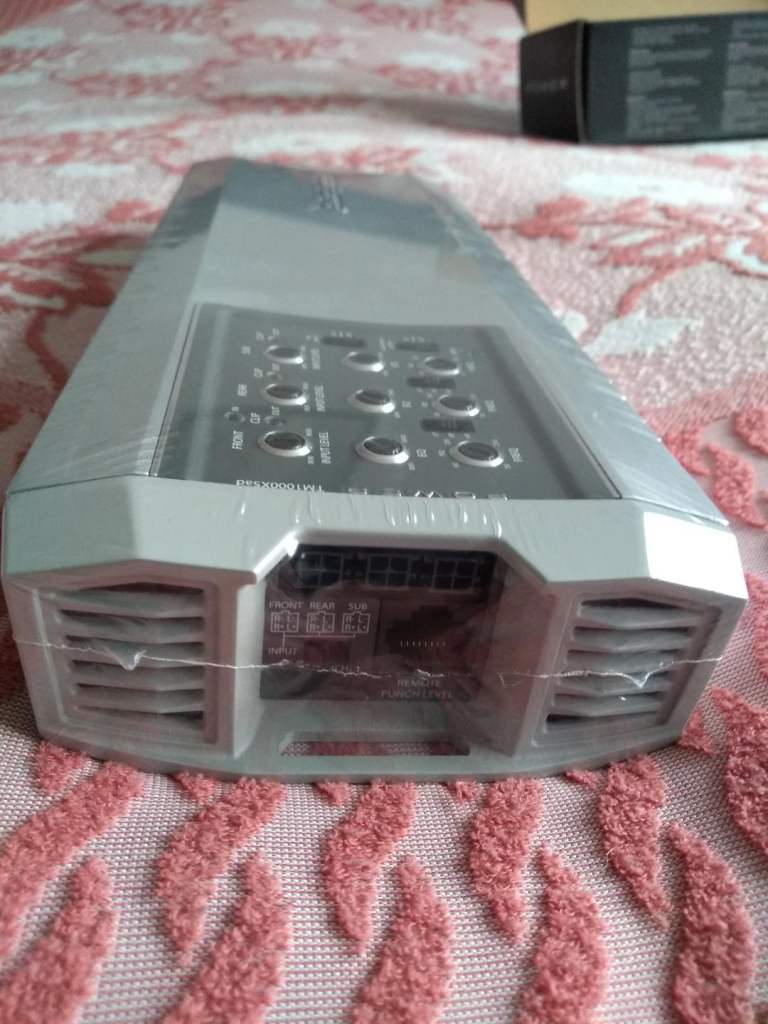

Top mounted controls
Dual fan cooled
Real time thermal sensing
Dual extruded heat sinks
All other Rockford protection schemes
CEA-2006 and CE Compliant
Discrete surface mount technology
Marine grade two part epoxy coating on circuit boards
Specifications

Number of Channels 5
Total Power (Sum of Rated Power) 1000 Watts
Rated Power (RMS Continuous Power)
100 Watts x 4 + 400 Watts x 1 @ 4Ω
100 Watts x 4 + 600 Watts x 1 @ 2Ω
N/A + 600 Watts x 1 @ 1Ω
200 Watts x 2 @ 4Ω Bridged + N/A
Dynamic Power (PVC/PowerCube®)
138 Watts x 4 + 487 Watts x 1 @ 4Ω
118 Watts x 4 + 748 Watts x 1 @ 2Ω
N/A + 663 Watts x 1 @ 1Ω
225 Watts x 2 @ 4Ω Bridged + N/A
Bridgeable
Front Terminals: Left (+) Right (-)
Rear Terminals: Left (+) Right (-)
Frequency Response 20Hz - 20kHz
Input Sensitivity 150 mV to 12 V
Circuit Topology Class AD + Class BD (Sub)
Efficiency (average) >85%
Total Harmonic Distortion (Thd+Noise)
Signal Input
Front High/Low Input: 4-Pin harness
Rear High/Low Input: 4-Pin harness
Input Switch: 2CH/4CH
(2CH: sub signal derived from Front Left input)
Signal Output—
Tone Controls
Front/Rear Treble: 0 to +14dB @ 12.5kHz (HP mode)
Front/Rear Bass: 0 to +18 dB @ 45Hz (LP mode)
Sub: 0 to +18 dB @ 45Hz
Crossover Controls
High-Pass: 50Hz - 250Hz @ 12dB/Octave
Low-Pass: 50Hz - 250Hz @ 12dB/Octave
Subwoofer: 50Hz - 250Hz @ 12dB/Octave
Infrasonic: 28Hz @ 12dB/Octave
Butterworth Alignment on all filters
Remote Controls Optional PLC2 provides Punch Level Control
Visual Indicators
Power: Blue LED
Protect: Red LED
Input Clip: Red LED3
Output Clip: Blue/Violet/Red LED1,2,3
LED Colour Legend:
1BLUE: <0.5% THD
2VIOLET: 1% THD
3RED: 10%+ THD
Power Wire Gauge 4 AWG
Power Input Connector Detachable Compression Terminal
Speaker Wire Gauge
Front/Rear: 16 AWG
Sub: 10 AWG
Speaker Output Connector
Front: 4-Pin Harness
Rear: 4-Pin Harness
Sub: Detachable Compression Terminal
Cooling Dual Fan Cooled
Heatsink Extruded Aluminium
Recommended Fuse (not included) 100 A
Average Current Draw (13.8V Music)
Max. Current Draw (13.8V Sine Wave)108 A
Dimensions
(H x W x D)1.6 x 4.3 x 12 (in.)
4.1 x 10.8 x 30.5 (cm)
Shipping Weight 5 Lbs. (2.27 Kg.)

Collection in person from my home location preferred.
