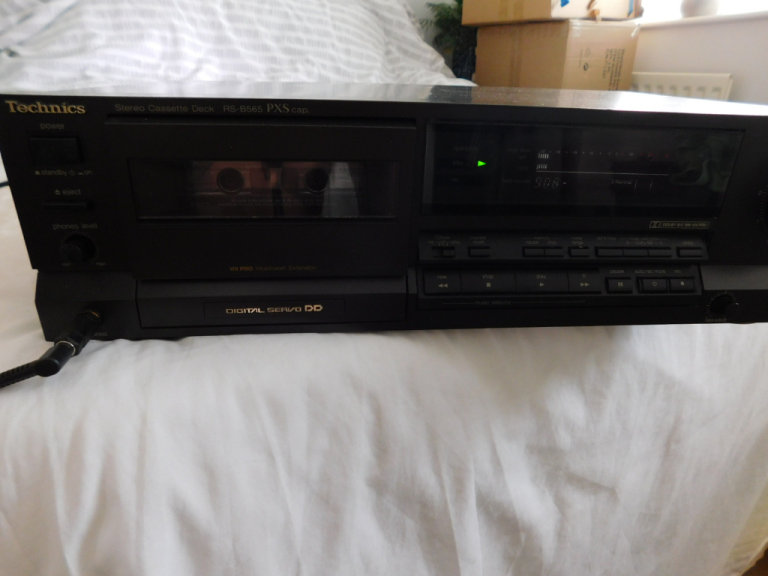

TECHNICS RS-B565 PXS CAP STEREO CASSETTE DECK - JAPAN - 1990

Description

PLEASE NOTE, I AM NOW BASED IN GOSPORT, HAMPSHIRE. GUMTREE DOES NOT ALLOW ME TO CHANGE THE GEOGRAPHICAL LOCATION ON EXISTING ADS, SO THE DEFAULT LOCATION WILL REMAIN AS STEVENAGE, WHICH IS NO LONGER THE CASE. ANY COLLECTIONS WILL NOW BE FROM GOSPORT. OBVIOUSLY THIS HAS NO EFFECT ON POSTAL ORDERS.


TECHNICS RS-B565 PXS CAP STEREO CASSETTE DECK - JAPAN - 1990

Specifications
Type: 2-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x record/playback, 1 x erase

Motor: 1 x capstan, 1 x reel

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Headroom Extension: HX Pro

Frequency Response: 30Hz to 18kHz (Metal tape)

Signal to Noise Ratio: 74dB (dolby C)

Wow and Flutter: 0.05%

Input: 60mV (line), 0.25mV (mic)

Output: 0.4V (line)

Dimensions: 430 x 125 x 290mm

Weight: 4.4kg

Year: 1990

The Technics RS-B565 is a stereo cassette deck with Dolby B/C and HX-Pro noise reduction, it was introduced by Technics in 1990 and discontinued a year later.
The main features of the Technics RS-B565 are: 2 heads, electronic tape counter with 3 digits and memory stop, automatic tape type selection with support for normal, chrome and metal tapes, single capstan transport.

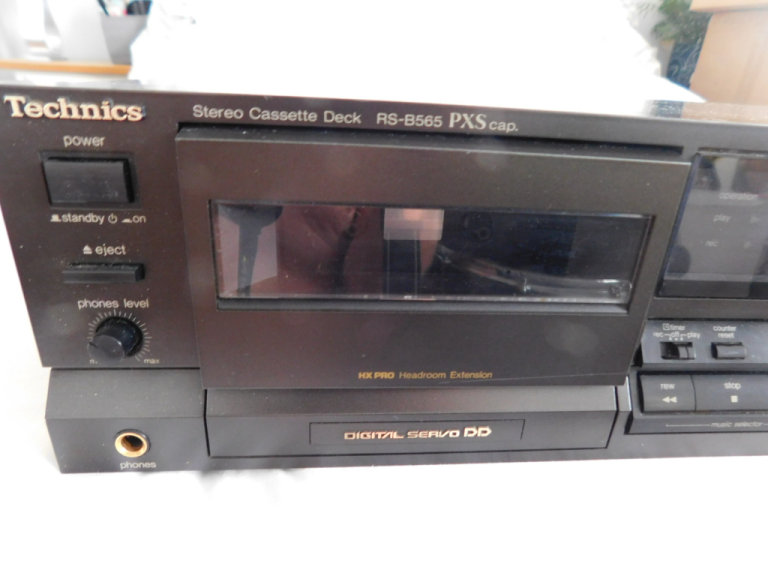

Typical front loading cassette deck with the cassette compartment located on the left side of the deck. Tape eject is operated mechanically and the cassette needs to be placed with the side to be played facing forward in the cassette well.

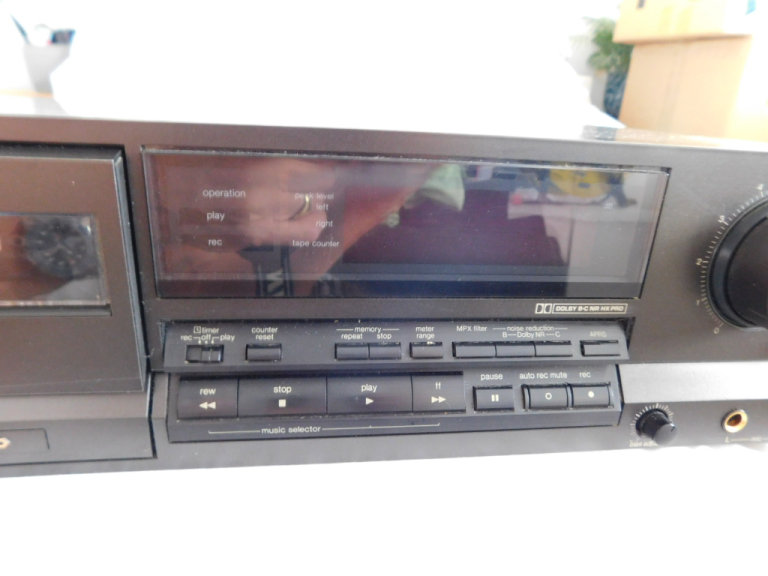

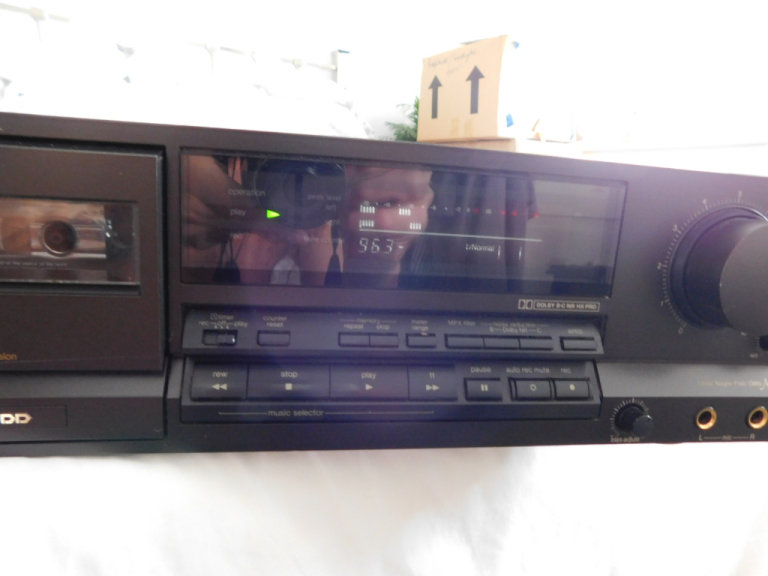

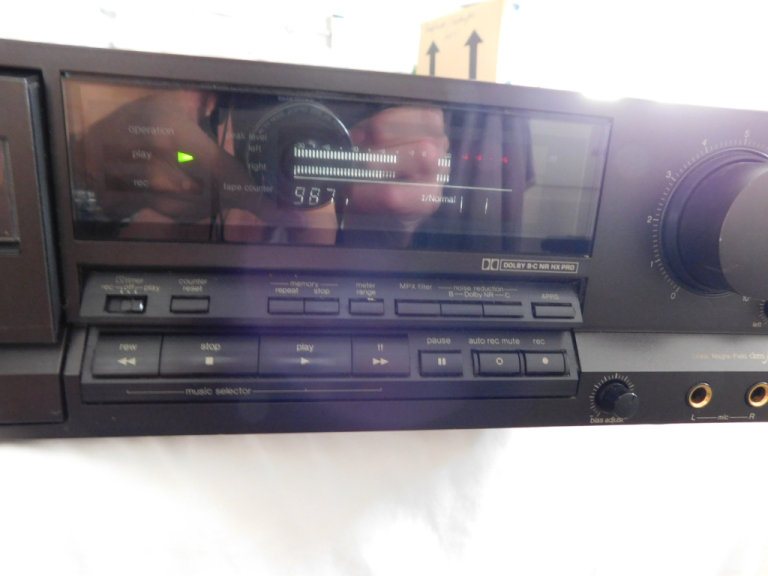

Level meters used on the RS-B565 are generic digital peak reading meters with peak hold for easy adjustment of optimum recording level. Full-logic transport controls used on the RS-B565 let it respond to the slightest finger contact for fast and effortless transport function selection.

Dolby C-type used in the RS-B565 provides 20 dB of noise reduction above about 1,000 Hz, fully doubling the amount given by B-type. The Dolby HX PRO system provides precise bias control during recording to reduce distortion and improve linearity in the high-frequency range, the result is recorded sound that is highly faithful to the original. To further maintain recording accuracy, the RS-B565 incorporates a switchable multiplex filter. When you record FM stereo broadcasts, the MPX filter of the RS-B565 can be switched on to prevent the standard 19kHz FM pilot signal from interfering with the noise reduction system.

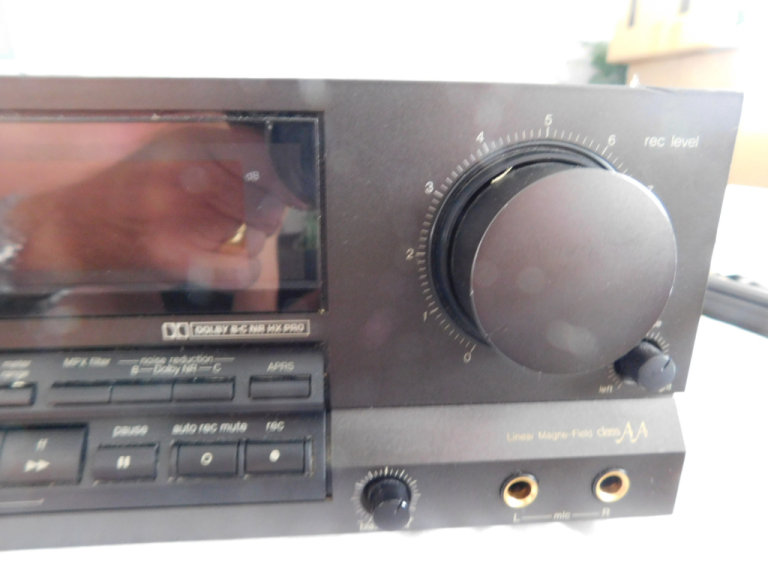

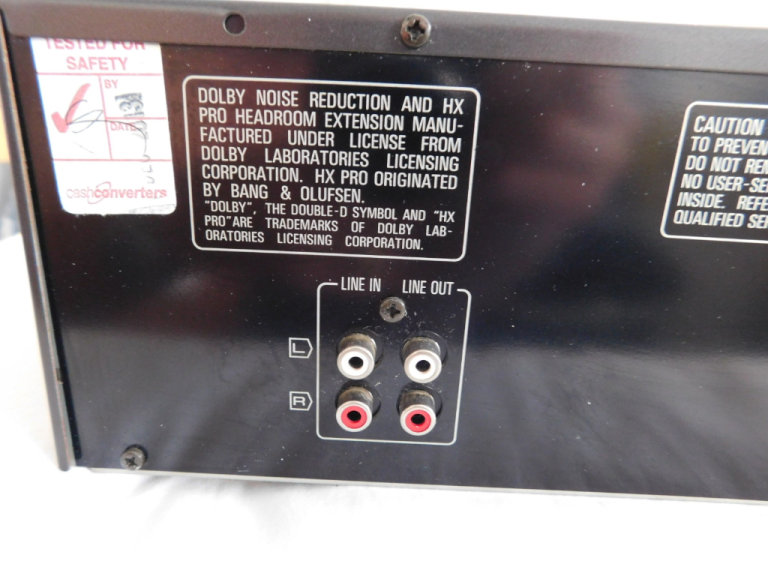

To make live recordings this deck has 2 microphone inputs to connect microphones with a jack connector. For undisturbed listening a jack connector for a pair of stereo headphones is supplied. Connection to other audio components for playback can be achieved by a RCA cable and recording from a source by a RCA cable.

EMAIL ALL ENQUIRIES

£90-00 COLECTED. POSTAGE AT COST
