Pivotell Advance Automatic Pill Dispenser + Tipper Unit

Description

Automatic pill dispenser. Used for family member who had dementia and still lived on her own until she moved into a care home. No longer needed as care home gives her the medicines.

Have boxes and all accessories and instructions

Worked very well for us and my mother managed to work it fine with son (me) doing the programming, filling and resetting when I visited. Sound emits and light flashes when pills are due and person just need to tip it and they fall out into blue bowl and alarm stops.

As per all these medical products for the elderly it was expensive. Cost £138 for just the dispenser and £81 for tipper. £219 total. Bought it new about a year ago.

Selling both for total price of £50

Manufacturers description of pill dispenser

Pivotell® Advance Automatic Pill Dispenser
Advanced Technology, Enhanced Security

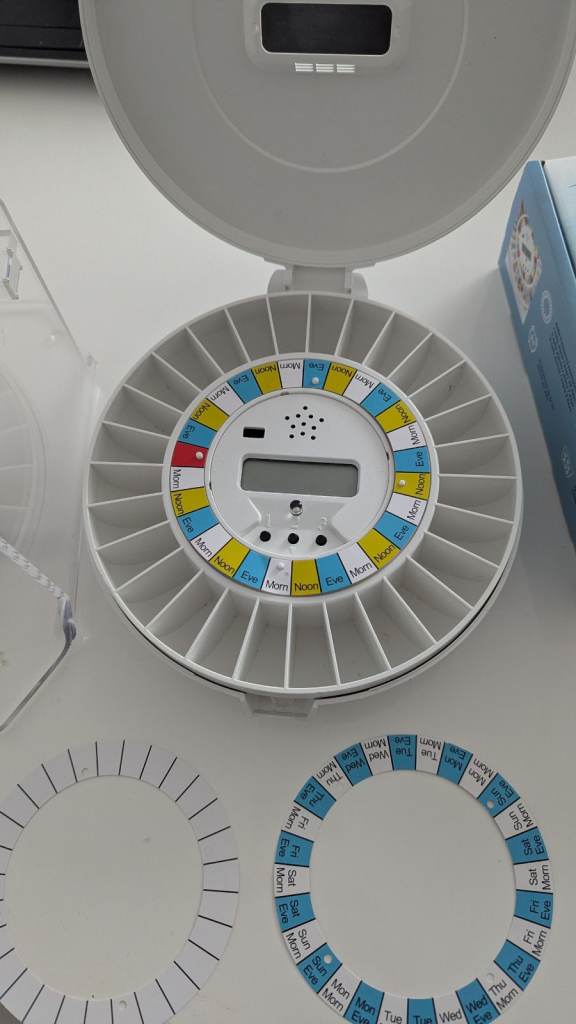

The Pivotell Advance automatic pill dispenser has 28 sections for medication, and will present only the right dose at the right time with all other medication locked in the dispenser. At the alarm time the tray rotates to present a compartment of medication, the alarm sounds and the light will flash. The user should tip the pills out, which cancels the alarm. The alarm can be programmed to ring for up to 5 hours. With 28 sections, and a possible 24 alarms per day, the Pivotell Advance automatic pill dispenser can accomodate the most complicated of medication regimes.

Refill times:

1 dose per day - refill every 28 days

2 doses per day - refill every 14 days

4 doses per day - refill every 7 days

8 doses per day - refill every 3 days

12 doses per day - refill every 2 days

The Pivotell Advance medication dispenser incorporates a number of important and advanced features which are designed to help both the user remain compliant with their medication regime and further support their family members, carers and pharmacists.

Security - a self-locking shutter over the lid opening prevents access to the medication tray except at the alarm time. This prevents the possibility of double dosing or the forced movement of the medication tray by the user.

Display - the LCD display is visible though the lid.

Start Delay and Stop functions - Delays activation or deactivates dispenser - useful for those using multiple dispensers and to allow pharmacists or family members to fill in advance away from home.

Upside-down - the tray will not rotate if upside down. When upright it will move to the correct dose for the time & date at the next alarm time.

This also allows for the possibility that the dispenser could be transported upside down. If a dosage time occurs when the dispenser is upside down it will alarm as usual but the tray will not move forward. If the dispenser is upside down for some time the dispenser will record on how many occasions it should have rotated and when returned to the upright position will move to the correct position for the next scheduled dose so that the correct medication for that time will be presented.

Patent numbers EP2642966, SE1001137-7, US 9,027,787 B2 apply

Registered with the MHRA as Medical Device: Class 1


Main Features
The Pivotell® Advance dispenser has many advanced features including:

Security - a self-locking shutter over the lid opening prevents access to the medication tray except at the time that medication is programmed to be available. This prevents the possibility of double dosing or the forced movement of the medication tray by the user .
Display - the LCD display will be visible though the lid allowing the user and carer to view: the date and time, the time that the next dose is due, the number of doses remaining, the battery level
Batteries - It will be possible to use both Alkaline AA and re-chargeable batteries.
Upside Down - if a dosage time occurs when the dispenser is upside down it will alarm as normal but the tray will not move forward. Then when it is returned upright it will move to the correct position for that time of day.
Daily Alarm Times - 1-24.
Compartments - 28.
Two or more compartments can be programmed to alarm at the same time (for those with many or large pills).
Start delay function - delays activation to allow pharmacists or family members to easily fill in advance away from the user's home.
Stop function - deactivates dispenser - useful for those using multiple dispensers in the home.
A Pharmacy label carrier and label case is supplied (to comply with Royal Pharmacy Society of Great Britain labelling requirements) .
Day / time discs supplied (for 1 / 2 / 3 / 4 times daily dosage and one blank disc for five or more doses per day).
Battery life - 12 months .
Battery level meter and warning indicator .
Secure battery case cover to deter tampering (screw provided)
Spare trays, lids and time discs available for off-site filling by family members or pharmacists.
Four different alarm sounds.
Flashing light for those with hearing impairment .
Lockable - only the medication due can be accessed by the user .
Can be Telecare enabled (e.g. Lifeline / Carephone / Sayphone systems) with Alarm Response Centre response. For this function the dispenser must be purchased from your Telecare provider.
The LCD Screen
The LCD display feature is of particular benefit to carers / family members who can make a visual check on the status of the dispenser without having to open it, allowing the user and carer to view:

the date and time
the time that the next dose is due
number of doses remaining
the battery level
When horizontal the display will show the Date and the Time in sequence. At the Alarm Time the display will show 'Take Med'. When tilted forward the display will show in sequence (dates and times etc shown here are examples):

NEXT DOSE 16:30 MON || DOSES LEFT 9 || B (battery level) 75% || DATE: 23 SEPT 2011
When only 4 doses remain the display will additionally show DOS 04. After this dose has been dispensed DOS 03, DOS 02, DOS 01 and finally DOS 00 will be displayed in sequence with the DATE and CLOCK
When the battery capacity is less than 20%, LOWBATT will be displayed in sequence with the DATE and CLOCK
Other data:
Dimensions Length 190mm Width 180mm Height 56mm .
Weight 390g excl. batteries 490g incl. batteries .
Volume Approx 10ml per compartment .
Power supply 6V 4 x 1.5V Alkaline batteries or 4 x 1.2v rechargeable NiMH batteries .
Battery life > 1 year.
Compartments 28.
Maximum daily alarms 24
The Pivotell® Advance dispenser is the same diameter and slightly deeper than the existing Pivotell® Mk 3/11 Dispenser.
The interface currently provided in the Pivotell Mark 3/11 Automatic Pill Dispenser (CI0108M1Hxx,CviLux 8 pin) is retained to enable connection to current Telecare systems.

It is also useful if the user forgets to turn the dispenser upright (If the dispenser is left upside down at the time of the next alarm it will not rotate to prevent spillage of the medication).

Manufacturers description of tipper unit (stops dispenser being left upside down)

The tipper comes supplied with a bowl to catch the pills when it is tipped. Fits all Pivotell dispensers (purchased separately).

Made in Britain. Design Registration No. 4010903.

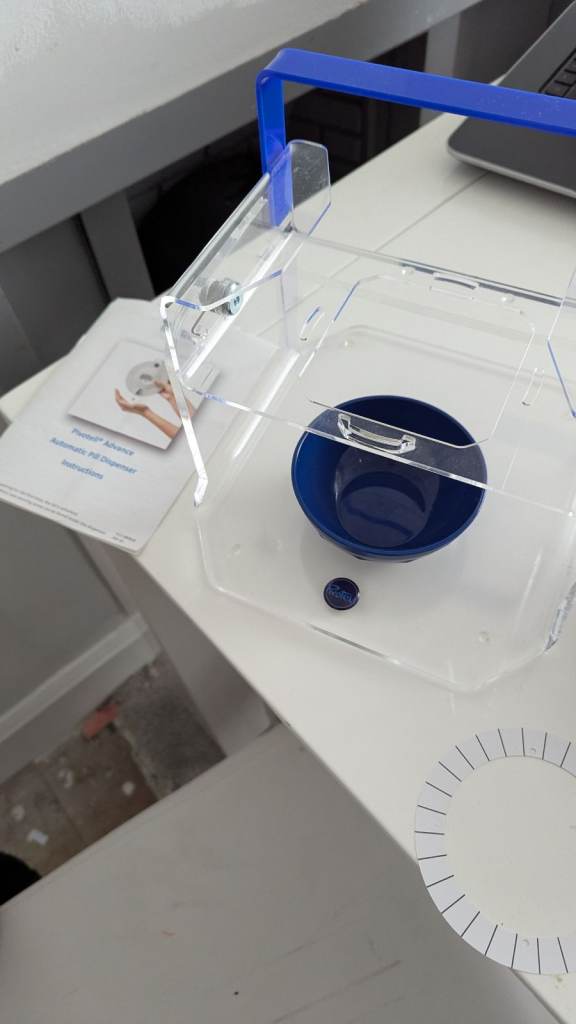

Tipper in use:
Using very little pressure, dispense pills with the Pivotell Tipper into the supplied bowl.
