INTEL DC S3520 Series 1.6TB 2.5 Inch MLC SATA SSD 99% Health SSDSC2BB016T7R DELL

Description

INTEL DC S3520 Series 1.6TB 2.5 Inch DELL SSD in excellent working condition. Plenty of life left in this pro grade DC SSD famous with longevity and reliability. Full suite of enterprise security and protection features.
Test before buy


Specifications:

Quality: Used
Size: 1.6TB
Interface: SATA
Brand: INTEL/DELL
Model: SSDSC2BB016T7R

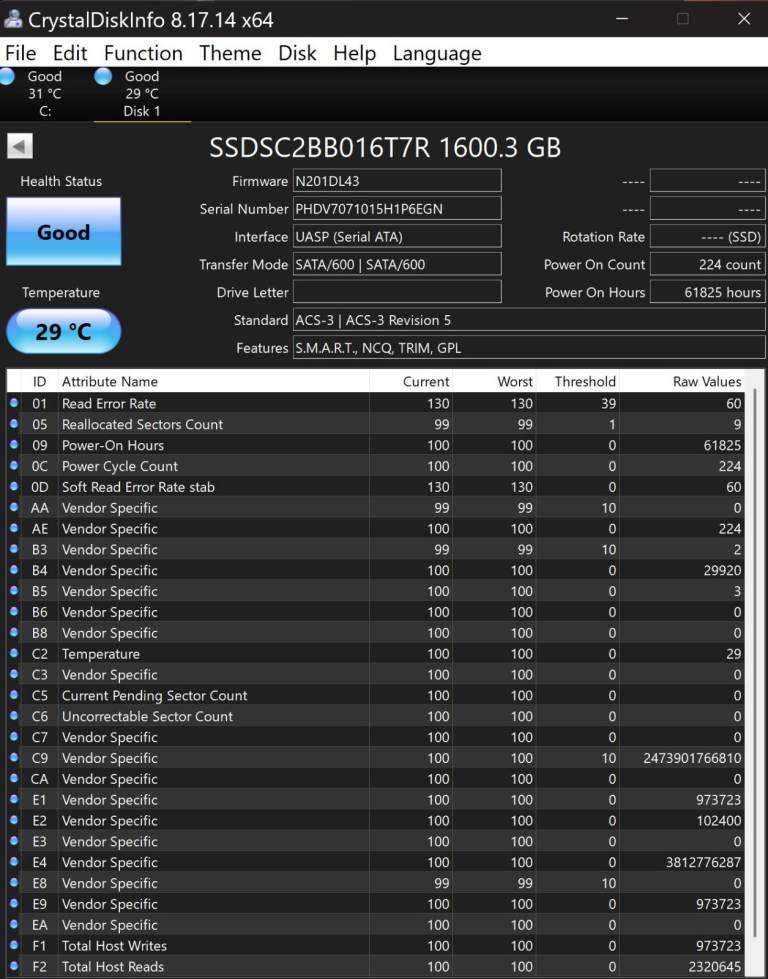

This SSD has been wiped and tested with CrystalDiskInfo, a reliable tool for monitoring the health and status of your storage devices. It is in excellent working condition, comes without the original box and has been fully tested.


Intel® Solid-State Drive DC S3520 Series 1.6TB
Product Specification Addendum
 Capacity:
− 1.6TB
 Components:
− Intel® 20nm NAND Flash Memory
− Multi-Level Cell (MLC)
 Form Factor: 2.5–inch1
 Read and Write IOPS 2,3 (Full LBA Range, IOMeter*
Queue Depth 32)
− Random 4 KB 4 Reads: Up to 65,000 IOPS
− Random 4 KB Writes: Up to 15,500 IOPS
− Random 8 KB 4 Reads: Up to 44,500 IOPS
− Random 8 KB Writes: Up to 8,000 IOPS
 Bandwidth Performance
− Sustained Sequential Read: Up to 500 MB/s5
− Sustained Sequential Write: Up to 460 MB/s5
 Latency (average sequential)
− Read: 55 μs (TYP)
− Write: 65 μs (TYP)
 Quality of Service
− Read/Write: 500 μs / 5 ms (99.9%)
 AES 256-bit Encryption
 Compliance
− SATA Revision 3.0; compatible with SATA 6Gb/s, 3Gb/s
and 1.5Gb/s interface rates
− ATA8-ACS2; includes SCT (Smart Command Transport)
and device statistics log support
− Enhanced SMART ATA feature set
− Native Command Queuing (NCQ) command set
− Data set management Trim command
 Compatibility
– Windows 7*, Windows 8*, Windows 8.1* Windows 10 and 11
– Windows* Server 2012 R2*, Windows Server
2012*
– Windows* Server 2008* Enterprise 32/64bit SP2
– Windows* Server 2008* R2 SP1
– Windows* Server 2003* Enterprise 64bit SP2
– Red Hat* Enterprise Linux* 5.5, 5.6, 6.1, 6.3, 7.0
– SUSE* Linux Enterprise Server 10*, 11
SP1CentOS* 64bit 5.7, 6.3
– Intel® SSD Toolbox with Intel® SSD Optimizer
 Altitude8
− Operating: -1,000 to 10,000 ft
− Operating
: -10,000 to 15,000 ft
− Non-operating: -1,000 to 40,000 ft
 Product Ecological Compliance
− RoHS*
 Power Management
− 2.5 inch: 5V or 5V +12V SATA Supply Rail
− SATA Interface Power Management
− OS-aware hot plug/removal
− Enhanced power-loss data protection
 Power 11
− Active: Up to 5.2 W (TYP)
− Idle: 700 mW
 Weight
− 94 grams ± 2 grams
 Temperature
− Operating: 0° C to 70° C
− Non-Operating 12 : -55° C to 95° C
− Temperature monitoring and logging
− Thermal throttling
 Shock (operating and non-operating):
1,000 G/0.5 msec
 Vibration
− Operating: 2.17 G RMS (5-700 Hz)
− Non-Operating: 3.13 GRMS (5-800 Hz)
 Reliability
− Uncorrectable Bit Error Rate (UBER):
1 sector per 10 ^17 bits read
− Mean Time Between Failures (MTBF):
2 million hours
− End-to-End data protection
 Endurance Rating
− 1.6TB: 3000 TBW
 Certifications and Declarations
− UL*, CE*, C-Tick*, BSMI*, KCC*, Microsoft WHCK*, VCCI*,
SATA-IO

Intel SSDSC2BB016T7R 1.6TB 2.5in 6Gbps MLC Consumer 1-DWPD DC S3520 Series SED SATA / Serial ATA SSD

Intel SSDSC2BB016T7 1600GB 2.5 inch; 6.0 Gb/s Multi-Level Cell Consumer 1 Drive Write Per Day Data Center S3520 Series Self-Encrypting Drive Serial Advanced Technology Attachment Solid State Disk Drive - Brand New

Intel Solid-State Drive DC S3520 Series Non-Volatile Memory Storage Solutions

Consistently Amazing
Premier Performance, Protection, and Optimization for the Data Center
The Intel Solid-State Drive S3520 Series offers the next generation of data center SSDs combining fast consistent read performance with strong data protection, and leading edge 20nm flash technology.

Fast and Consistent Performance
Deliver data at a rapid pace, with consistently low latencies and tight IOPS distribution.

The Intel Solid-State Drive DC S3520 Series delivers superior Quality of Service for applications such as video streaming/conferencing, virtual client support, and big data analytics. All of these applications benefit from 50µs typical latency with max read latencies1 of 500µs for 99.9% of the time and 4KB random read performance of up to 75,000 input/output operations per second (IOPS)2. Performance delivered with low active read power (less than 1.3 watts2) means this Intel SSD helps improve data center efficiency with reduced energy costs—making it an excellent value for data center storage application upgrades!

Stress-free Data Protection
Protect your data center applications with multiple security checkpoints providing protection against data loss and corruption.

The Intel SSD DC S3520 Series combines the following features to provide an SSD you can count on.

Full End-to-End Data Protection. Helps protect your data from the time it enters the drive to the time it leaves. The Intel® SSD DC S3520 Series uses an advance error correction scheme that helps to preserve data integrity by protecting against possible data corruption in the NAND, SRAM, and DRAM memory. The Intel® SSD DC S3520 Series also helps protect the data in transit through several techniques such as parity checks, Cyclic Redundancy Checks (CRC) and LBA tag validation. Once an error is detected, an immediate attempt will be made to correct it, and any uncorrectable error will be reported to the host. To further improve data assurance, the Intel® SSD DC S3520 Series provides data redundancy technology to minimize potential data loss.

Enhanced Power-Loss Protection. Reduces potential data loss by detecting and protecting data from an unexpected system power loss. The drive saves all cached data in the process of being written prior to shutting down, thereby reducing potential data loss.

Optimized for Efficiency
Reduce the strain on tight IT budgets with leading Intel technologies.

By combining the latest 20nm Multi-Level Cell (MLC) NAND flash memory technology with Intel’s latest SSD controller technology, the Intel® SSD DC S3520 Series delivers fast and consistent performance, reduced power consumption and stress-free data protection. Increase storage efficiency in your data center with the low power and high performance DC S3520 M.2 in a small form factor. Double the capacity in a 2.5” footprint with the DC S3520 1.2TB and 1.6TB, saving critical data center real estate. Optimize your dollars per IOP, energy costs, and floor space in your data center with the amazingly efficient Intel® SSD DC S3520 Series.

Product Spotlight

Fast and Consistent Performance
Full End to End Data Protection
Enhanced Power-Loss Data Protection
Latest 20nm MLC NAND Flash Memory Technology
Intel-Based Controller Technology
2.5” Form Factor
