Zoom B9.1UT Multi-Effector with Tube Accelerator for Bass

Description

Zoom B9.1UT Multi-Effector with Tube Accelerator for Bass
In excellent used condition, multiple effects, a must for the bass enthusiast!


Core Processing & Performance

• Audio Engine: 32-bit ZFX-3 DSP processor
• Tube Circuitry: Genuine 12AU7 vacuum tube accelerator for analog warmth and harmonic saturation
• Sampling Frequency: 96 kHz
• A/D Conversion: 24-bit, 64-times over-sampling
• D/A Conversion: 24-bit, 128-times over-sampling
• Signal Processing: 32-bit
• Frequency Response: 20 Hz – 40 kHz (+1.0 dB, -3.0 dB at 10kΩ load)
• Effect Types: 112 total effect types
• Effect Modules: 10 modules
• Simultaneous Effects: Up to 10 effects at the same time
• Patch Memory: 160 total patches (80 user patches + 80 preset patches)

Hardware & Controls

• Z-Pedal: 3D expression pedal supporting both vertical and horizontal (side-to-side) motion for multi-axis parameter control
• EQ: Onboard 6-band semi-parametric equalizer
• Tuner: Built-in auto-chromatic tuner (with multi-string bass support)
• Looper: Onboard phrase loop function (up to 5.4 seconds)
• Chassis: Heavy-duty metal construction

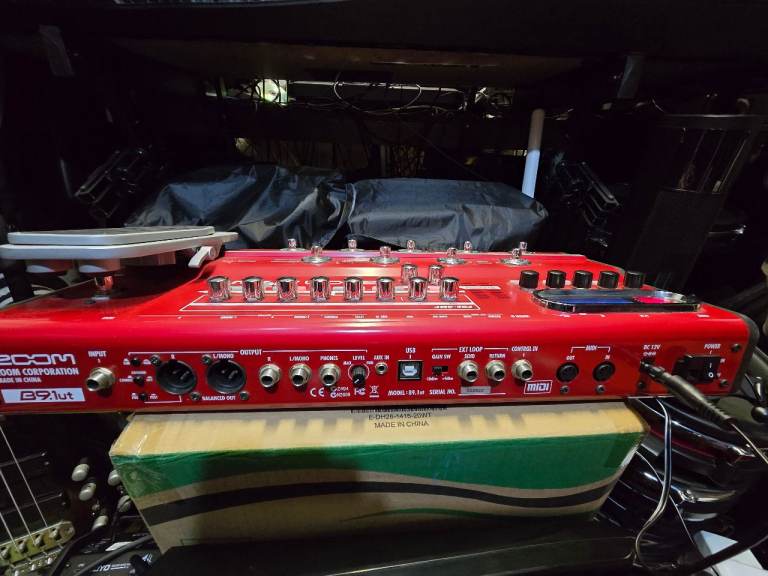

Connections & I/O

• Bass Input: 1/4" phone jack (-10 dBm, 1 MΩ impedance)
• AUX Input: 1/8" stereo phone jack (-10 dBm, 10 kΩ impedance)
• External Return: 1/4" phone jack (-10 dBm / +4 dBm)
• External Send: 1/4" phone jack (-10 dBm / +4 dBm)
• Line Output (L/MONO, R): 2 x 1/4" phone jacks (+11 dBm max output)
• Balanced Output: 2 x XLR connectors
• Headphone Output: 1/4" stereo phone jack
• Control Input: Jack for external foot switch or expression pedal
• MIDI: MIDI IN and MIDI OUT
• USB Interface: Built-in USB port for computer connectivity

Physical Specifications

• Dimensions: 515 x 235 x 81 mm (approx. 23.4" x 9.25" x 3.3")
• Weight: 4.5 kg (approx. 10 lbs)
• Power Supply: DC 12V, 3A (AD-13 / AD-0013 AC adapter included)
