NEW Fusebox F2006MX 6-way with SPD and RCBO Consumer Unit NEW !!

Description

£45

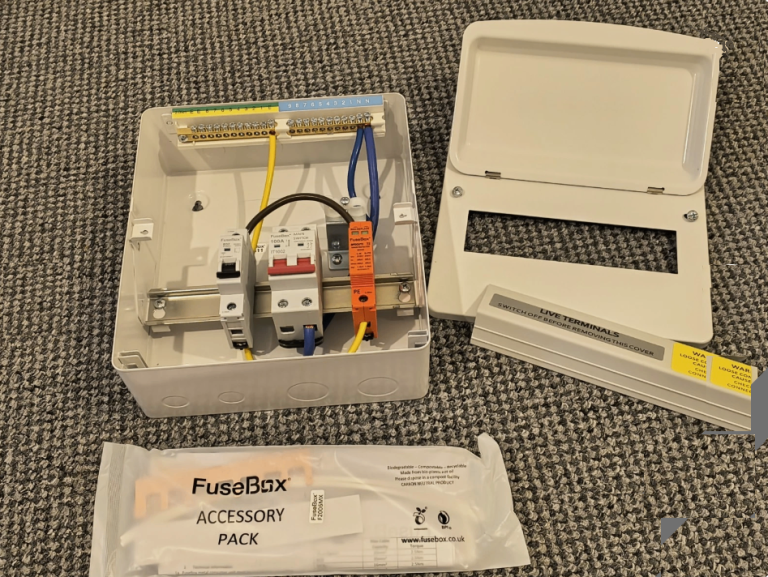

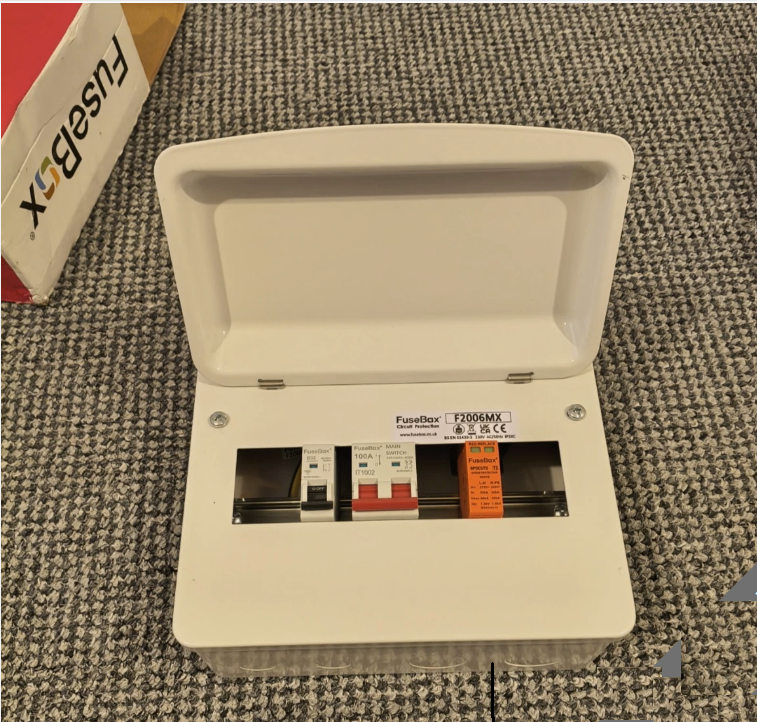

Fusebox F2006MX 6-way RCBO consumer unit complete with a 100A main switch and a Type 2 Surge Protection Device (SPD). Engineered to defend against transient over-voltages and lightning strikes, it incorporates Fusebox’s advanced SPD1MT2, which connects directly to the busbar—removing the need for a miniature circuit breaker and offering enhanced protection and installation simplicity.
Constructed from rust-resistant galvanised steel, this unit meets BS EN 61439-3 standards and is IP2XC rated for electrical safety—delivering long-lasting performance and peace of mind.

Key Features of the Fusebox F3006MX:
6 Way 100A Main Switch RCBO Consumer Unit with Surge Protection
Galvanised Metal Construction - Durable, corrosion-resistant housing.
35mm DIN Rail Device Mounting - Industry-standard fitting for easy RCBO mounting and reconfiguration.
20-40mm Cable Knockouts - Multiple entry points allow versatile cable routing options.
IP rating of IP2XC - Safeguards against solid objects for added safety

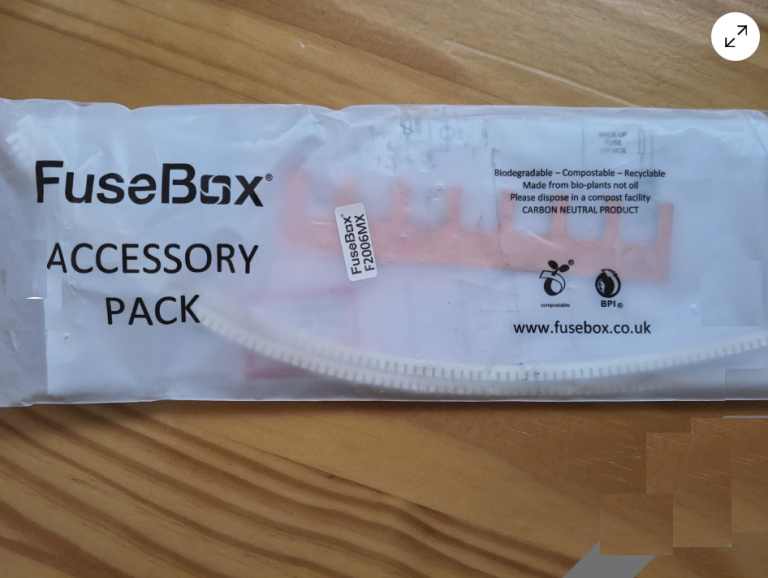

Tail Clamp Included (ACCF) - Provides secure cable retention for more reliable connections
Secure grommet strip - Protects cables at entry points and ensures tidy installations
Maximum Terminal Bar Capacity: 16mm² - Supports a wide range of cable sizes
RAL 9001 Powder Coated - Clean, neutral finish
Easy to Install
Captive Screws included on the front cover
BS EN 61439-3 compliant
Voltage - 230V
Frequency - 50/60Hz
Terminal Bar Tightening Torque - 2NM
Tail Clamp Compatible - Yes
Double Bank - No
Height - 259mm
Width - 234mm
Depth - 113mm
Weight - 3kg
