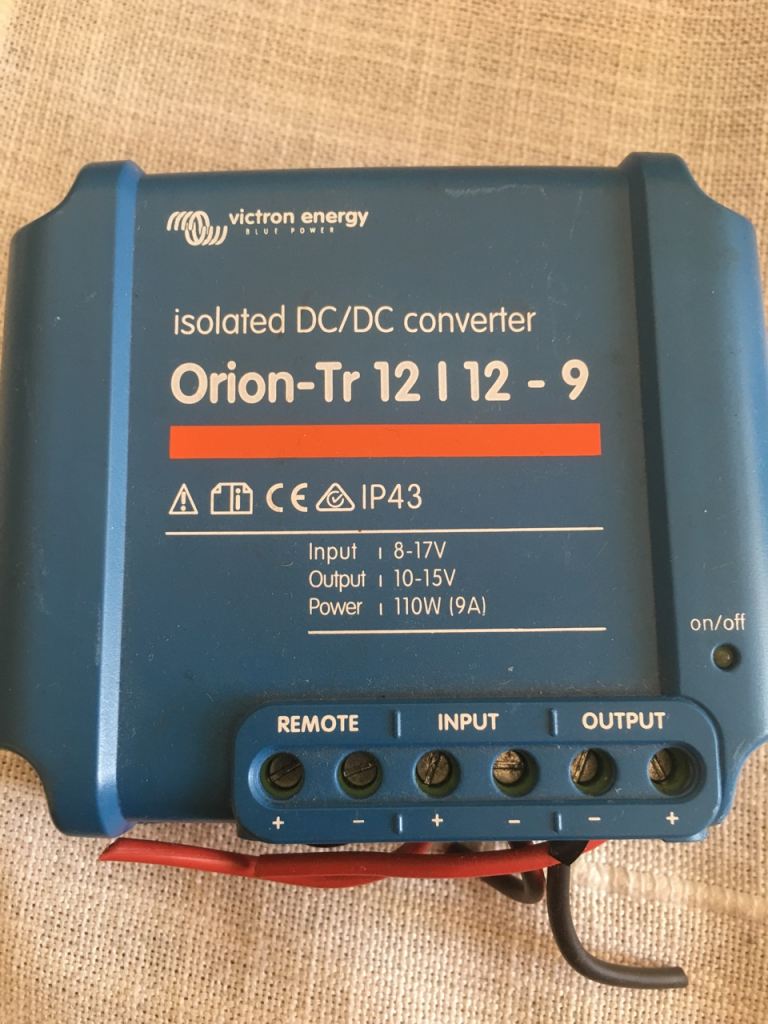

VICTRON BATTERY TO BATTERY CHARGER

Description

VICTRON TR B2B CHARGER
9-12 volt in 12 -15 volt out 9 amps current.

For use in vans and campers to charge lithium LIFEPO4 leisure batteries off the vehicles system.

Adjustable output to give the constant 14.6 volt output to fully charge LIFEPO4 batteries from the lead acid starter battery.

Can put 2 in series to give 18 amp charge.
Can use with a simple switch to turn on/off leisure battery charging, or use a voltage sensing relay (VSR) to operate it only when the engine is running and the alternator is outputting.

Because the current is fairly low (9amps) the wires don’t need to be very thick, which can make installation very easy.

For example if you already have a suitable 12v socket in the rear that will support 10 or more amps continuous you can possibly use that into the victron and the output to The LIFEPO4.

Victron are top quality and very robust kit.

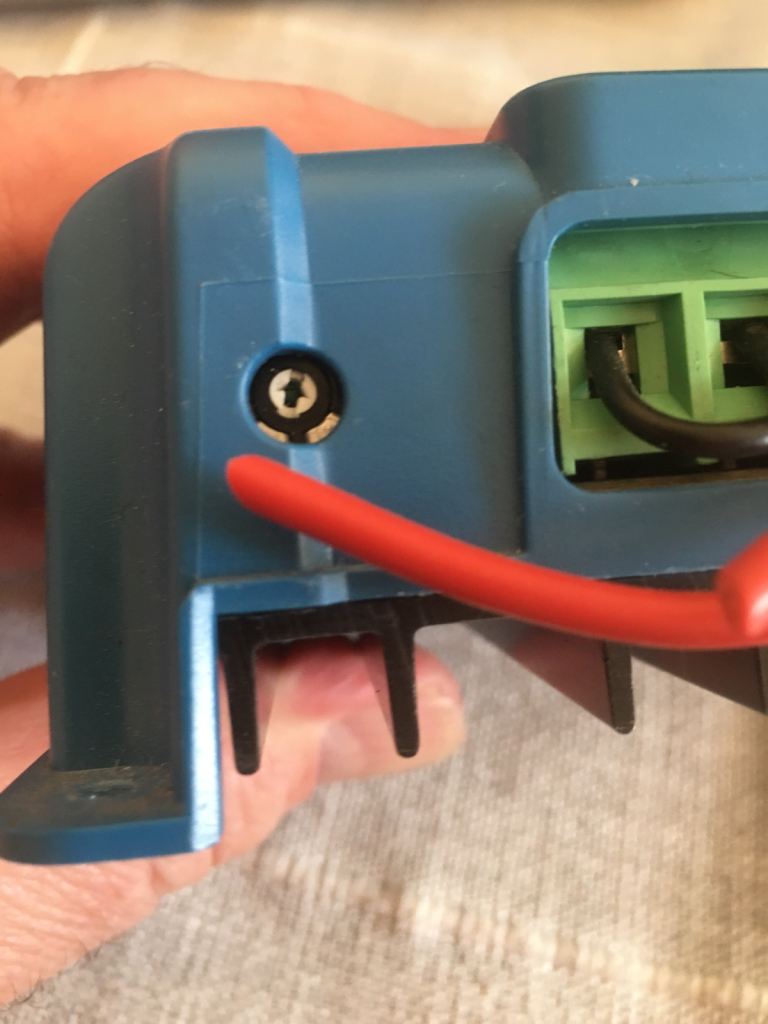

This is NOT the Bluetooth app/ charge adjustable (smart) model, it’s simple fixed 9 amp output. Adjustable voltage. You will need to check output when installing with a voltmeter as you turn the adjuster (pic 3)

This is a very cheap and easy way to wire in a lithium LIFEPO4 with a vehicle lead acid (start battery) and get 100% charge on the lithium at 14.6 volts.

Thanks.
