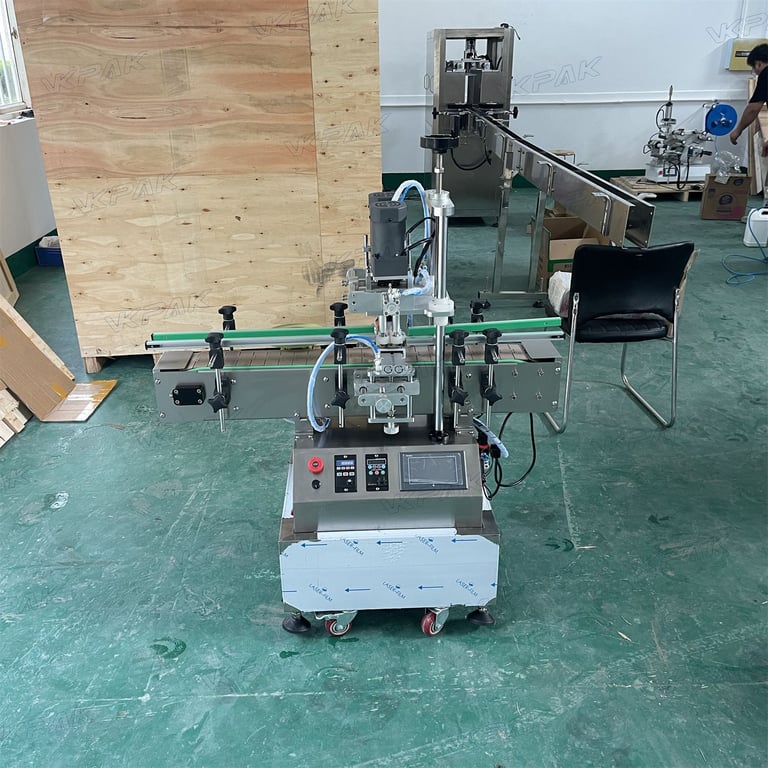

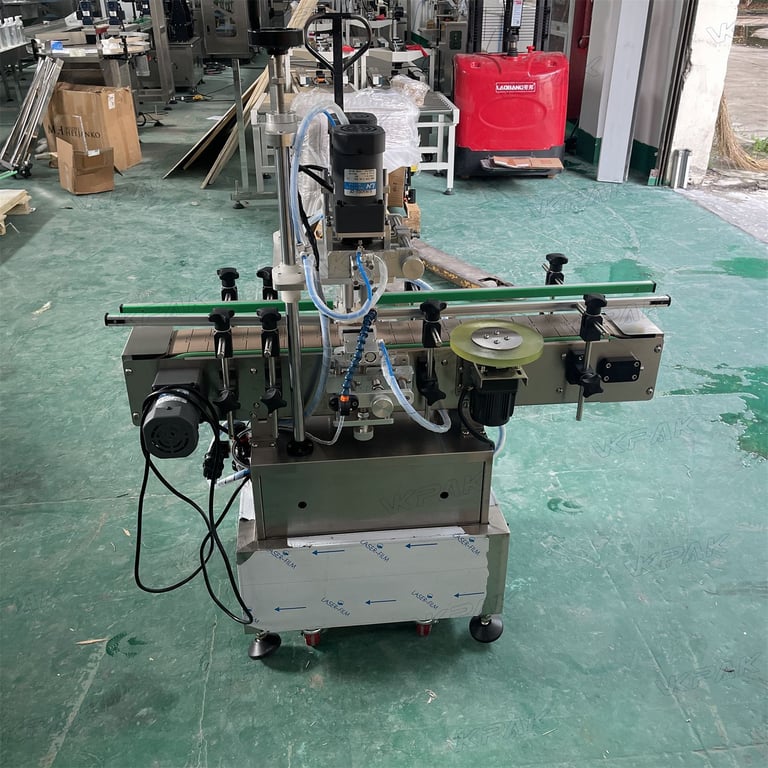

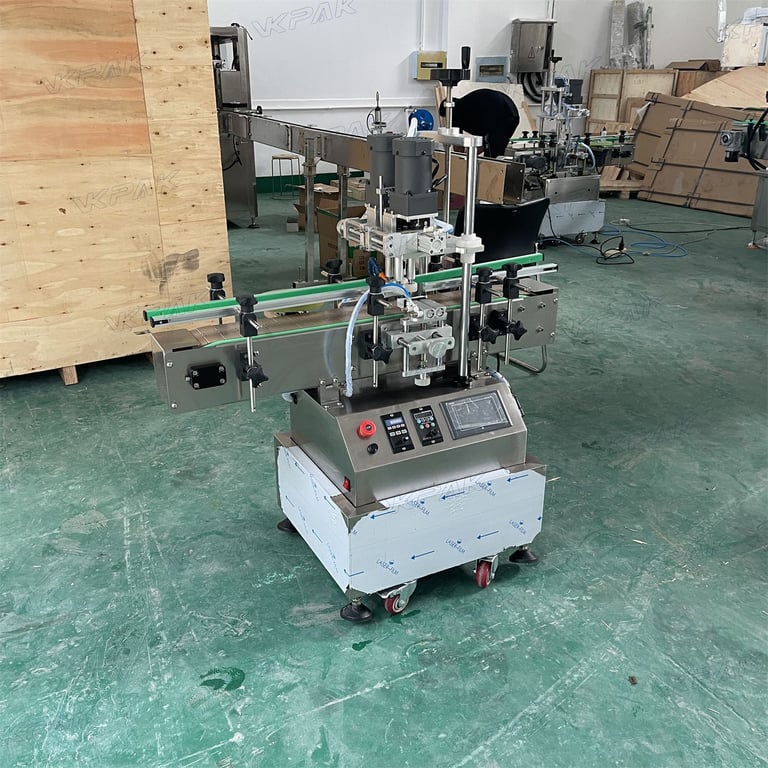

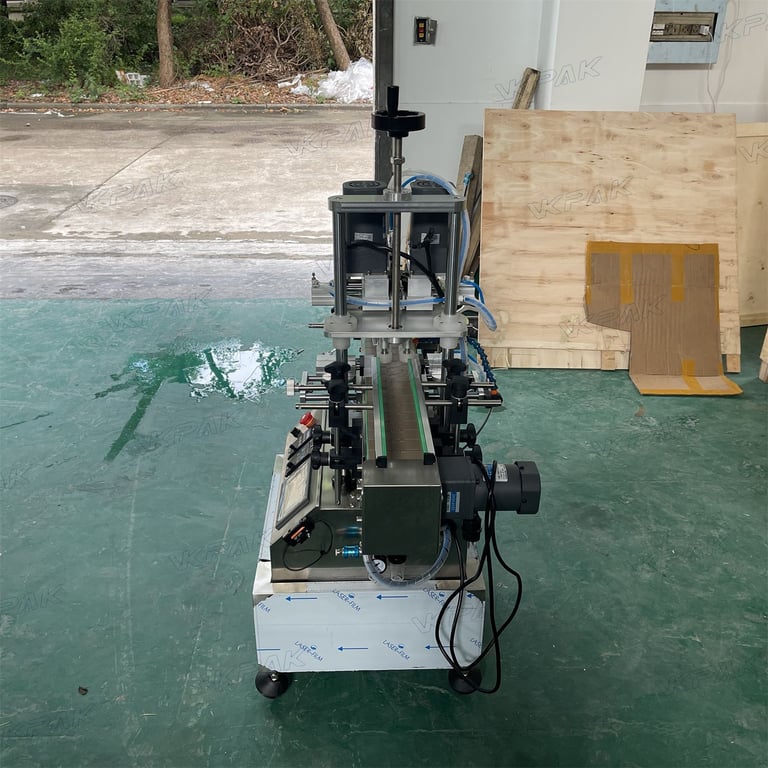

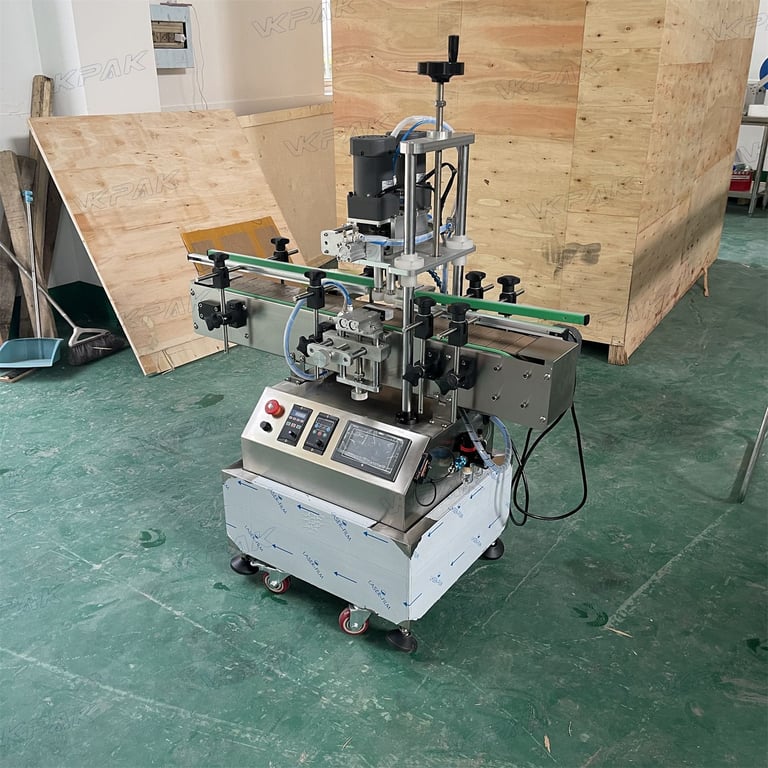

Automatic Tabletop Spray Cap Screw Capping Sealing Machine for Plastic Pet Glass Bottle

Description

Introduction:

Automatic tabletop spray bottles screw capping machine is mainly used for capping various of caps, such as spray bottles, plastic bottles, glass bottles, cosmetic bottles, water bottles etc.

The capping machine is widely used in food, medicine, pesticide and chemical industries.

Features:
1. Smart capping equipment, simply place the workpiece and automatically complete the capping.
2. It is easy to adiust capping height, speed.
3. Desktop design, simple structure, small shape, powerful function.
5. The body of machine made of stainless steel, witch is effective against corrosion and destroy.

Parameter:

Voltage: AC 220V/110V
Cap diameter: 20-60mm
Bottle height: 35-220mm
Bottle Diamter: 50-80mm
Production capacity: 20-40pcs/min
Machine weight: 110kg
Machine size: 1200(L)*900(W)*780(H)mm

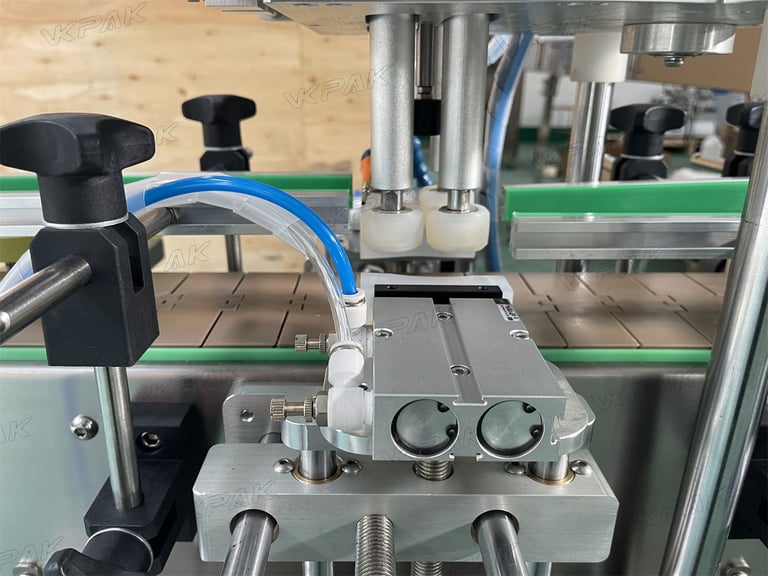

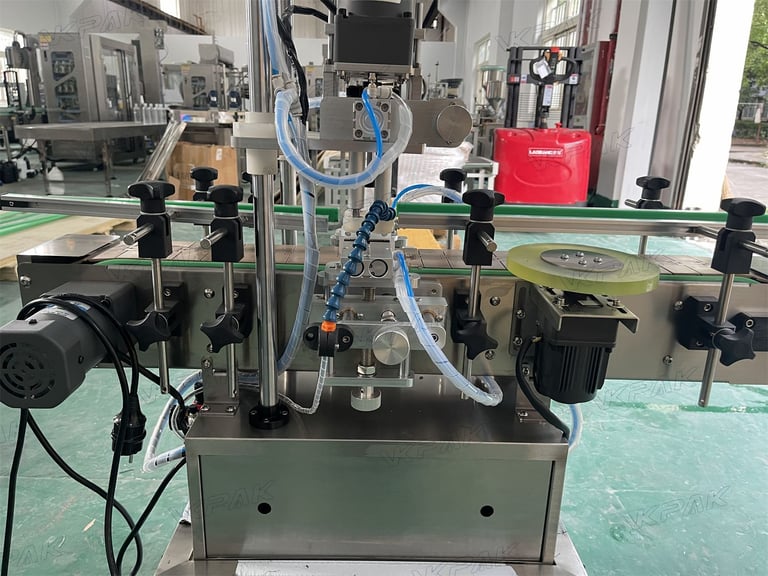

The 4-wheel capping head is suitable for various bottles, such as spray bottles, plastic bottles, glass bottles, pet bottles, etc.

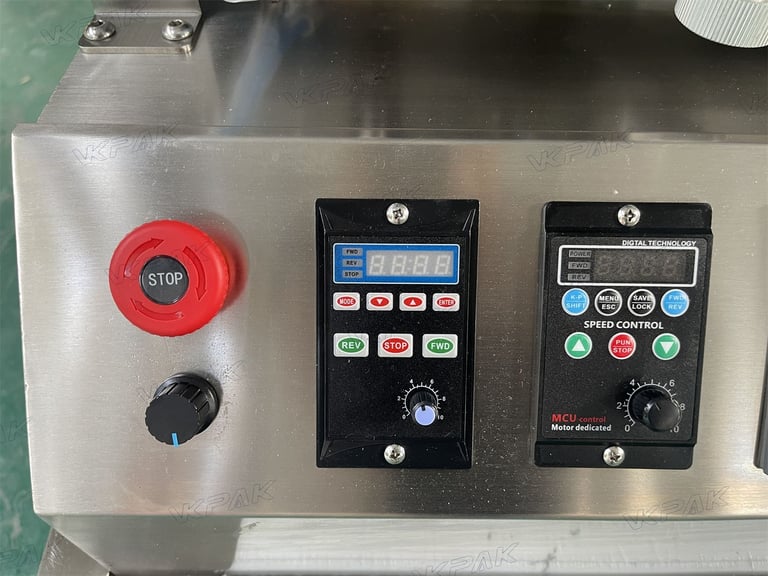

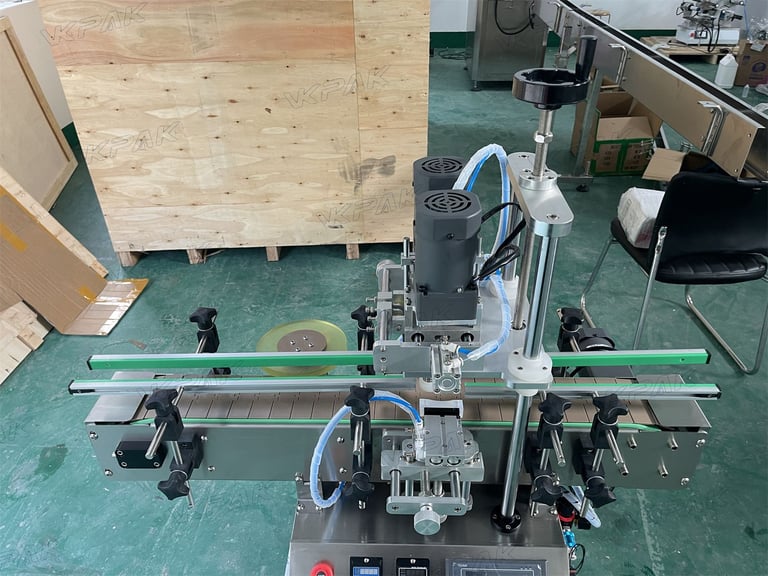

Double capping motor is mainly used for cap screwing, Rotation speed can be adjusted, Torque is controlled by cylinder.

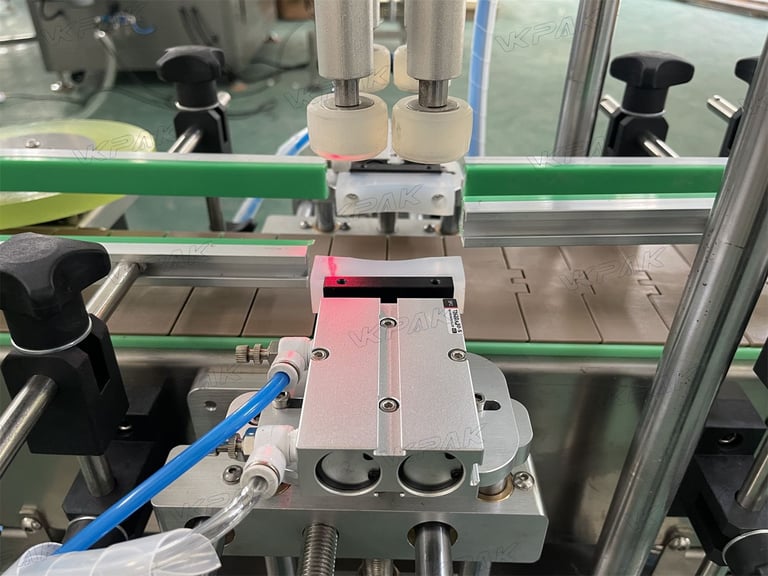

The high-precision positioning sensor determines that the bottle enters the capping station and is removed after the capping is completed, which is used to control the clamping of the cylinder.

The four solenoid valves are used to vent and deflate the cylinder after receiving the sensor signal.

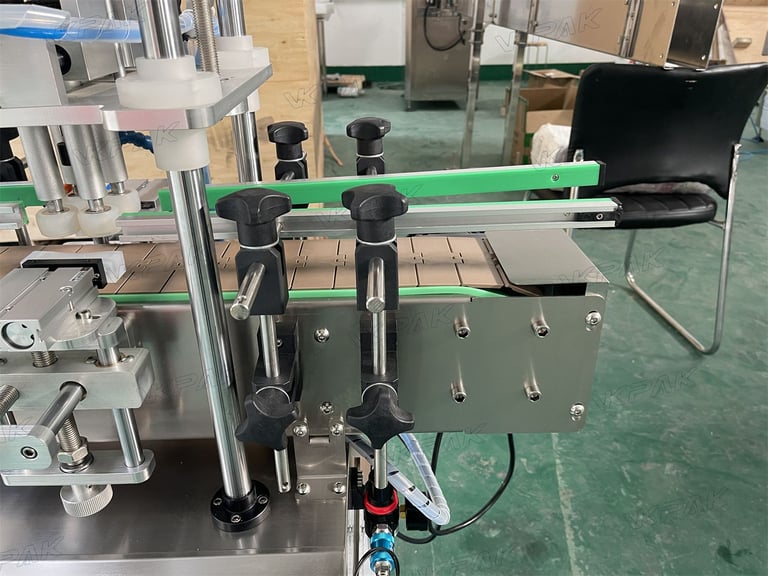

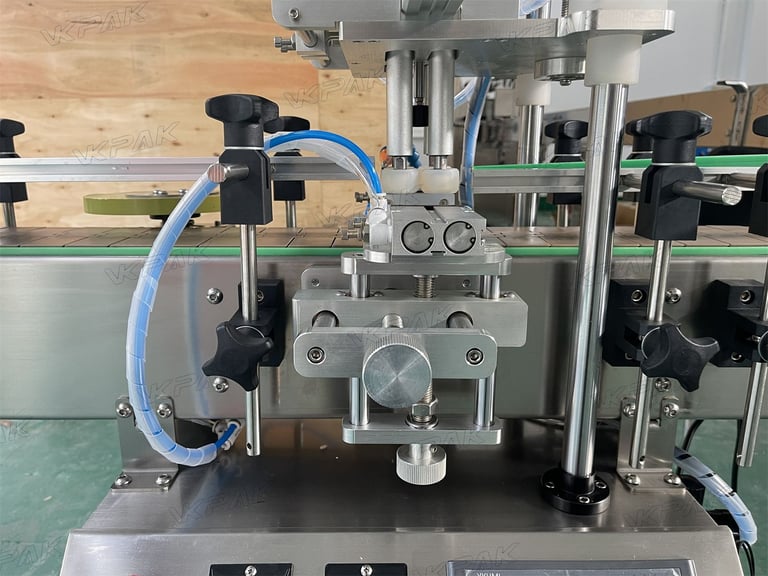

The bottle clamping cylinders, which are mainly used to limit the position of the bottle and to clamp the bottle while capping.

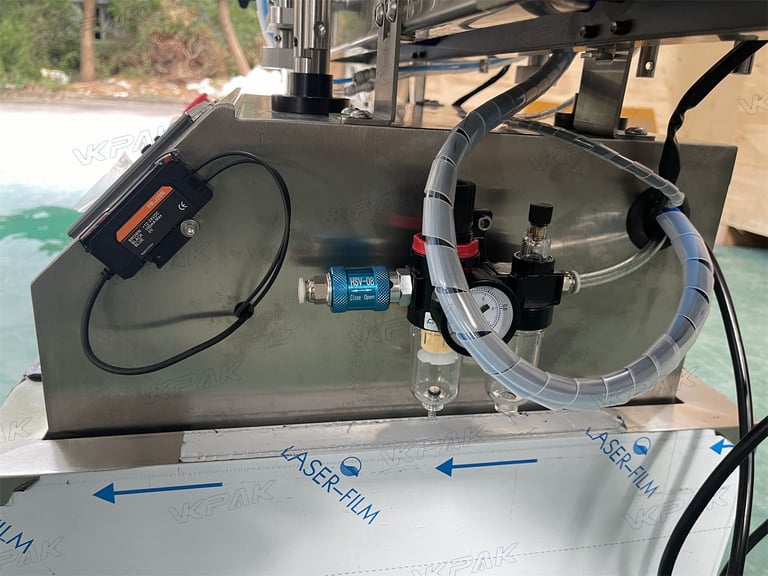

Filter regulator/lubricator combination with meter, witch is used to control air pressure and internal lubrication
