Hammond 302AX Mains Transformer New & Unused
Romford, London
£130
1 of 2
Email address verified
Description

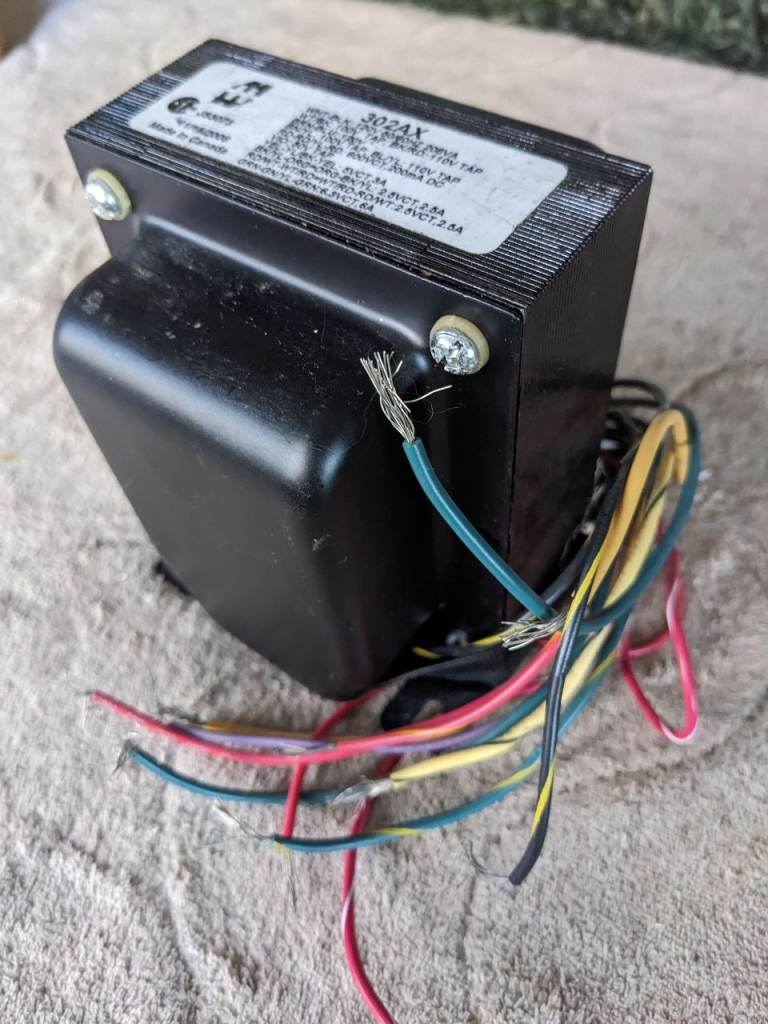

Up for sale a new & unused Hammond 302AX mains transformer (suitable for valve circuitry).
Part Number 302AX
Series High Voltage (Plate) & Filament - 39 VA to 940 VA (300 Series)
Short Description MULTI TAP PRI, 50/60HZ, 198VA
Long Description Transformer, high voltage & filament, 198VA, 600V C.T. @ 230ma., 300 Series
Power Rating (VA) 198
Primary VAC Universal - 100, 110, 120, 200, 220,230, 240 VAC 50/60 Hz
A.C. High Voltage Secondary RMS 600V C.T. @ 230ma.
Bias Tap on High Voltage Secondary w/ C.T. Grounded (VAC) 50
Filament #1 (VAC) 2.5V C.T. @ 2.5A
Filament #2 (VAC) 5V C.T. @ 3A
Filament #3 (VAC) 6.3V C.T. @ 6A
Filament #4 (VAC) 2.5V C.T. @ 2.5A
Mounting Style Vertical ("X")
Great for either HiFi or valve Guitar amp build / replacement.
Can be collected from Romford Essex area, or posted at cost.
