Hotpoint WMBF 742G UK Washing Machine Drum Motor Nidec 2|0|5|8|4.4|5|3 400W 12500RPM Genuine

Description

Genuine Nidec drive motor removed from a Hotpoint WMBF 742G UK (Type LB2006C) washing machine.

This motor was fully working at the time of removal. The machine was stripped due to a cracked drum – the motor itself has no issues.

Specifications:

Specification Value
Manufacturer Nidec Sole Motor Corporation S.R.L.
Type number 20584.453
Hotpoint part number W|1|6|0|0|2|3|8|0|4.03
Voltage 220-240V ~ 50/60Hz
Max RPM 12500 RPM
Power 400W
Current draw 1.9A
Thermal class CL. 155(F) (155°C insulation rating)
Duty cycle S3 (intermittent duty – typical for washing machines)
Condition: Used – removed from a stripped machine. Motor spins freely. Carbon brushes are present (this motor uses brush type C00311010 ). No signs of burning or damage.

What you receive:

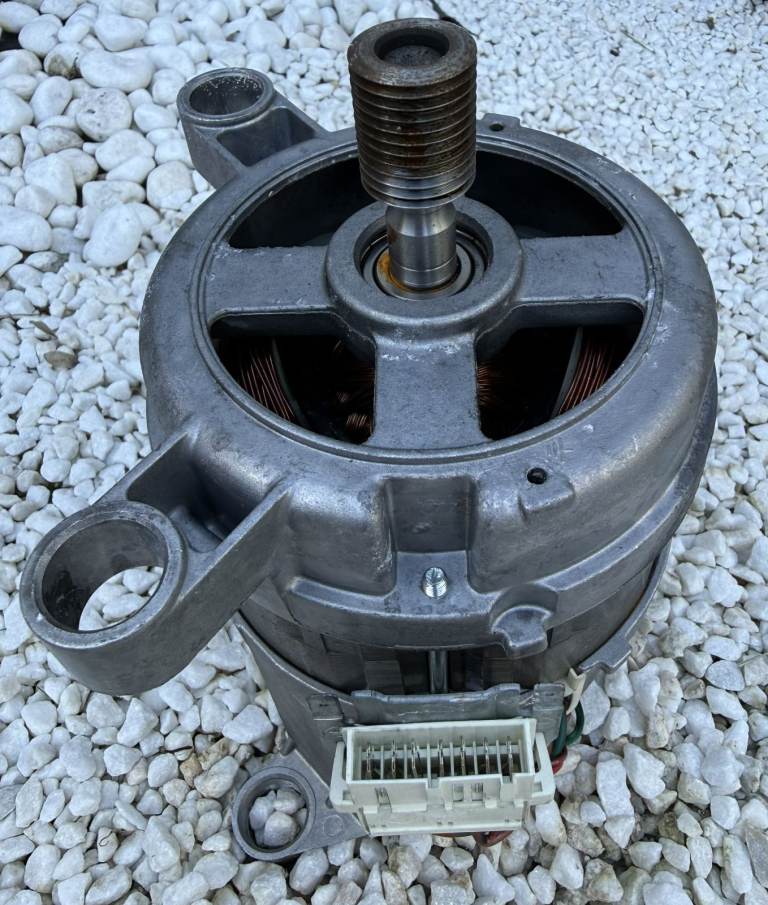

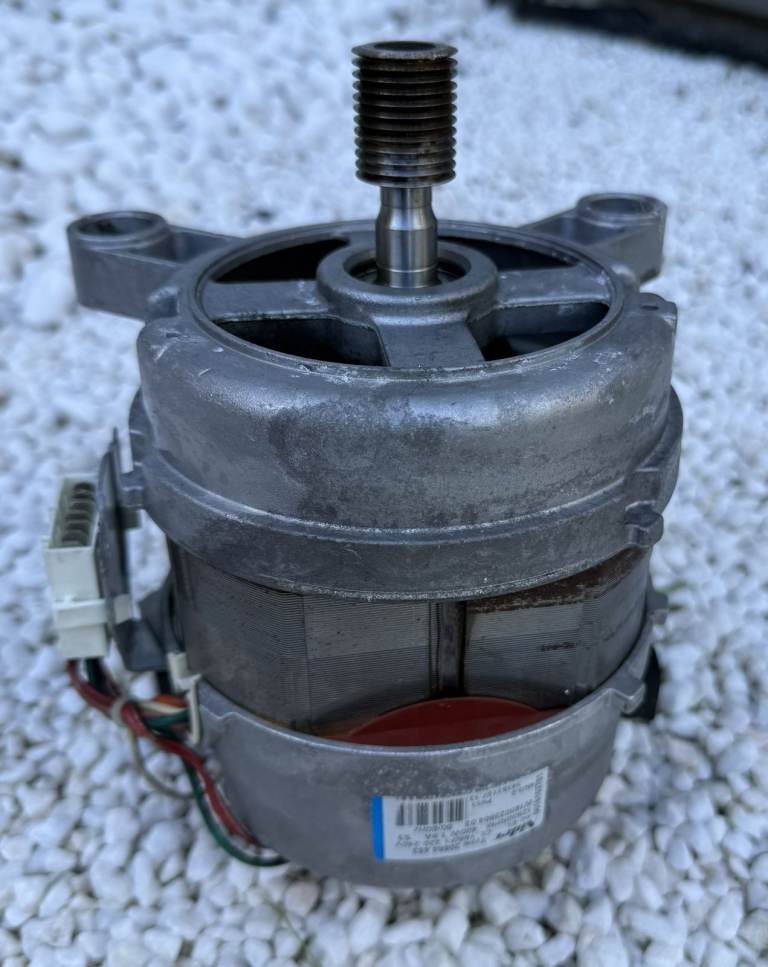

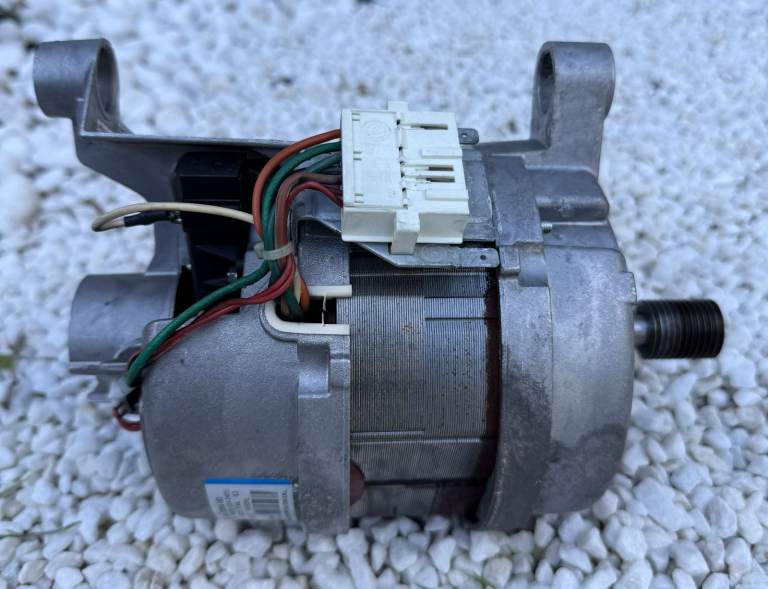

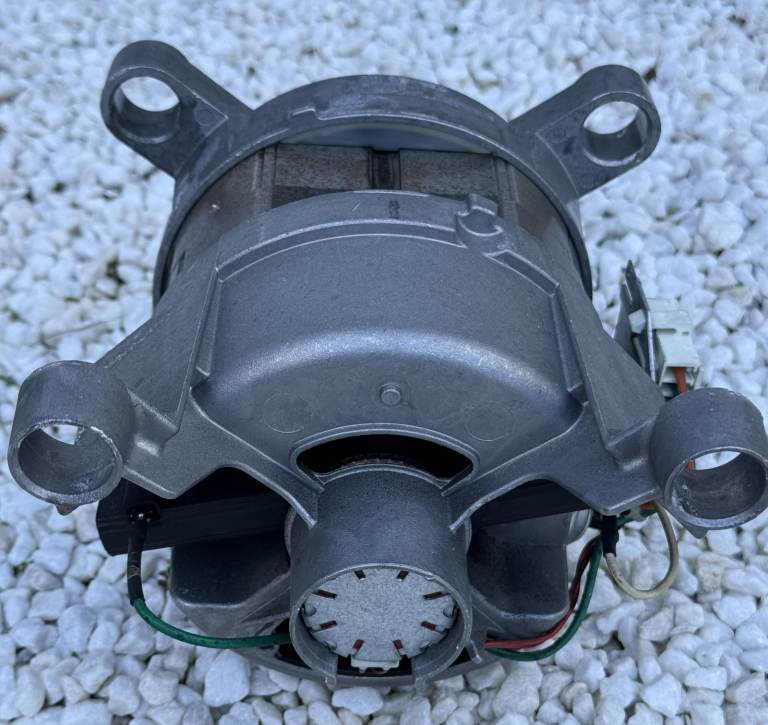

1 x Complete drum motor assembly (as pictured)

No pulley, no belt, no mounting brackets (unless shown in photos)

Compatible models: See the extensive list below. This motor fits over 150 Hotpoint, Indesit, Ariston, and Whirlpool models.

Carbon brushes: If needed, the correct replacement brushes for this motor are part number C00311010 .

Compatibility Information
Based on parts database searches for Nidec 20584.453 and W|1|6|0|0|2|3|8|0|4.03 , this motor is confirmed compatible with the following models :

Hotpoint Models (partial list – over 50 confirmed)
Model Model Model
WMBF 742G UK WMBF 742K UK WMBF 742P UK
WMBF 742P UK.M WMFUG 742G UK WMFUG 742P UK
WMFUG742PUKM WMJLL 742P UK WMXTF 742G UK
WMXTF 742K UK WMXTF 742P UK WMF 540 G (UK)
WMF 540 P (UK) WMF 740 A (UK) WMF 740 G (UK)
WMF 740 K (UK) WMF 740 P (UK) WMF 740 X (UK)
WML 540 G (UK) WML 540 P (UK) WML 740 G (UK)
WML 740 P (UK) WT 640 G (UK) WT 540/1G
WMAO 743P UK.M WMAOD 743G UK WMAOD 743P UK
WMAQB 641P UK WMAQB 741G UK WMAQB 741P UK
WMAQC 641P UK WMAQC 741G UK WMAQC 741P UK
WMAQF 621G UK WMAQF 621P UK WMAQF 641G UK
WMAQF 641P UK WMAQG 641G UK WMAQG 641P UK
WMAQG 741P UK WMAQL 621G UK WMAQL 621P UK
WMAQL 641G UK WMAQL 641P UK WMAQL 741G UK
WMEF 641P UK WMFG 631G UK WMFG 631P UK
WMFG 641G UK WMFG 741G UK WMFG 741P UK
WMSAQG 621G UK WMSAQG 621P UK WMSEF 621P UK
WMSFG 621P UK WMSYL 621G UK WMSYL 621P UK
WMYL 6351 K UK WMYL 6351G UK WMYL 6351P UK
WMYL 641P UK FML 742 G UK FML 742 K UK
FML 742P UK HULT 742G UK.C HULT 742K UK.C
HULT 742P UK.C HV7F 140 P (UK) HV7F 451K UK
HV7L 130 G (UK) HV7L 145 G (UK) HV7L 145 P (UK)
HY6F 3551P UK HY6F 451P UK WDD 740 P (UK)
WDF 740 G (UK).C WDF 740 P (UK) WDL 540 G (UK).C
WDL 540 P (UK).C WDL 754P UK WMD 740 P (UK).R
WT741/2G WT741/2P WT746/2A
Indesit Models
Model Model
IWC 71450 (UK) IWC 71451 ECO UK
IWC 71452 ECO UK IWC 61451 ECO UK
IWD 61430 (EU) IWD 61450 (UK)
IWD 71250 (UK).T IWB 6113 (UK)
IWB 6123 (EU/UK) IWB 6143 (EU)
IWB 61451 C ECO EU EWD 61452 W EU/FR
EWD 71452 W FR EWD71452WUK
EWDC 7145 S FR XWA 61452WUK
XWA 91683XWUK PWC 7145 W (FR)
IWDD 7145
Ariston / Hotpoint-Ariston Models
Model
ARMXXF 145 (FR)
ARXF 125 (EU/FR)
ARXF 145 (EU)
ARXL 125 (EU)
ARXL 145 (EU/FR)
ARMXD 145 (FR)
ARMXL 135 (FR)
ET 1400 (AUS).B
Whirlpool Models
Model
BI WMHL 71453 UK
BI WMIL 71252 EU
BI WMIL 71452 EU/UK
BI WMML 71452 UK
AQS0F 05I CIS
AQS0F 05S CIS
Important note: This list is extensive but not exhaustive. The motor fits most Hotpoint/Indesit 7kg machines from approximately 2010-2018 using the Nidec 20584 series motor
