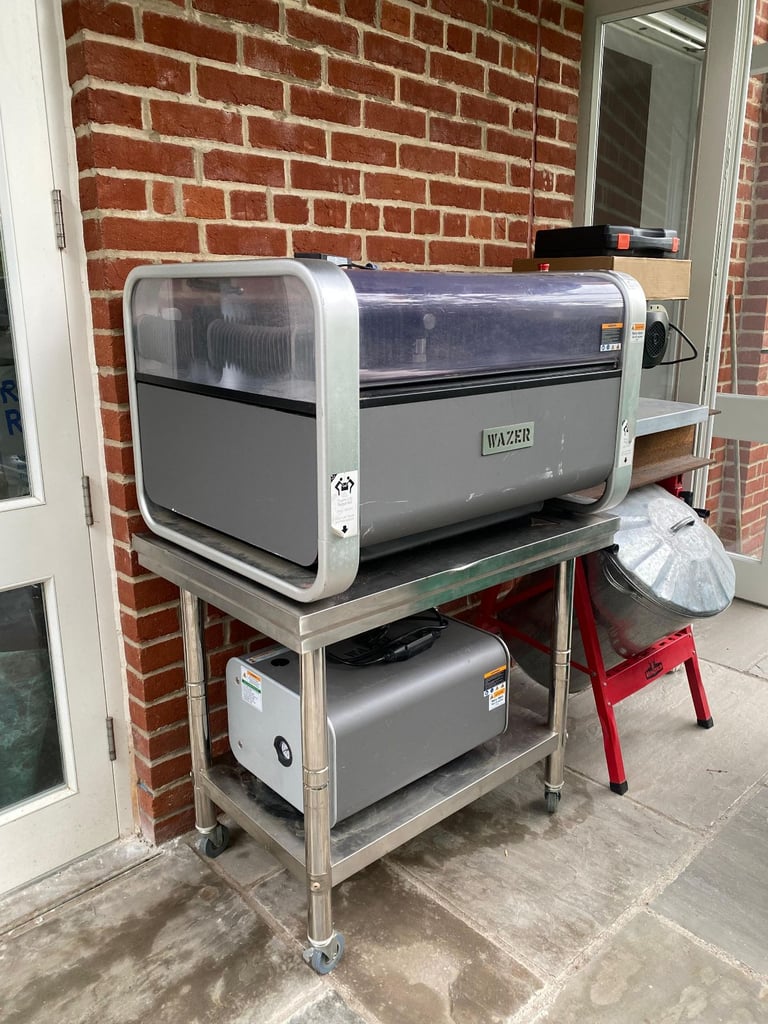

Wazer Desktop Waterjet Cutter

Description

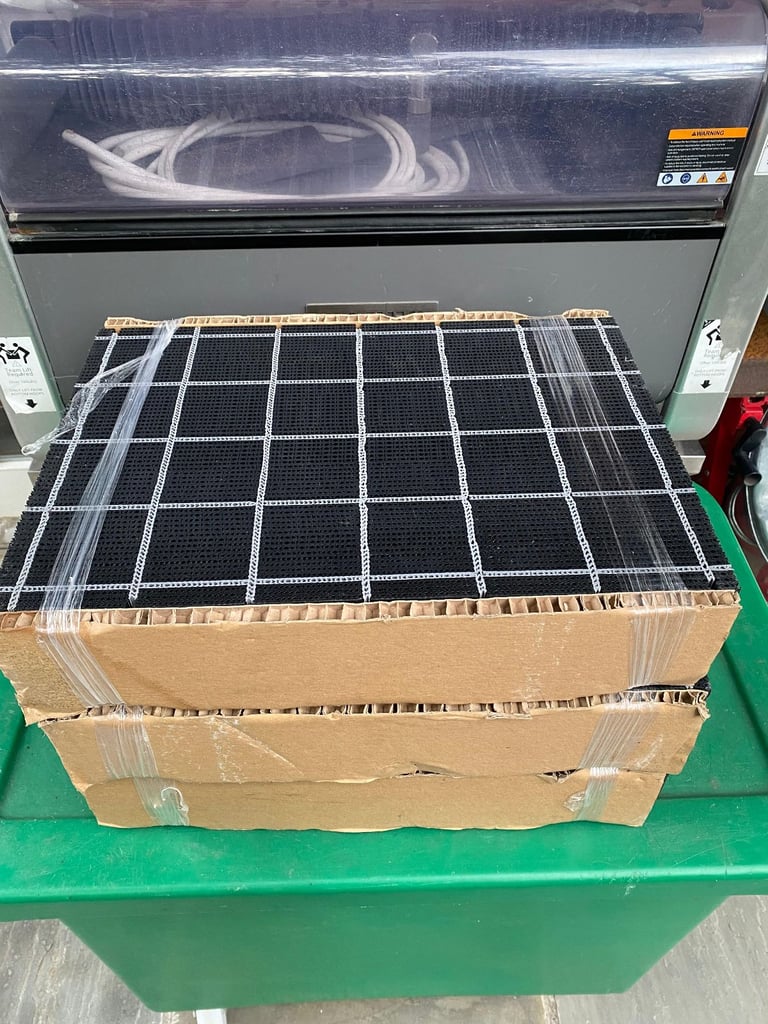

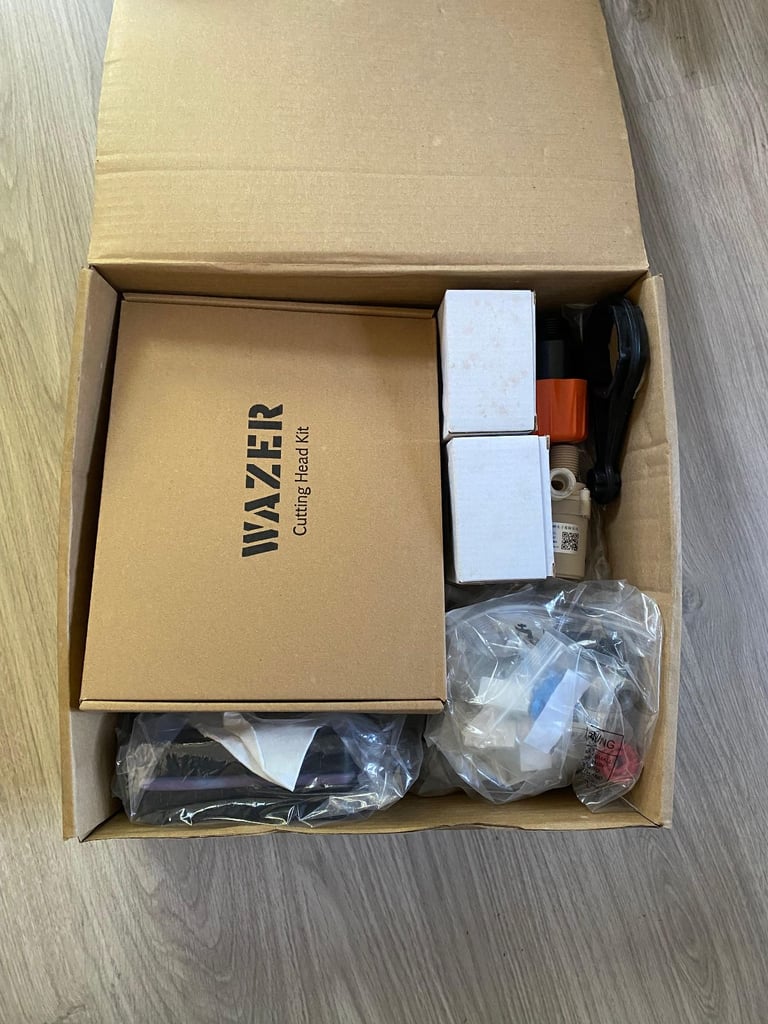

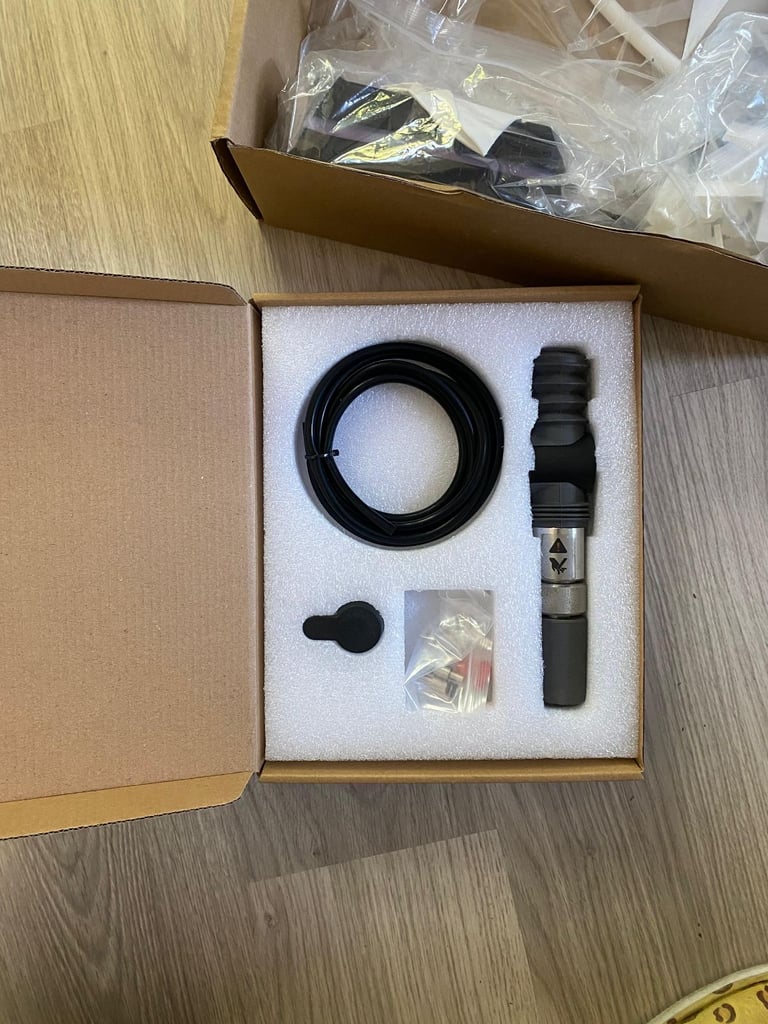

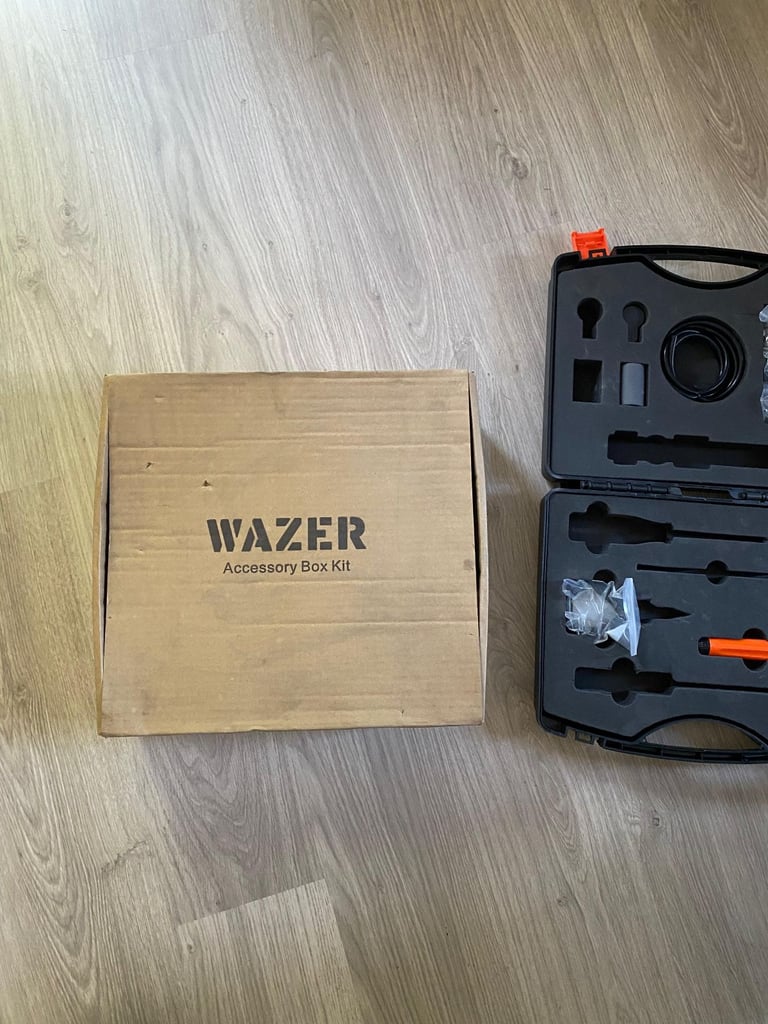

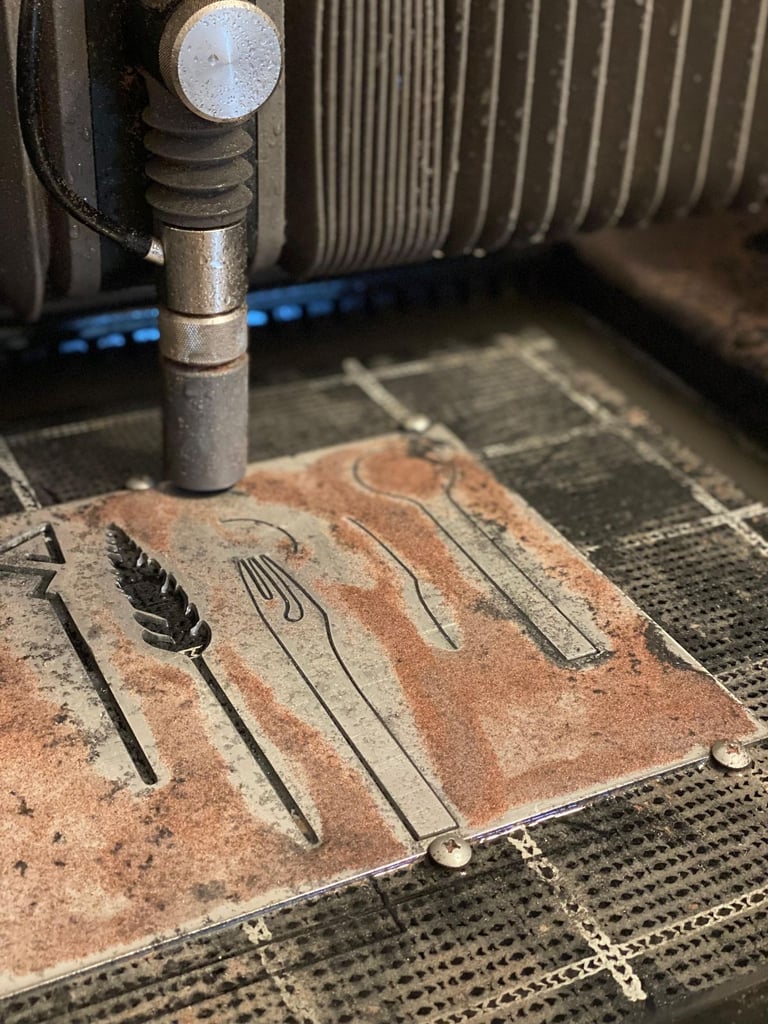

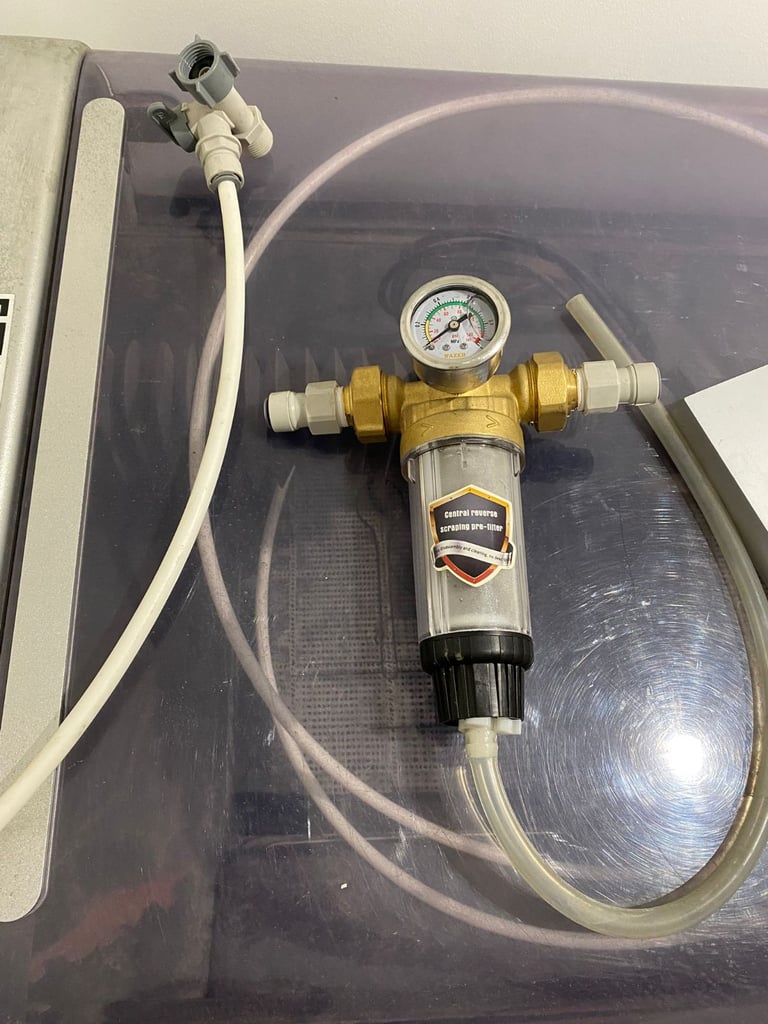

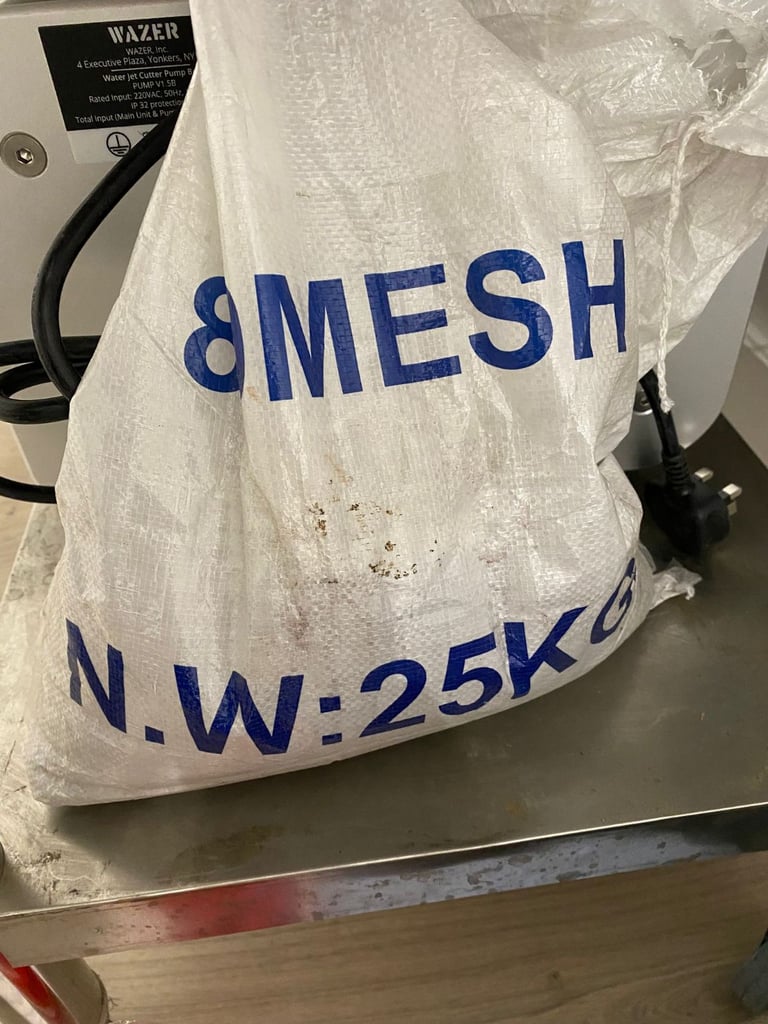

MUST BE SOLD THIS WEEK, FREE DELIVERY TO LONDON ONLY! Bought the Wazer Desktop Waterjet Cutter machine back in 2023. A water inlet filter which comes with 8 Mesh 25kg grit garnet abrasive bag. Full accessories pack and tool box. 3 spare cut beds. Cuts any material. Stainless steel, carbon fibre, marble, acrylic, and also for the precision cutting of tiles, glass, and stone. Collection only from north London.

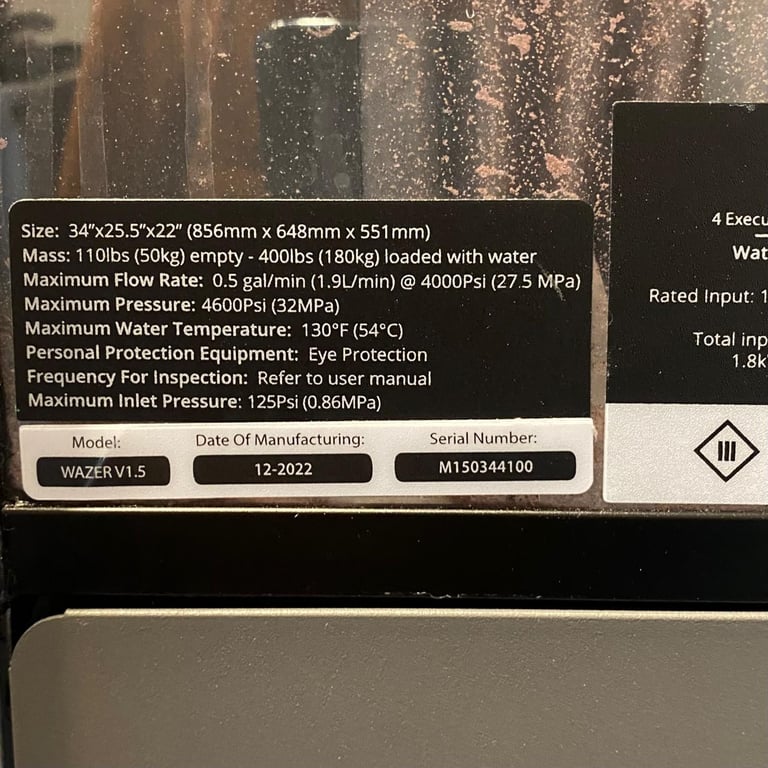

Main Specifications

Waterjet Size

Standup configuration:
34 x 26 x 48 in
856 x 648 x 1220 mm

Desktop configuration:
34 x 26 x 22 in
856 x 648 x 551 mm

Pump Box Size

21 x 15 x 10 in
533 x 379 x 251 mm

Waterjet Main Unit Weight (empty tank)

110 lb
50 kg

Waterjet Main Unit Weight (filled tank)

400 lb
180 kg

Pump Box Weight

92 lb
42 kg

Connectivity

Offline. No internet required to run the Waterjet.

Sound Pressure Level

72.3 dB

Sound Power Level

87 dB

Room Temperature (operating)

32 – 160 °F
0 – 70 °C

Room Temperature (storage)

32 – 104 °F
0 – 40 °C

Power Requirement

110V / 60Hz (North America)
220V / 50Hz (International)

Software Specs

System Requirements

Internet connection required (for software only)

Browser Compatibility

Chrome, Safari, Edge, Explorer, Firefox

Compatible Input Design File Types

.dxf, .svg

Output Cut File Type

.gcode

Connectivity to WAZER Waterjet

SD Card

High Pressure Water Specs

Model

WAZER Desktop

Hydraulic Power

820 W
1.1 HP

Maximum Allowable Working Pressure

4,600 psi
317 bar

Maximum Working Flow Rate (at 7,400 psi for WAZER Pro, and at 4,000 psi for WAZER Desktop)

0.45 GPM
1.7 L/min

Orifice Diameter

0.019 in
0.48 mm

Orifice Material

Ruby or Sapphire

Mixing Tube Diameter (internal)


0.045 in
1.1 mm

Mixing Tube Material


Tungsten Carbide

Cutting Specs

Model

WAZER Desktop

Cutting Area (D x W)


12 x 18 in
305 x 460 mm

Cut Bed Size (D x W)


13 x 19 in
330 x 485 mm

Kerf (width of cut)

0.044 in
1.1 mm

Cutting Materials

Cuts metal, glass, plastic, composites, tile, rubber, foam

Cutting Speed

Depends on Material and Thickness.

Maximum Cutting Thickness


Varies by Material.

Continuous Cutting Time

60 min (prior to refilling the abrasive hopper)

Gantry Max Speed


59 IPM
1,500 mm/min

Gantry Positional Accuracy


0.003 in
0.08 mm
