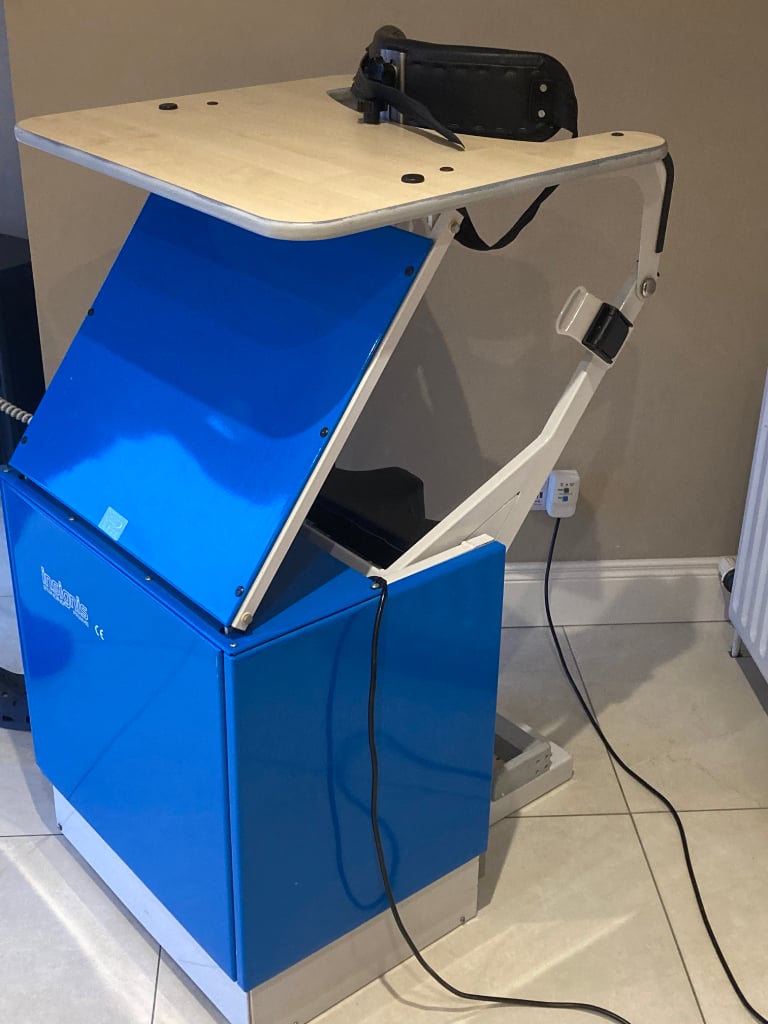

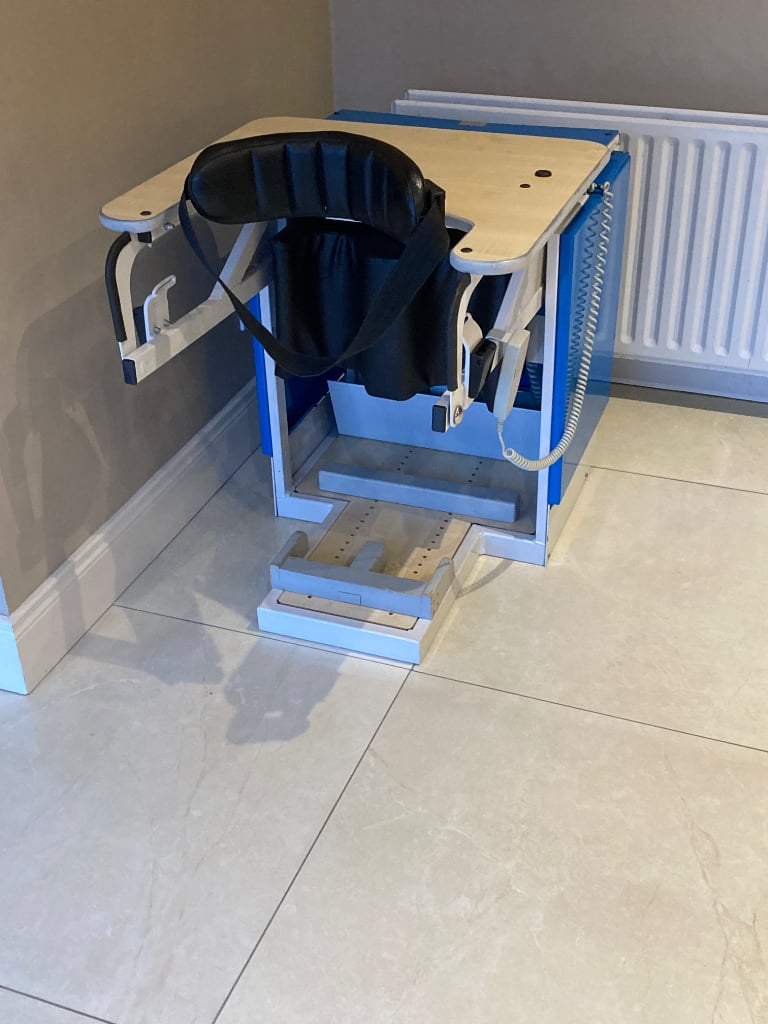

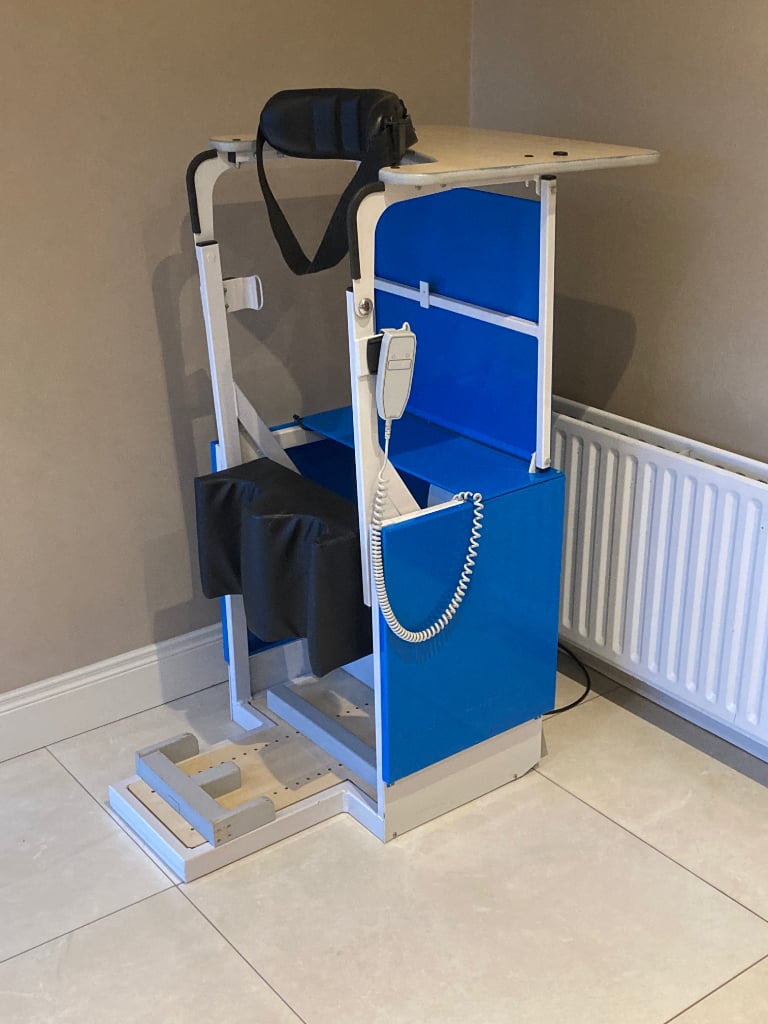

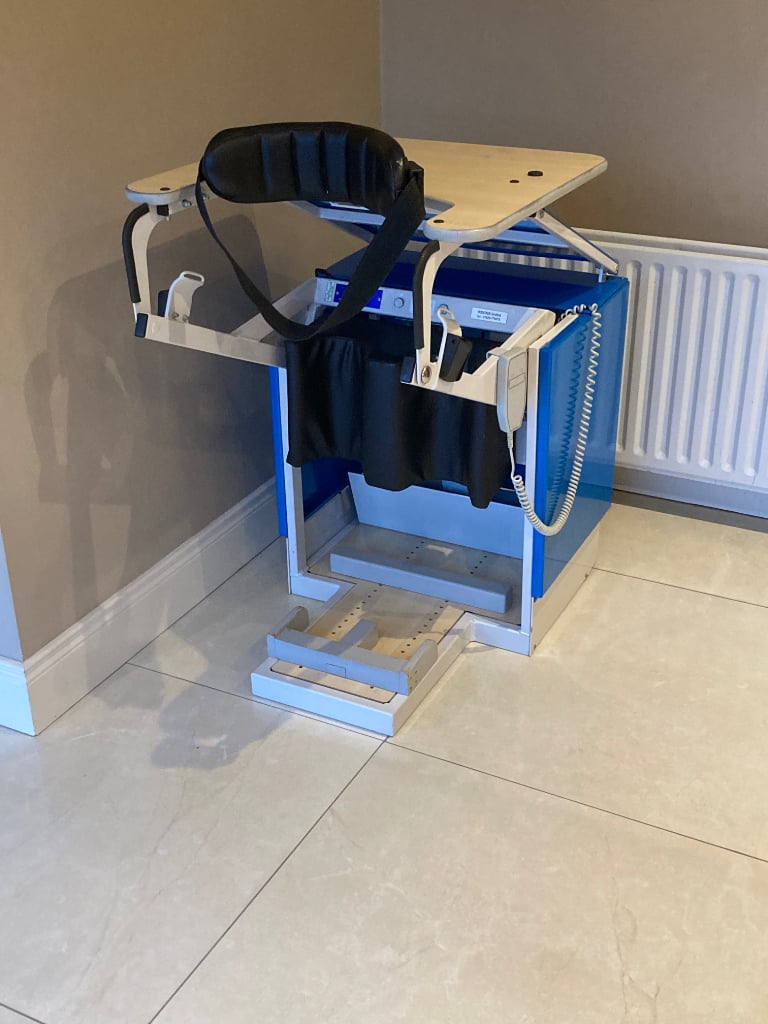

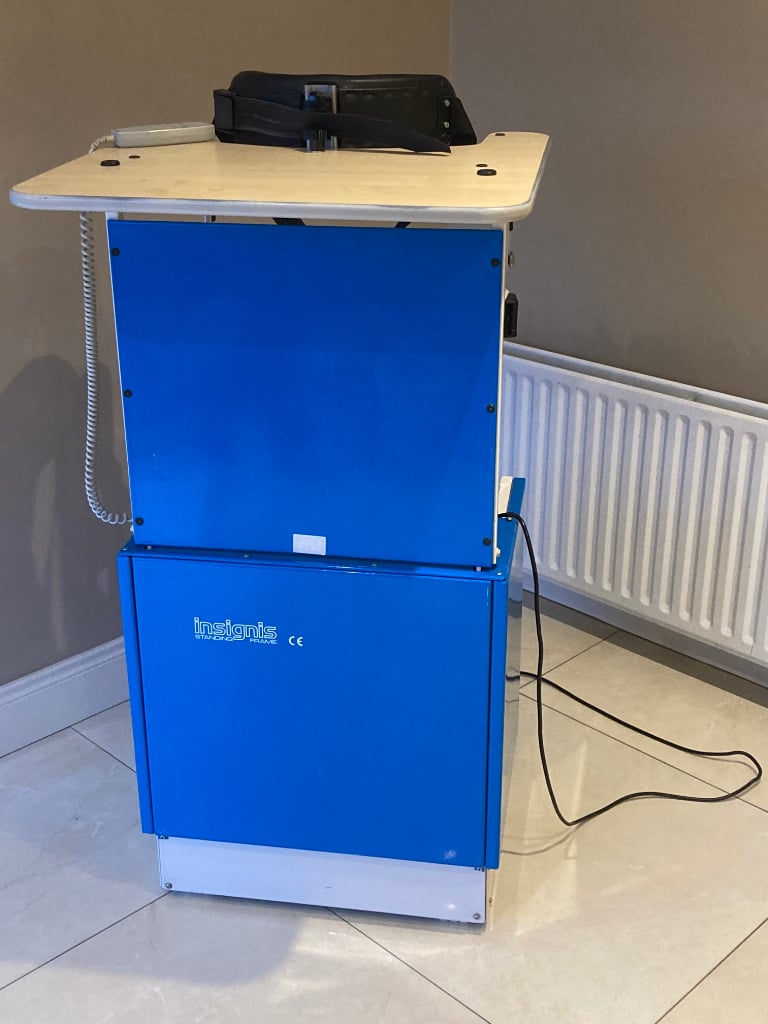

Insignis Standing Frame, sit to stand.

Description

The PSF is very simple to use. A thigh support is placed around the users hips/thighs. The user is then wheeled into the frame after the footrests and arms of the wheelchair have been removed. The users feet are held in place by a toe and heel restraint. The sling is then attached to the frame and a back support is also placed around the user and attached to the frame. The user is then lifted from the wheelchair to a standing position in a gradual, smooth and steady action. The lift is extremely comfortable as the knees are placed against a deep, well padded knee support. However, the strain is taken by the sling at the back of the users thighs. The knees merely act as a hinge point and take very little, if any, pressure. The power for the lift is derived from a standard 240 volt domestic mains supply which in turn powers an actuator housed at the base of the machine. A table top is also lifted up with the user which gives him or her something to focus on and helps disperse fears of falling forward, inherent in many other lifting and standing frames. The lift is controlled by a simple hand held unit which may be operated by the user or a carer or physiotherapist. Some users are able to strap themselves in and carry out the entire lift themselves.

It is also appropriate for use as a Lectern as the front screens present a clean and private screening, most standing frames are completely open at the front.

Specification / Features
Suitable for adults weighing upto 127 kgs.
Safe working load 127 kgs (~20st).
Rear Castors to enable the standing frame to be moved from location to location.
Padded and adjustable waist support/stop. Can be adjusted by hand up and down and back and forth.
Moulded Padded knee supports for maximum comfort
Adjustable feet restraints.
Hand held wired remote control for raising and lowering.
Smooth raising and lowering motion.
Supplied with NEW sling
Optional Hand grips for the worktop are available form the manufacturer.
Fitted with Mains RCD Plug.


Dimensions
Chassis width 590mm (23 1/4”)
Table top (W x D) 630mm (25”) x 585mm (23")
Table top height (sitting) 780mm (30 3/4")
Table top height (standing) 1218mm (48")
Chassis length 750mm (19 1/2”)

Weight ~80 kg
