NEW in box 3 in one JDS3022A Handheld Digital Oscilloscope 2CH 50MHz 500MSa/S Signal Generator / AVO

Description

NEW in the box 3 in one.

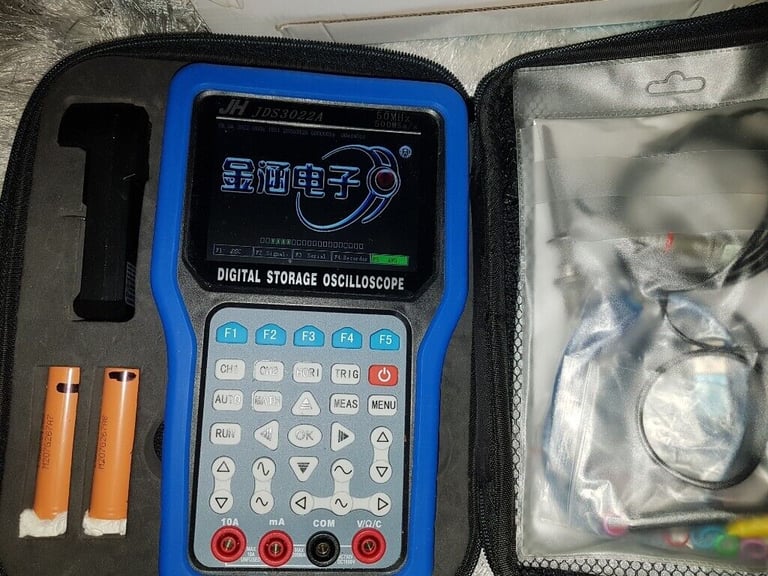

JDS3022A Handheld Digital Oscilloscope 2CH 50MHz 500MSa/S Signal Generator /AVO multi-function tester AC110-220V

Features:

imum bandwidth of 50MHz, sampling rate of 500MSa, storage depth of 16Kpts,
Multi-function, oscilloscope, signal generator, multimeter function in one
The simple operation panel is more intuitive. The buttons are comfortable and not easy to wear out
Color TFT LCD display, 400*272 resolution, form display is more clear and stable
Energy saving, super long standby, ultra-low power consumption, working continuously for 5 hours


Specification:

Oscilloscope JDS3022A
Sampling Rate

500MSa/S

Channel

2

Bandwidth

50MHz (Channel 1) 30MHz(use dual channel)

The vertical resolution

8 bits

Vertical sensitivity

10mV-5V（Probe 1X）100mV-50V（Probe 10X）1V-500V（Probe 100X）（1,2.5,5 Stepping）

The vertical accuracy

+/- 3%

The input impedance

1M& ; 25pF

Input coupling

DCAC

Display mode

X-Y;Y-T

Input voltage

40V(x1);400V(x10);4000V(x100)

The time base

10ns-50ms(1,2.5,5Stepping) 100ms-5s(Scan)

The storage depth

16k per channel

Trigger Mode

Automatic, normal and single

Trigger Type

The rising edge, falling edge

Automatic detection

Support（50Hz-60MHz）

Measurement:

The peak to peak value, duty cycle, frequency, cycle

Cursor

Time, voltage

Screen

4.3 inch 16 bit true color TFT 400*272



Multimeter

The full scale reading

6000 count

DC voltage

60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 1000V.

AC voltage

60.00mV, 600.0mV, 6.000V, 60.00V, 600.0V, 750V.

DC current

60.00mA/600.0mA, 6.000A/10.00A.

AC current

60.00mA/600.0mA, 6.000A/10.00A.

Resistance

600.0& ;, 6.000k& ;, 60.00k& ;, 600.0k& ;, 6.000M& ;, 60.00M& ;.

Capacitor

40.00nF, 400.0nF, 4.000μF, 40.00μF, 400.0μF, 4000μF(30sec.).

Diode

0V~2.0V.

On-off detecting

in 600& ; gear detection, buzzer when less than 30 & ;

The signal generator

Frequency

0Hz - 20MHz (square 5M)

Duty ratio

0% - 100%

Amplitude

100mV - 4V

Offset

+- 0V - 2V



Serial Center

Baud rate

115200 - 1200

Data bits

8, 9

Parity bit

NO,ODD, EVEN

Stop bit

1, 0.5, 2, 1.5

Hex

10, 16

Recorder

Time base

100ms - 5s

Basic parameters

Voltage
AC110-220V
Plug type
EU plug,US plug (Optional)
Battery
1 * 18650 3.7V 3600mAh(is included)
Size
226*138*40mm/8.9*5.4*1.6in
Weight
Approx.1450g/51.1oz

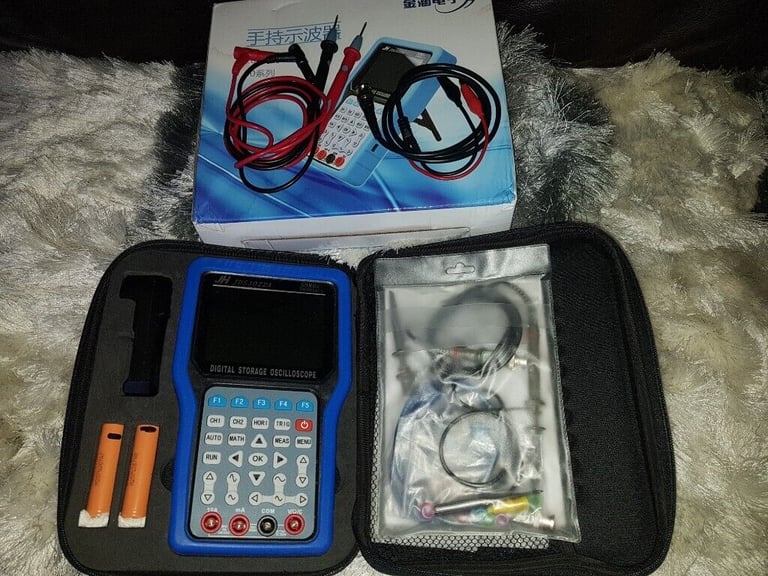

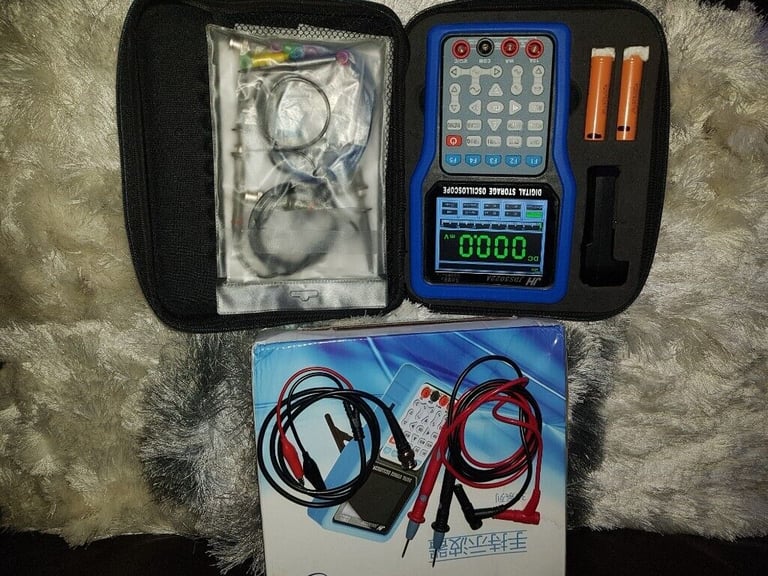

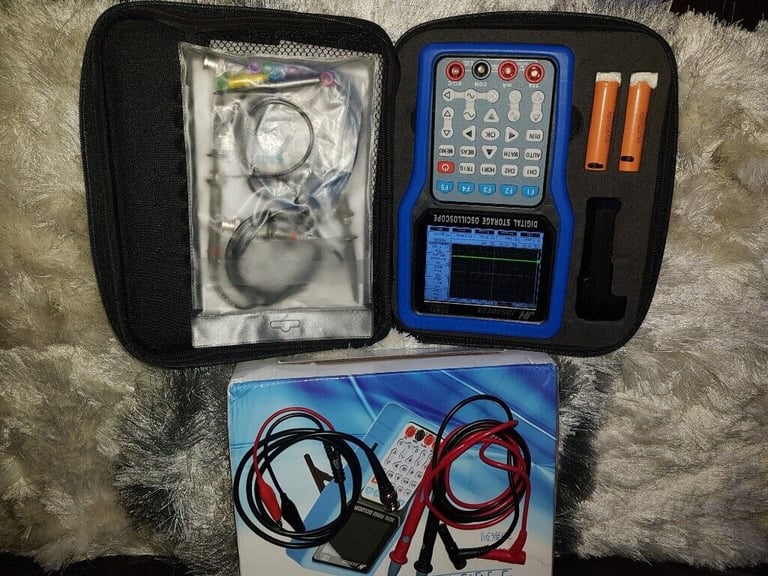

Package list:

1 * Digital Signal Generator(Battery is included)
2 * oscilloscope probe
2 * test lead
1 * plug
1 * USB cable
1 * BNC to crocodile clip test cable
1 * screen protector
2 * locating sleeve
1 * adjust tool
8 * id ring

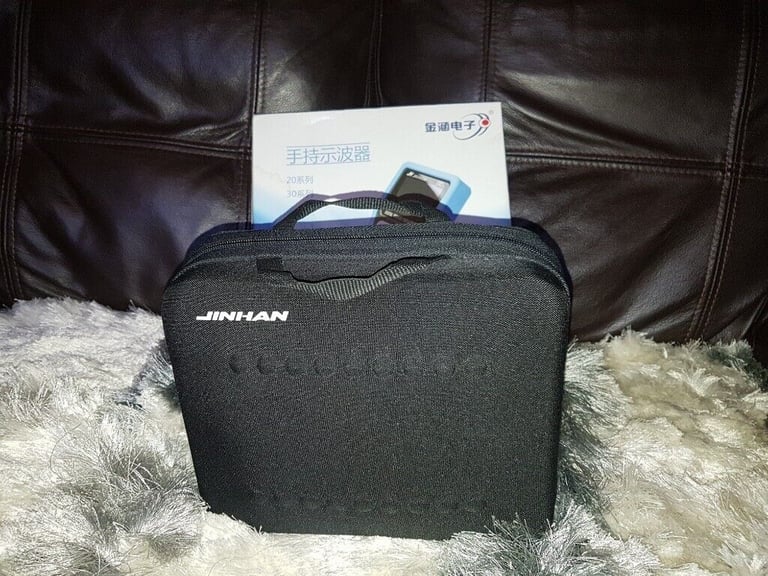

1 * black bag
1 CD
