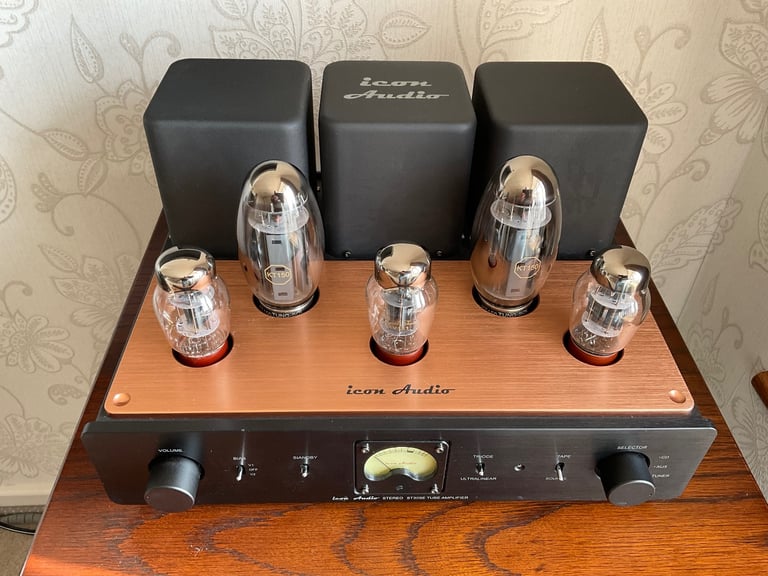

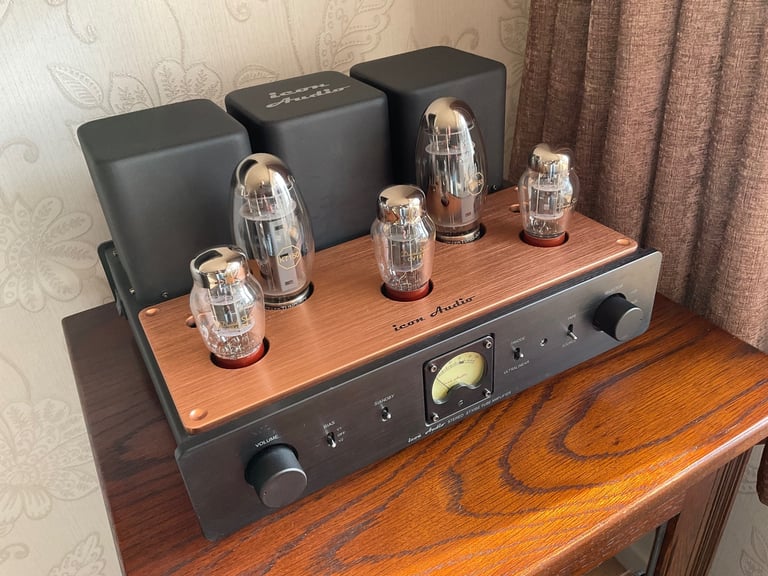

Icon Audio Class A Stereo Valve Amplifier Model 30SE KT150 with Remote Control

Description

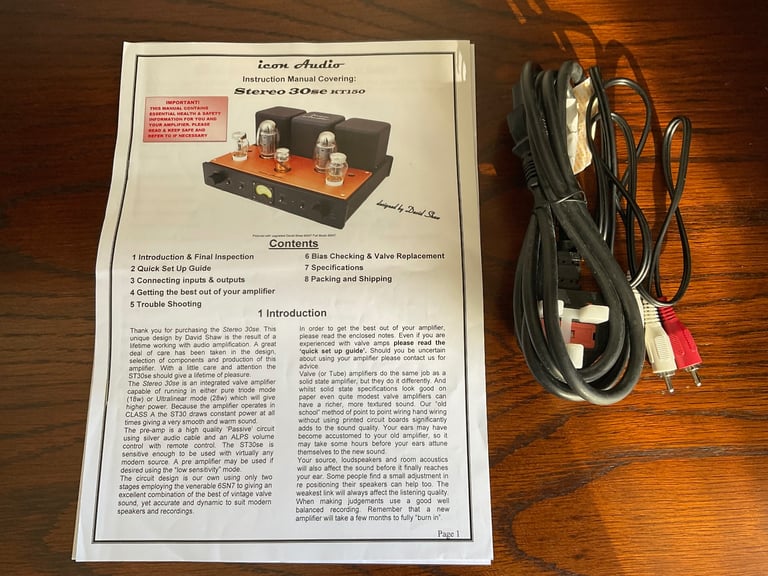

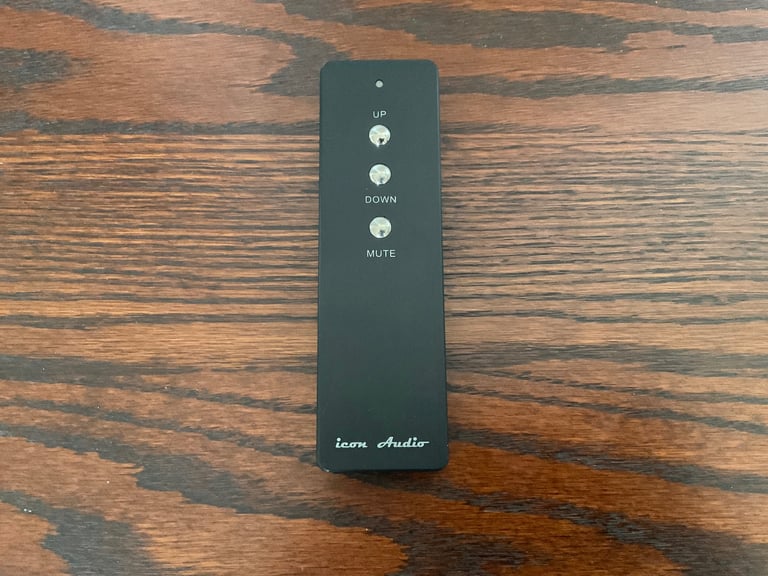

This is a Single Ended 100% “Pure class A” Stereo Valve Amplifier and was voted Hi Fi World amplifier of the year. It is in full working order and in excellent cosmetic condition. Output valves have been checked and set for bias. The amp has had little use since new and therefore there is plenty of life in the valves. Includes Remote Control, Instruction Manual, Power Lead and RCA lead.

The Current RRP is £2899.95.


Cash on collection from Halesowen (B62 8SP) where the amplifier can be demonstrated.

Voted Hi Fi World Valve Amplifier Of The Year
Beautifully Simple “Single Ended Design”
100% “Pure class A”
28+28 Watts Ultra Linear
18+18 Watts Triode
Remote Control Volume

Designed in Leicester by David Shaw, hand built using only “point to point “wiring without the cheaper Printed Circuit Boards, using full sized audiophile components. Having power enough to drive almost any loudspeaker also having “Pure Triode” option for those preferring a “warmer” presentation.
Icon Audio amplifiers are made to be easily serviced, and the dedicated service centre in Leicester are there to help.

So called “SINGLE ENDED” amplifiers are where only one output valve is used for each channel, this results in ultra-smooth “Pure Class A” performance from the most simple design possible, with an absolute minimal audio path. Previously, affordable Single Ended designs have been low powered at around 9-13w. The excellent new KT150 valve enables more than double this power for the same cost, allowing the use of less efficient speakers to enjoy this format.

Specifications and Features
· 100% Pure Class A output power
· Class A, all Triode driver stage
· Output power Triode (18W). Ultralinear (28W)
· Choke regulated power supply
· 2x KT150 output valve
· 3x 6SN7 (CV181) double triode
· All hand wired point to point
· Signal to noise level -98db
· Freq resp 20 - 20kHz +0 –0.8db 45kHz -3db(8w)
· THD typically less than 0.5% 1khz (8w)
· 4 & 8 ohm loudspeaker taps
· Low feedback design
· Switchable gain control.
· SCR audiophile caps, Mundorf upgrade option
· Silver plated copper PTFE audio cable
· Tertiary winding output transformers
· Big custom wound PSU Choke

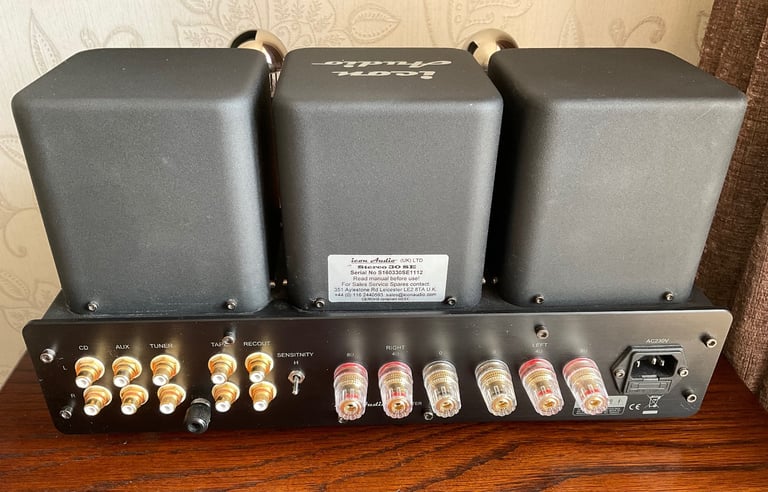

· Gold plated Input & speaker terminals
· 200mv (high) & 500mv (low) input sensitivity.
· 220/240volts 160w approx.
· Size 380mm wide 300mm deep 240mm high
· Packed weight 28 kg
