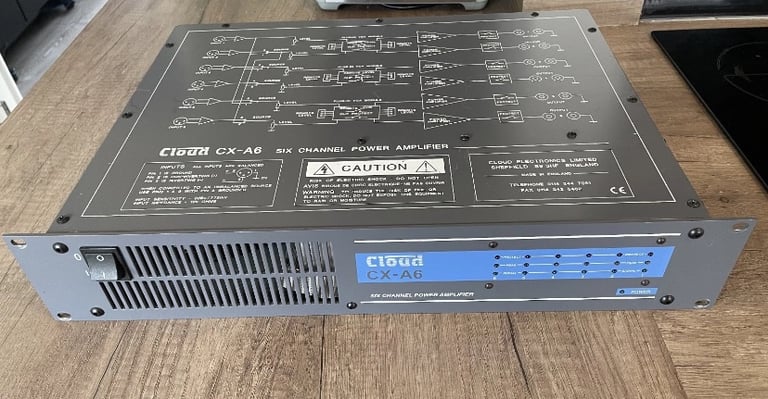

CLOUD CX-A6, 6 x 120W PER CHANNEL POWER AMPLIFIER, GREY, 19" RACKMOUNT 2U.
Meadows, Nottinghamshire
£85
1 of 5
- Posted
- 13 days ago
- Seller Type
- Private
Description

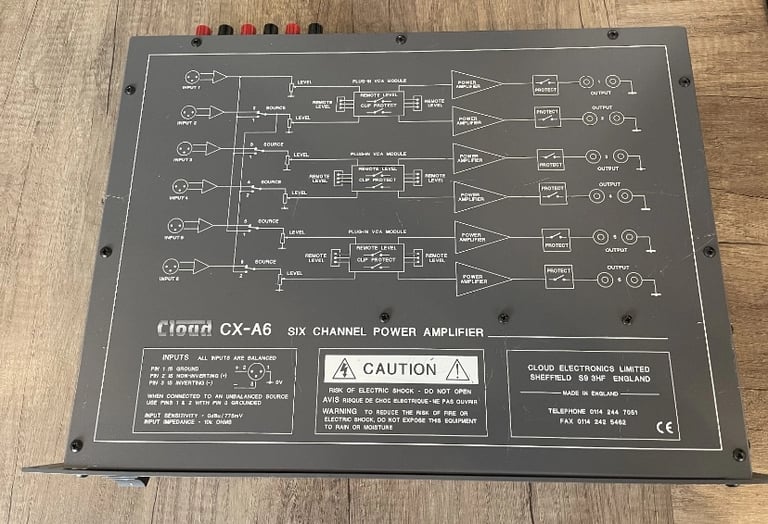

The Cloud CXA6 is a versatile and innovative multi channel amplifier.
It exhibits low levels of noise and distortion, and utilises the highest quality components, ensuring outstanding sound quality and rugged durability.
Plug in VCA modules are available for applications where remote level control is required.
Line distribution systems of both 70V and 100V are also catered for with the optional high performance transformer modules.
Features
6 channel, 6 x 120W
Connection for one of three optional modules
VCA-2 2 channel remote level control (Optional)
2 channel equaliser module for Bose model 8 or model 32 loudspeakers (Optional)
External 100W 70V/100V line transformer module (Optional)
CXL-800 is a 2U rack-mounted housing for up to 8 x CXL-100T (Optional)
Input routing options simplify terminations when some channels share a signal
Comprehensive protection ciruitry
LED indicators for signal, clip and protect
Forced cooling by 2 speed DC fan
•
General Specifications
•

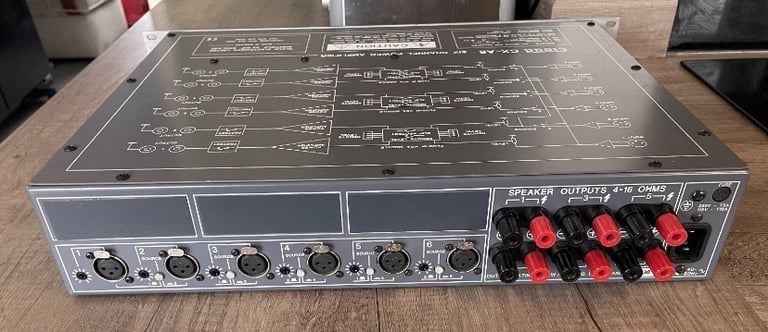

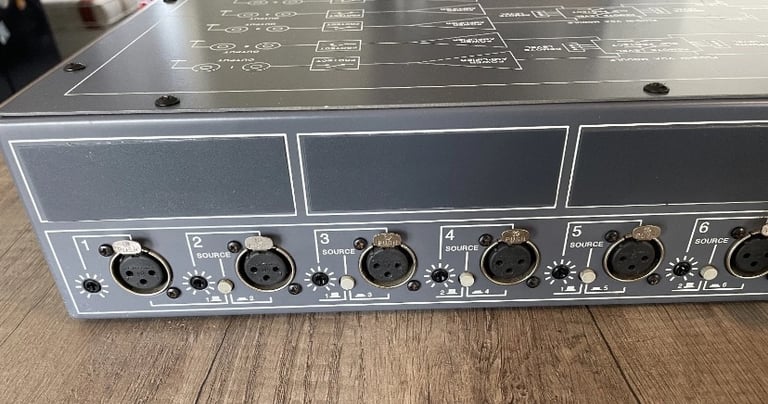

Inputs - Balanced via 3 pin XLR type connector.

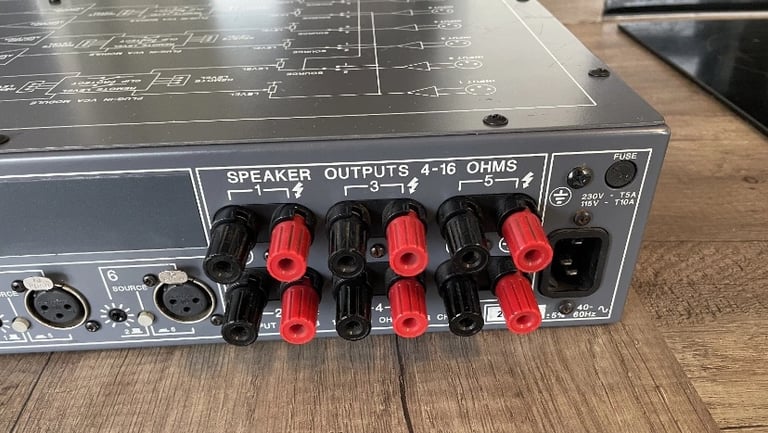

Outputs - Binding Posts for flexible cables up to 2.5mm²
Protection - VI limiting, DC offset, Thermal and Switch-on Delay
Status Indicators - LED indicators on each channel for Signal, Peak & Protect
Cooling - Force cooled using a two speed DC fan.
Dimensions - 482.6mm x 88.0mm (2U) x 325.0mm deep (+ connectors)
Weight - 10kg net
Technical Specifications
Rated output - 120 watts/4 ohm load 85 watts/8 ohm load
Bridged Output - 240 watts/8 ohm load
Frequency Response - ±1dB 10Hz to 50kHz
THD - <0.005% 1kHz <0.05% 20Hz/20kHz 8 1dB below rated output
VCA Module THD - <0.03% 20Hz/20kHz
Input Sensitivity - 0dBu (775mV)
Input Impedance - 10k balanced / 5k unbalanced
Noise - >90dB below rated output
Slew Rate - 35V/μS (power amplifier)
Power Input - 230V ±5% (115V ±5% available)
Fuse rating - 230V - T5A H 115V - T10A H
ANY QUESTIONS PLEASE MESSAGE ME THROUGH HERE.
Ad ID: 1504183027
