X3 BG Storm WP22 Outdoor Double Socket IP66

Description

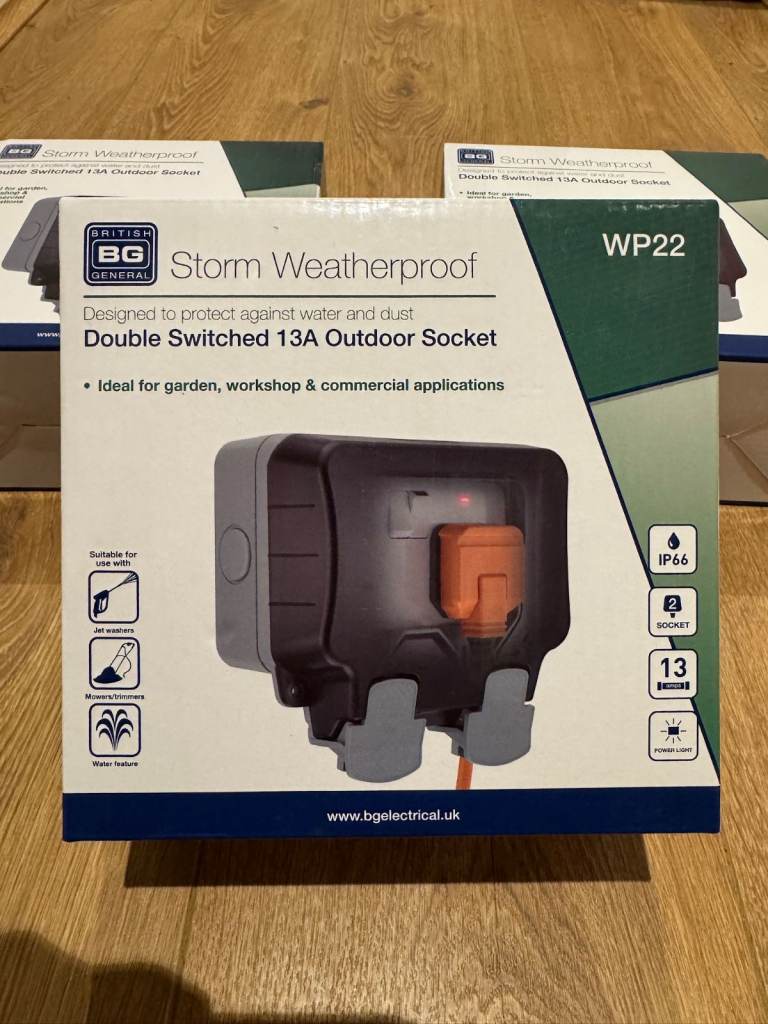

BG WP22: 2 Gang Outdoor Switched Socket - Weatherproof & Reliable Outdoor Power

The BG WP22 is a robust and reliable 2 Gang 13A Outdoor Switched Socket designed for safe and dependable power in outdoor environments. This high-quality socket is part of the BG Nexus Storm Weatherproof range, offering superior protection against the elements.

Featuring an ergonomically designed, see-through cover with a "stay-open" function, the WP22 provides easy access while maintaining a high level of weather resistance. With multiple gland entry options and angled, in-line, color-coded captive terminals, installation is quick and hassle-free.

Reliable Weatherproof Design: IP66 rated, even when the plug is in use (with the cover closed).
Durable Construction: High-impact, UV-stable housing withstands harsh weather conditions.
Enhanced Safety: Neon power indicators provide clear visibility of power status.
Flexible Installation: 8 x 20mm cable entry points and 1 x drill-out entry (20/25mm) offer versatile installation options.
Features of BG Electrical WP22 Outdoor Socket Outlet Include:

2 Gang Outdoor Weatherproof Socket
Ergonomic See-Through Cover with "Stay-Open" Design
IP66 Rated Even When Plug is in Use (cover must be down)
High Impact UV Stable Housing
High Level of Protection Against Ingress from Water Jets and Dust
Neon Power Indicators
8 x 20mm Cable Entry Points - 1 in Each Side, 3 in Top, 3 in Bottom
1 x Drill Out Entry 20/25mm in Rear Face
Double Pole
Amps: 13A
Angled, Colour Coded Terminals
Multiple Knockout Mounting Box Supplied
Terminal Capacity: 3x 2.5mm², 3x 4.0mm², 2x 6.0mm²
Contact Gap: 3.0mm Minimum
Height: 154mm
Width: 171mm
Depth: 80mm
Standards: BS 1363-2
