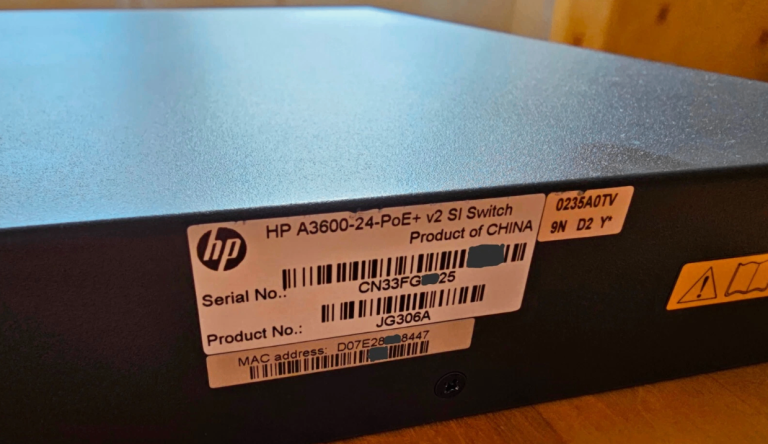

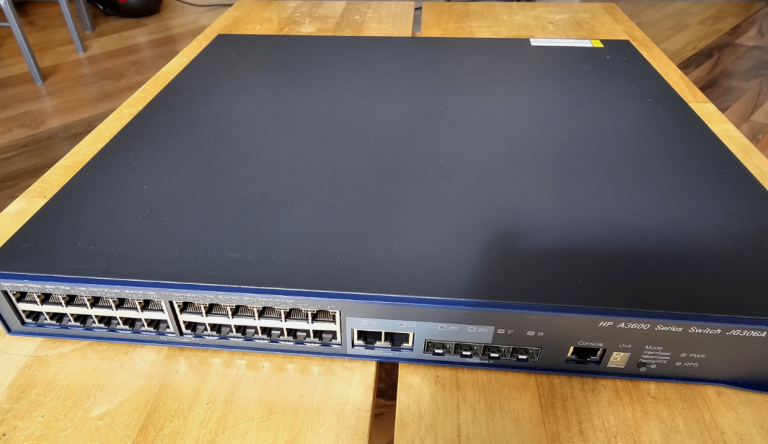

HP A3600 Series JG306A 24-Port PoE+ v2 SI Ethernet Switch

Description

HP still sells it for £536.52 + £35 delivery

- 24 RJ-45 autosensing 10/100 PoE+ ports (IEEE
- 802.3 Type 10BASE-T, IEEE 802.3u Type
- 100BASE-TX, IEEE 802.3at PoE+); Media Type:
- Auto-MDIX; Duplex: half or full
- 4 SFP 1000 Mbps ports
- 2 dual-personality 10/100/1000 ports (IEEE 802.3
- Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,
- IEEE 802.3ab Type 1000BASE-T)
- 1 RJ-45 serial console port

- 16.54(d) x 17.32(w) x 1.72(h) in. (42.0 x 44.0 x 4.36 cm) (1U height)
- 10KG

- 256 MB SDRAM, 128 MB flash; packet buffer size: 2 MB

- Mounts in an EIA-standard 19 in. telco rack or
equipment cabinet

- 1000Mb latency < 6 µs
- 1000Mb latency < 5 µs
- Routing/Switching capacity 12.8 Gbps
- Throughput 9.5 million pps (64-byte packets)

With AC input, the maximum power consumption is
460 W; PoE is 370 W. With DC input, the
maximum power consumption is 795 W; PoE is
720 W.

Managment: IMC - Intelligent Management Center; command-line
interface; Web browser; SNMP Manager
