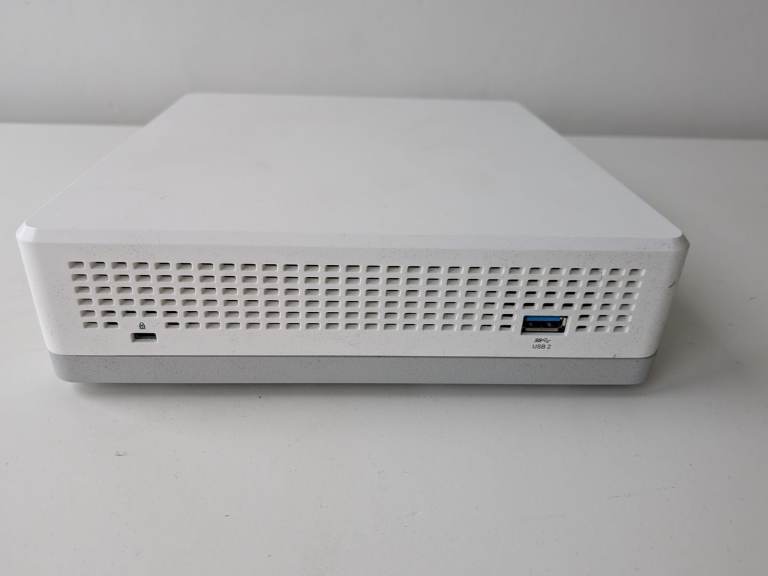

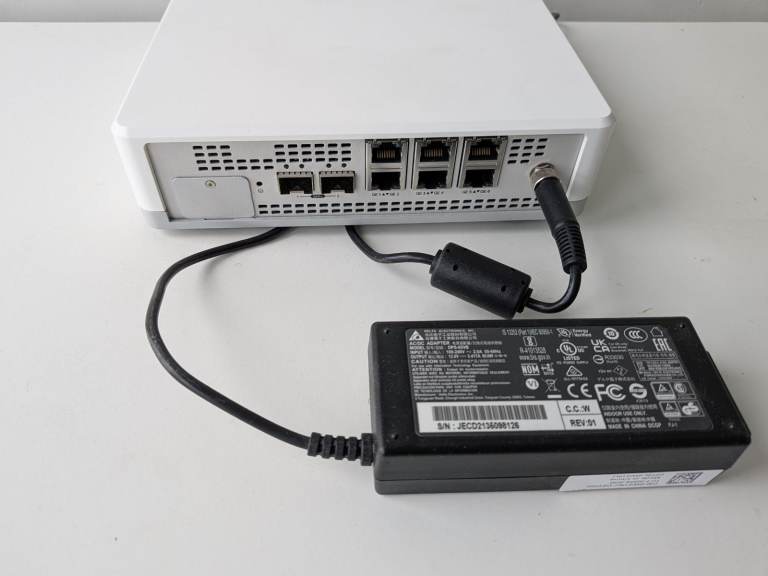

Dell VMware Edge 640 appliance with Power Adapter

Description

The Dell EMC SD-WAN Edge 640 appliance

This is a high-performance branch office appliance featuring an Intel Atom C-3000 Denverton 8-core processor, 32GB of RAM, and 240GB M.2 SSD storage alongside 16GB eMMC flash. It delivers a maximum throughput of 1 Gbps (rising to 3 Gbps in 1300-byte packet scenarios) and supports up to 400 tunnels and 1.9 million concurrent flows.

Key hardware specifications include six 1G copper ports and two 10G SFP+ ports, along with standard 802.11b/g/n/ac WiFi and Bluetooth capabilities. Unlike the lower-end 610 model, the Edge 640 supports third-party Virtual Network Functions (VNFs) and includes Quick Assist Technology (QAT) for accelerated security encryption.

While specific pricing is not listed in the provided documentation, a 2022 Dell price list indicates a list price of $1,059.45 for the VeloCloud VMware Edge 640 (SKU 210-ASHQ) and $2,484.00 for the VLA VMware SD-WAN Edge 640 Appliance (SKU AB307566). The device comes with VMware SD-WAN software preinstalled and is designed for small-to-medium branch locations or service provider edges.

Feature Specification
CPU Intel Atom C-3000 Denverton (8 Core)
Memory 32 GB DDR4
Storage 240 GB M.2 SSD + 16 GB eMMC Flash

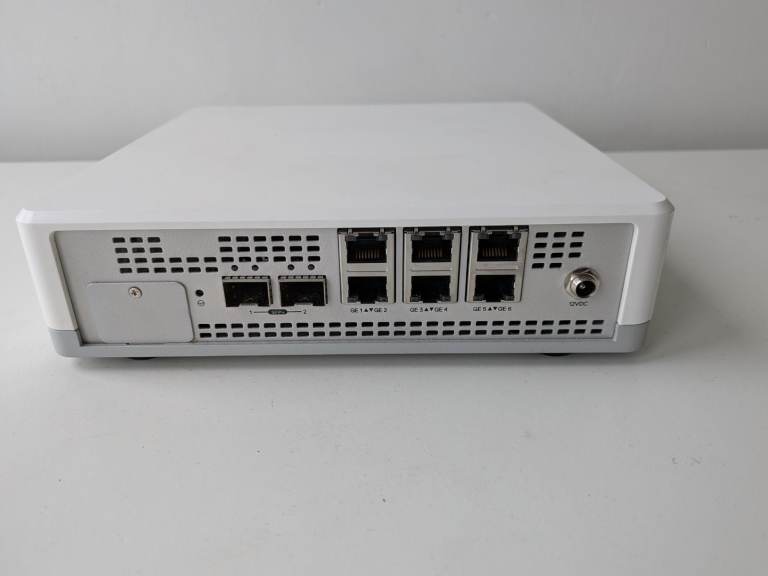

Network Ports 6 x 1G RJ45, 2 x 10G SFP+
Max Throughput 1 Gbps (Standard), 3 Gbps (1300-byte)
Tunnel Scale 400 Max Tunnels
VNF Support Yes (Third-party)
WiFi 802.11b/g/n/ac, 2x2 MIMO
