New rear suspension for a quad bike or pit bike

Description

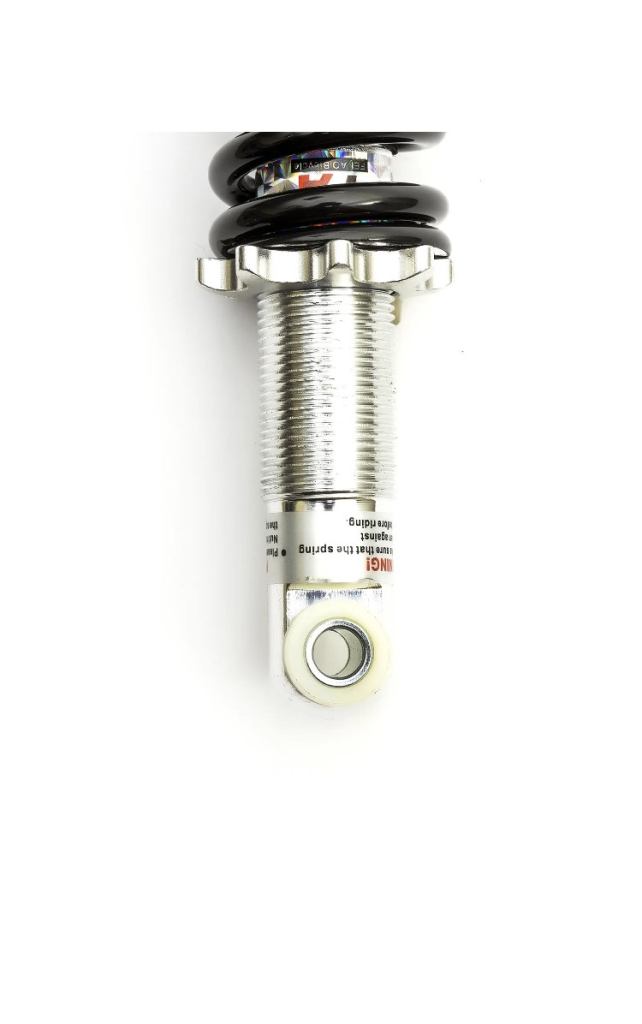

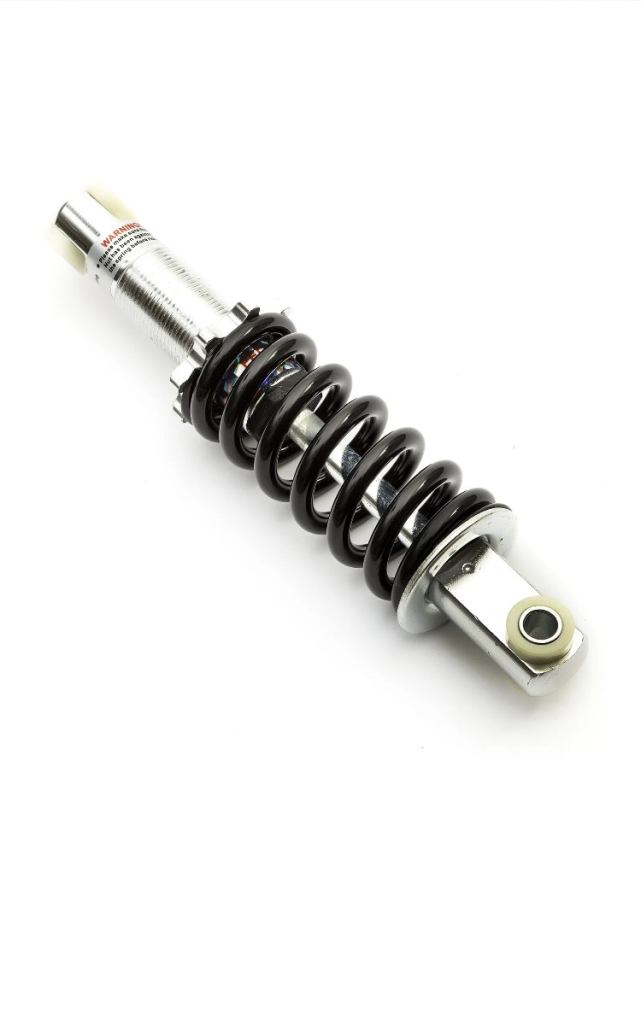

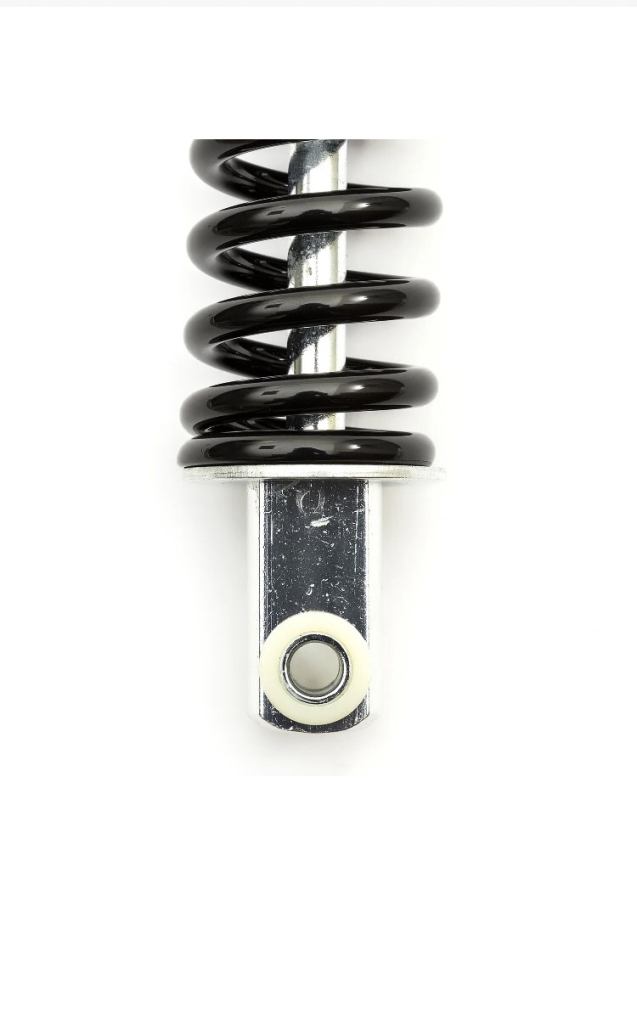

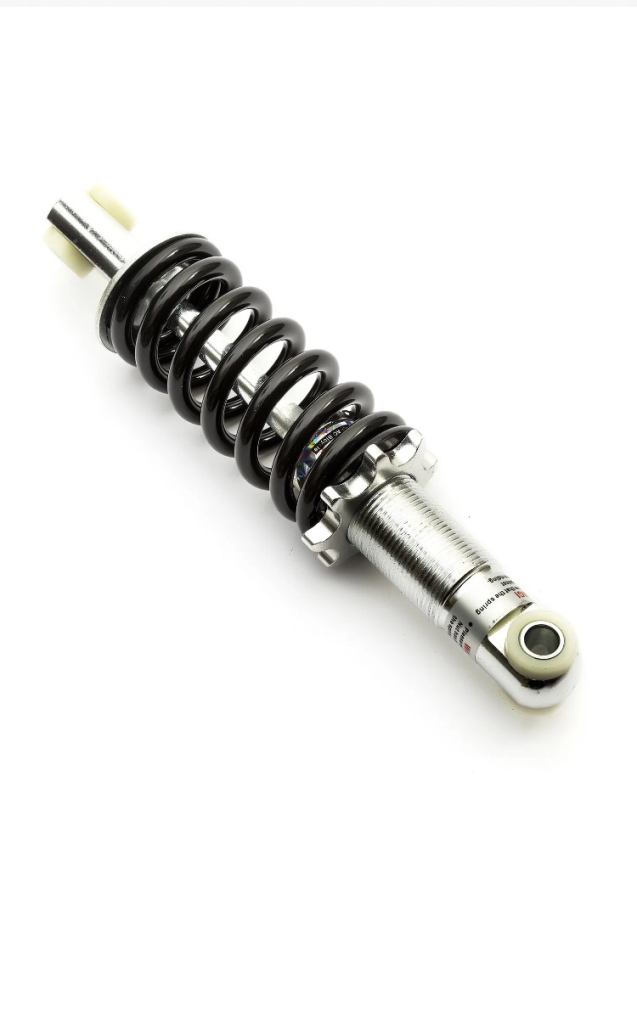

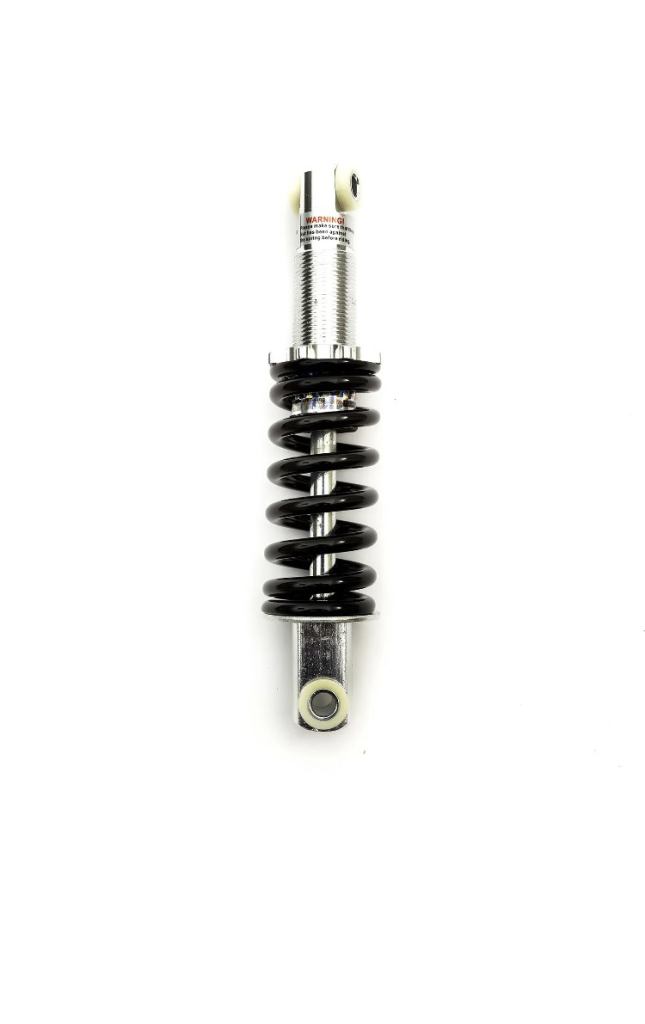

IF YOU CAN SEE THIS ON HERE THEN ITS STILL AVAILABLE Quadbikes ATV rear suspension Shock Absorber Ideal for lighter users and small frame bikes This suspension provides a smoother ride and better overall damping management. Incorporates an adjustable spring Only really suitable for bikes with frames that weigh under 40 kilos A Petrolscooter manufactured and branded part


SPECIFICATIONS
Overall Length: 210 mm / 8.27 inches
Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 190 mm / 7.48 inches
Diameter of Fixing Hole(s): 8 mm / 0.31 inches
Diameter of Top Fixing Hole/s: 8 mm / 0.31 inches
Diameter of Bottom Fixing Hole/s: 8 mm / 0.31 inches
Width of the Top Fixing Hole (through the middle, from one side to the other): 24.07 mm / 0.95 inches
Width of the Bottom Fixing Hole (through the middle, from one side to the other): 24.07 mm / 0.95 inches
Width of Fixing Holes Sections (one side of the hole to the other): 24 mm / 0.94 inches
Includes Spring Tension Adjustment?: Yes
Greatest Outer Diameter of Spring (approx.): 39 mm / 1.54 inches
Includes Spring Tensioner?: Yes
Spring Colour: Black
Firmness: Soft to Medium
Spring Thickness: 6.5 mm / 0.26 inches
Length of Spring: 88 mm / 3.46 inches
Outer Diameter: 45 mm / 1.77 inches

Ad ID: 1455387833

Exact specification may vary from the details on this page. Please contact the seller to reconfirm any details before purchasing. See Terms & Conditions for further information.
