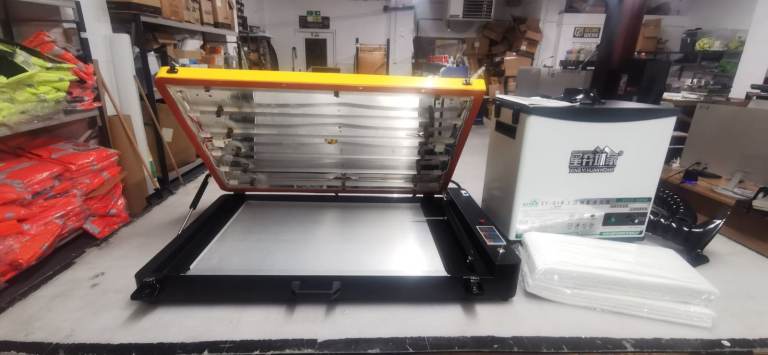

DTF Curing Oven With DTF Printing Curing Oven Fume Filter System (with new filters)

Description

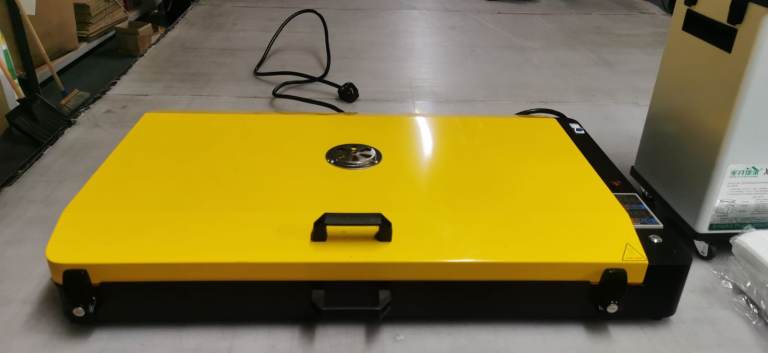

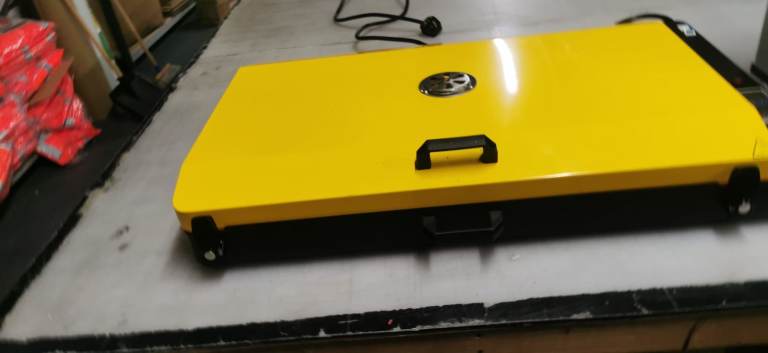

UK 60cm x 40cm DTF Oven With Temperature Control Pro DTF Oven Curing Transfer Film DTF Sheet Drawer Model
Exellent working condition. Approxi 1 year old.
DTF curing oven for baking transfer sheets that are freshly powdered. Fit sheets up to 60cm x 40cm. Tested with Resolute DTF Supplies. Small footprint and easy to operate.

Specifications:
Cures film up to 400mm x 600mm
Control:temperature&time setup,PID control
Supply:110V,2400W,21.8A/220V,2400W,10.9A
Lamps number: 6pcs
Curing temperature up to 160°C (320°F)
Controllable digital timer:180–300s
Suggested temperature is 100-170°C (212-338°F) (The specific temperature depends on the melting point of the powder.)
Suggested time is 210s-300s.(the specific time depends on the melting condition of the powder.)
Dimension: 890mm x 573mm x 165mm
Weight: 22kg

We recommend using this in conjunction with a fume extractor or outside venting. Fumes may be harmful if inhaled.

Feature:
1.Second generation design ,more scientific structure ,more accurate temperature control ,full width drying and curing without dead corner ,perfect curing fusion effect.
2.Automatic timing ,arrival buzzer and LED alarm.
3.Suitable for 60cm x 40cm DTF printing, ink & powder fuse curing.

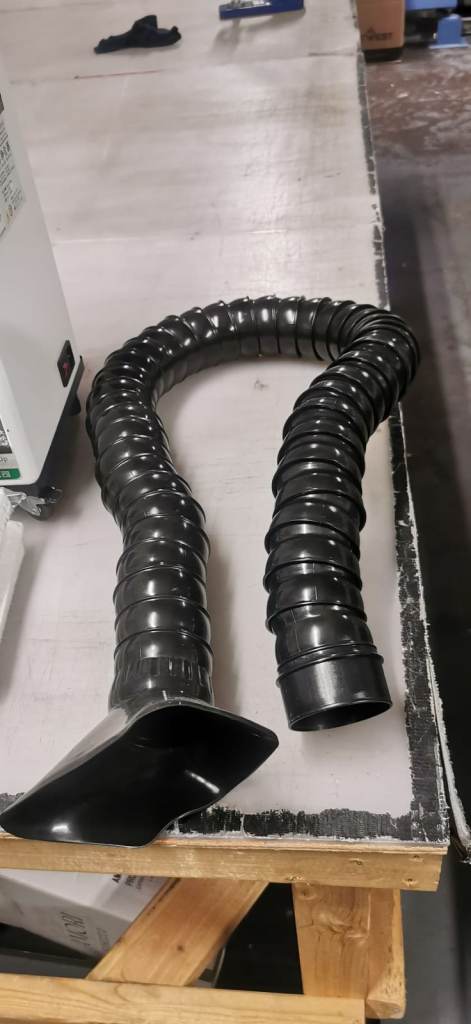

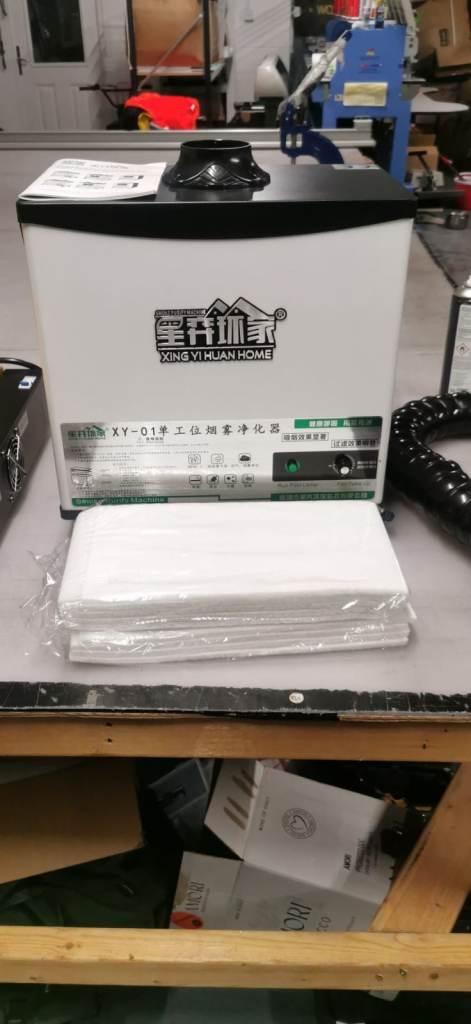

T-shirt Printing / DTF Printing Curing Oven Fume Filter System / Smoke Purifier

The Resolute DTF Powder Fume Filter System provides a comprehensive solution for capturing harmful fumes generated during DTF powder/ink/film curing, ensuring a cleaner and healthier printing environment.
The device is designed to improve indoor air quality by filtering out harmful fumes, smoke, dust, and odors. It uses a multi-layer filtration system, typically including a primary filter, an activated carbon filter, and a high-efficiency HEPA filter, to capture even the smallest particles and absorb harmful gases. Such purifiers are often used in homes, workshops, or industrial settings for activities like soldering or laser engraving to ensure a healthy breathing environment.


Ideal for:
DTF powder finishing machinesDTF curing ovens Key Features:
Effective Fume Filtration: Captures and removes fumes and particles created during the DTF curing process.Standard 13amp Plug: Easy integration with your existing electrical setup.Daily Washout Filters: Capture a significant amount of fumes for regular cleaning.Full Chamber Filter: Provides additional filtration for a cleaner workspace.Variable Speed Control Dial: Adjust the fan speed to optimise performance for your specific equipment. Instructions & Safety Information
Important Information:
Required Ventilation: This product must be used in a well-ventilated area, not a sealed room.Recommended Setting: For standard DTF finishing units, a dial setting of 4-5 is recommended. Higher settings may cause fumes to escape.Replacement Filters: Replacement filters are available (green or white casing) from Resolute. Instructions:
Position the unit in a well-ventilated area near your DTF equipment.Connect the unit to a standard 13amp socket.Turn on the unit and adjust the fan speed using the dial.Follow the manufacturer's instructions for cleaning or replacing the daily washout filters and full chamber filter as needed. Safety Information:
Always consult your DTF equipment manual for recommended ventilation practices.Ensure proper ventilation in your workspace even when using the fume filter system.Keep this unit out of reach of children and pets.
Product DetailsBrand: XING YI HUAN HOME / Resolute Model: XY-01Type: Smoke Purify Machine Manufacturer: Shenzhen City XINGYI Environmental Protection Technology Co., Ltd.Dimensions: D430 x W240 H460mm (Outline dimension)Weight: 16kgInput: AC220V 50HzPower: 120WAir Volume: 20-260m³/hPurification Efficiency: 0.3μm @ 99.97%Certifications: CE certified
