£100
Panasonic WJ-MX10 Audio & Video Digital Production Mixer
Headington, Oxfordshire
1 / 6
£100
Description

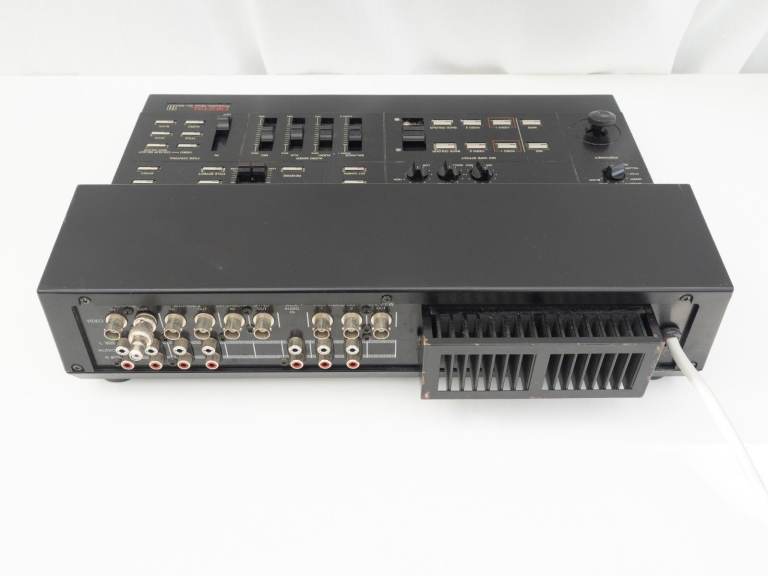

Panasonic Wj-Mx 10 Audio & Video Digital Production Mixer
Panasonic WJ-MX 10 Audio & Digital Video Production Mixer is a compact digital video production mixer designed for analog video mixing and effects. It features two-channel inputs (BNC), 17 wipe patterns, a built-in joystick, and color background generation.
Video

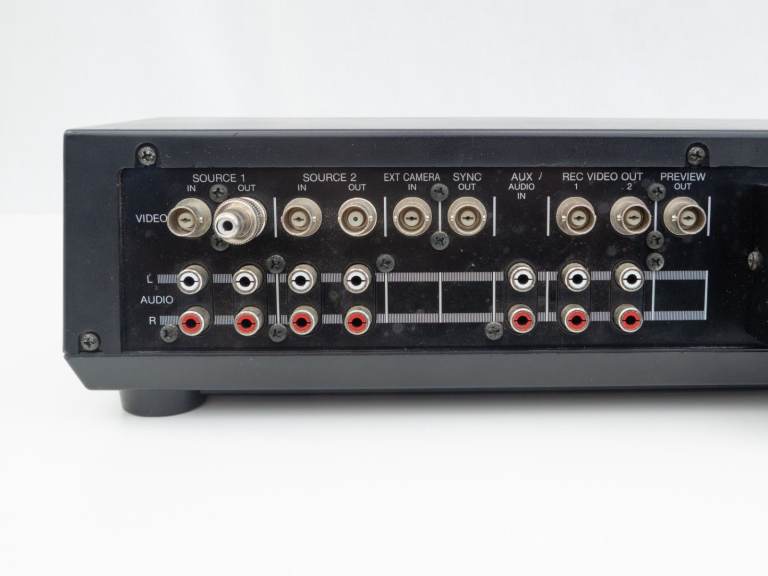

Input source: 2 (source 1 and source 2)
Input Video: 1.0 Vp-p/75 Ω or high impedance loop-through, PAL composite signal, BNC
External camera input: 1.0 Vp-p/75 Ω CCIR or PAL composite signal, BNC x1
Sync output: 1.0 Vp-p/75 Ω, composite sync, BNC x1
Recording output: x2 (REC OUT 1 and REC OUT 2)
Video output:1.0 Vp-p/75 Ω, PAL composite signal, BNC
Video-Preview input: 1.0 Vp-p/75 Ω, PAL composite signal, BNC x1
Sync range: 15,625 kHz + 300 Hz, SC: 4.433619 MHz + 40 Hz
Frequency Response: 3 MHz (-3 dB) (Video, Y-Signal), 20 - 20 kHz (-3 dB) (Audio)
Max. resolutiong: 300 lines
Gain: Unity (Video)
Signal-to-noise Ratio: > 46 dB (Video), 50 dB (Audio)
Audio
Input -8 dBV/1 kΩ, Cinch
Microphon input (mono): -60 dB/600 Ω
AUX input: -10 dBV/15 kΩ, Cinch
Audio output: -10 dBV/15 kΩ, Cinch
Headphones output: -30 dB/8 Ω, (8 Ω - 100 Ω), 6.3 mm jack
Posted: 2 hours ago
Ad ID: 1802322100
