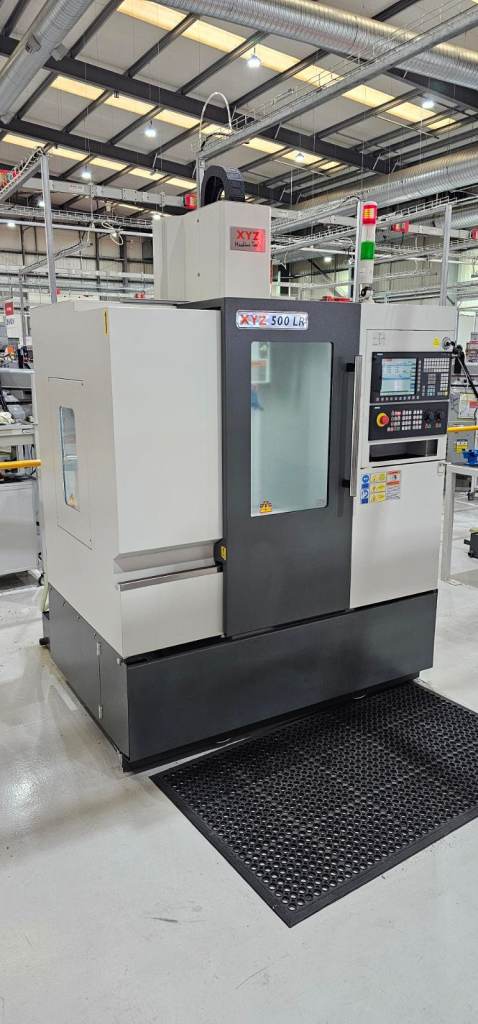

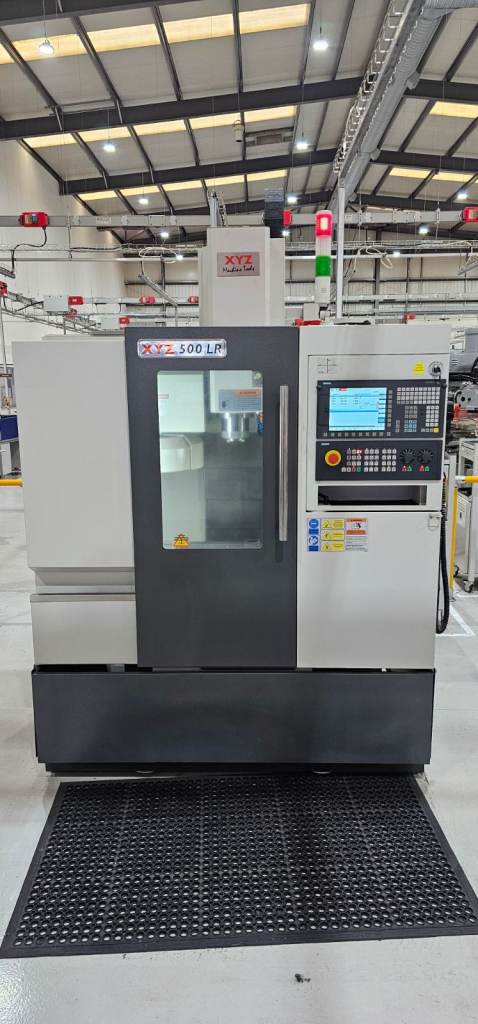

XYZ 500 LR VERTICAL CNC MACHINING CENTRE

Description

Model 500 LR Year 2018

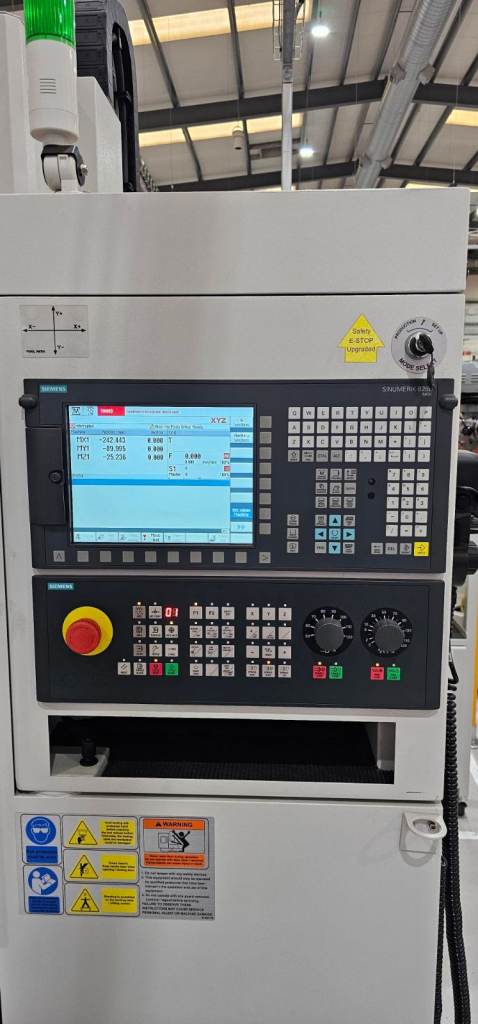

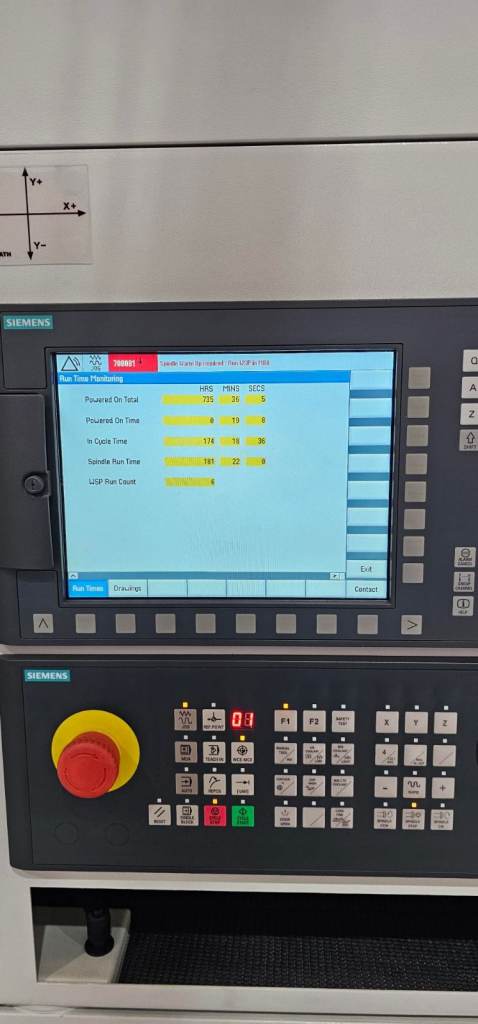

Serial number SMA10190 Control system SIEMENS 828D with Shopmill.

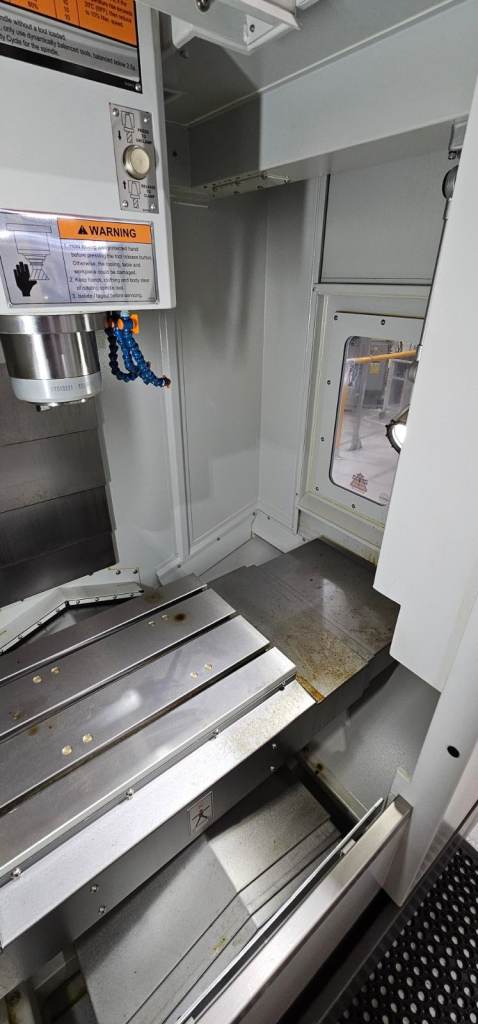

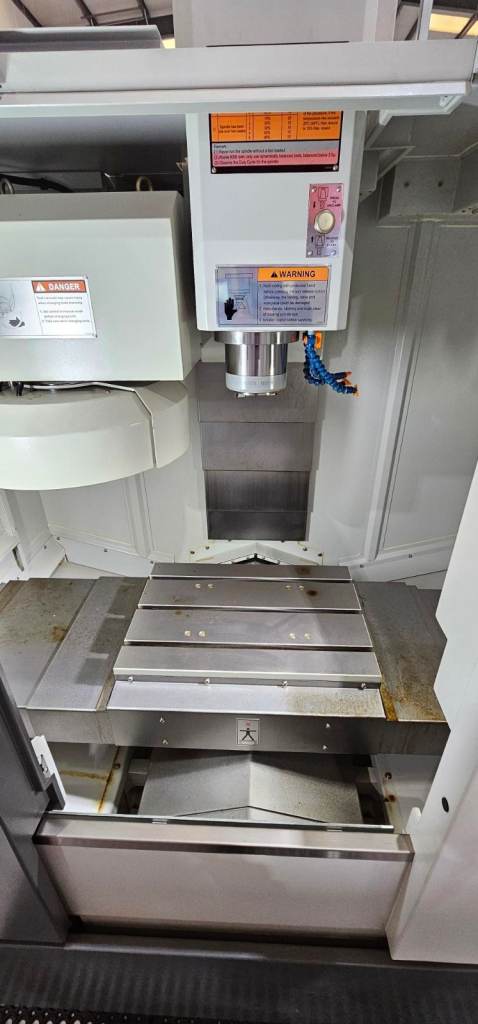

TABLE
Table size 580 x 400 mm
Table load capacity 250 kg

MOVEMENT
Table positioning travel (X x Y) 500 x 400 mm
Head vertical travel (Z) 440 mm
Distance, table to spindle 100 - 550 mm
Spindle centre to column face 415 mm

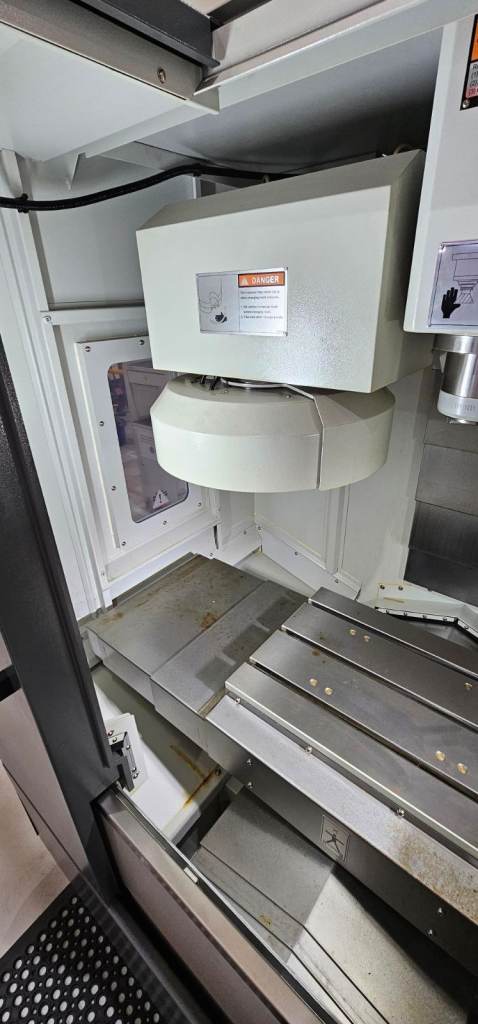

SPINDLE
Spindle taper BT 40
Spindle speeds 5 - 8,000 rpm
Spindle drive motor 20 hp / 15 kW

FEED RATE
Feed rate 1 - 20,000 mm/min
Rapid traverse (X, Y, Z) 20 m/min

AUTOMATIC TOOLCHANGER
|Carousel type 12 tools Max. tool diameter 100 mm
Tool selection Random Max. tool weight 7 kg

Overall size approx. 1890mm W x 1982mm F to B x 2700mm Min H
Machine weight (approx.) 2100 kg.

Complete with :-
Optimised Digital Servo Drives, Rigid Tapping, Flood Coolant, Worklight, 12 Station Carousel ATC, Easy Clean Swarf Tray, Steel Concertina Guards on all axes, Powder Coated Guarding, USB Port, Machine Manual.

CONDITION :- EXCELLENT, VERY LITTLE USED.

Price plus V.A.T.

Ex-works, Birmingham.

N.B.
Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed.
We advise prospective purchasers to check any vital details.
Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Contact Ron Thompson Machinery Co. Ltd.

Wanted - we purchase all types of metal cutting machinery from 2 axis CNC lathes to multi tasking turning and CNC machining centres, production machinery and tool-room machinery.
