Under Floor heating panels and pipe

Description

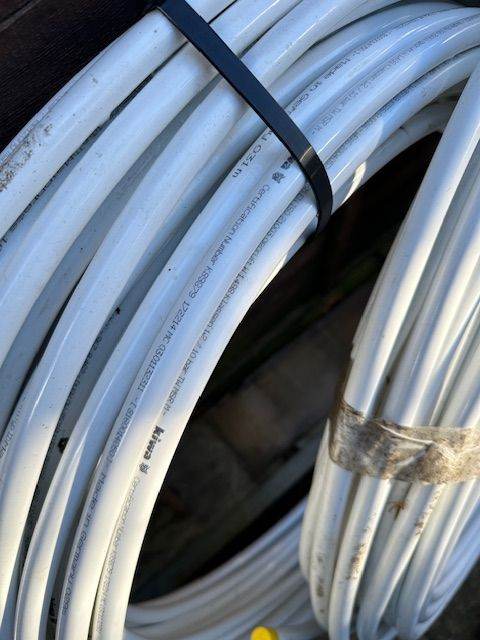

PIPE
2 reels of 50 m long 16mm diameter with 2mm wall thickness . Total 100m Price quoted is for pipe only.
Maincor Kiwa
16 x 2mm UNDERFLOOR HEATING PIPE

MAINCOR MAINPRESS – Multilayer composite pipe.

MAINPRESS pipe is a compressive strength multilayer (5 layers) PE-RT / AL / PE-RT composite pipe. With 100% oxygen diffusion resistance, the pipe is ideal for use in heating and sanitary installations.

Multilayer pipes are characterized by increased temperature resistance as well as shape stability compared to solid plastic pipes.

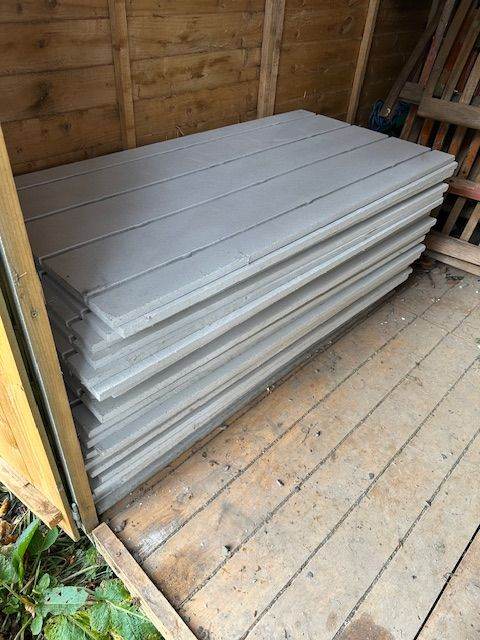

CEMENT PANELS I will accept offers for these
27 panels available - surplus to a contract. - covers 15 sqm

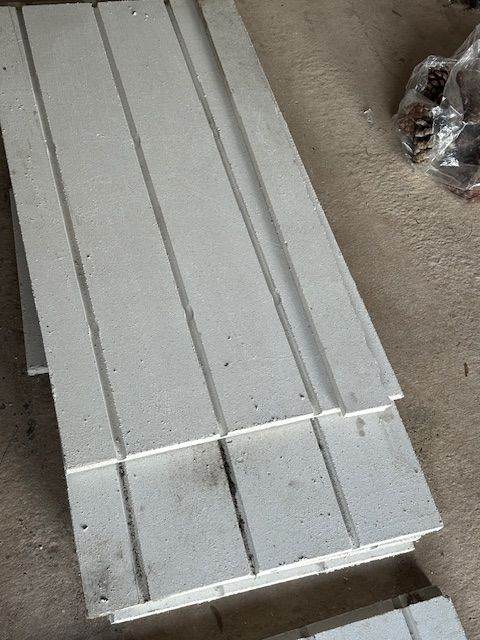

18mm ThermRite™ Routed Screed Overlay Board no Turns, Plain Edge
Description
Low Profile, High Strength, Grooved Cement Boards to enable tiling directly on top.
At only 18mm thick, and designed for use with our 12mm pipe, these cement boards are ideally suited to a low profile design that requires tiling on top.
Our High density overlay floor boards are ideally suited for underfloor heating and benefit from high impact resistance. These boards increase the efficiency of an under floor heating board system due to their low thermal resistance and rapid heat transfer characteristics.
Used in conjunction with a strip of our Pre-Insulated Profix Panels at either end of the room to enable turning and routing of pipes, these Cement Boards offer an ideal fast-fit, low profile and high output underfloor heating system. They can be installed directly onto both screed or wood floors and to maximise efficiency a layer of out 6mm or 10mm insulation boards can be used below the boards to limit any downward heat loss.
Our screed boards enable underfloor heating, boilers, ground water heat pumps and heat recovery systems to work at maximum efficiency and deliver comfortable, controllable heat to the occupant quicker than traditional floor finishes.

Specification:
Board Height: 18mm
Board Size: 800 x 600mm
Grooves: 4 @ 150mm Centres for 12mm pipe
Board Coverage: 0.42m²
Features:
Very low thermal resistance (0.045m /kW)
High thermal conductivity (0.40W/mK)
Low thermal expansion
Only 18mm thick
Doesn’t contract or expand like chipboard when exposed to water
High impact resistance
Quick and easy to install
Accepts ceramic tiles

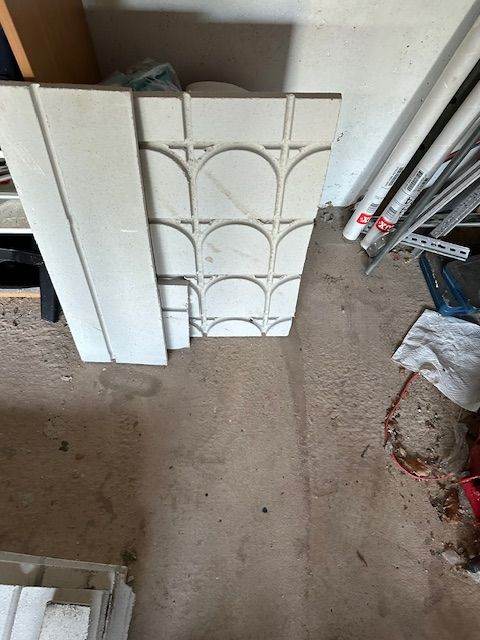

Additional Installation Option: Combine these boards with a row of our Insulated Turning Panels on your pipe turns to create a complete, high output overlay solution
