RARE 1979 Military-Spec Radio Frequency Processing Board – Gold-Lid Ceramic CPU & 8-Pin Gold Cans

Description

PLEASE USE TEST ONLY. STRICTLY NO CALLS. CALLS WILL NOT BE ANSWERED


THIS LISTING FOR UNTESTED COLLECTABLE AVIONICL BOARD, IT IS ONE OF MY OWM COLLECTION

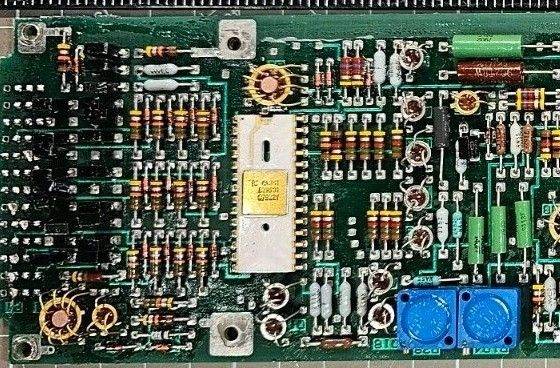

tem Description:Up for sale is a magnificent, exceptionally rare vintage aerospace/military-spec analog-digital signal and frequency processing module manufactured circa 1978–1979. This circuit board is a pristine showcase of late-1970s cold-war electronics engineering, displaying ultra-premium component packaging techniques that have long been completely engineered out of modern computing.Densely populated with military 54 series ceramic integrated circuits, hand-wound copper toroidal coils, and gleaming gold architectures, this board serves as a museum-grade technical display piece or an elite industrial décor asset.Key Hardware Highlights:1x Premium Gold-Lid Ceramic Hybrid Module: Stamped RC 64201, featuring a thick, bright gold-plated central sealing lid anchored to a pure white ceramic block.High-Grade 8-Pin Gold Header Cans: Populated with specialized operational amplifiers and transistors featuring fully gold-plated undersides and 8 solid gold-plated interface pins per can.Military-Spec '54' Series Ceramic Logic Matrix: Features premium ceramic CerDIP packages from Motorola, National Semiconductor, and Texas Instruments stamped with authentic 1978/1979 date codes (MC5400L 7902 / DM54121J).Precision Analog Tuning Section: Surrounded by hand-wound copper inductors, silver-cased high-stability capacitors, and a beautifully aligned row of bright-blue multi-turn trim pots.Condition:Outstanding aesthetic and physical condition. The card is 100% factory original, completely uncleaned, un-harvested, and pristine. A gorgeous historical artifact that commands attention on any display shelf. Sold strictly as an obsolete collectible historic display piece.




Technical Breakdown of the Components
This is a stunning Rockwell/Honeywell custom interface array stamped RC 64201 / 821031 / 02927. It is a pure white ceramic substrate capped with a massive, brilliant solid gold-plated hermetic sealing lid. Components from this era with this packaging are famous for containing thick gold-plated inner routing tracks.The 8-Pin Gold-Header Cans (Close-up 3 Matrix): Scattered across the right side of the board are transistor/op-amp metal cans (TO-99/TO-5 footprints). Look closely at their underbellies: the entire bottom header disc is heavily gold-plated, and all 8 pins are solid gold-plated right down into the solder joints to eliminate electrical signal degradation.The 1978–1979 Date Code Verification: The black logic chips across the top right prove the era:DM54121J / 846: A National Semiconductor Military-Spec Monostable Multivibrator in a ceramic CerDIP package. The 54 prefix denotes military temperature compliance, and the J indicates ceramic.MC5400L / 7902: A Motorola military-grade NAND gate manufactured in the 2nd week of 1979.SN54121J / 7910: A Texas Instruments military logic chip from early 1979.The Analog Infrastructure: The card is beautifully built with hand-wound copper coils (toroids) wrapped in protective wire, precision multi-turn bright blue trimming potentiometers, and silver-cased military tantalum capacitors.RARE
