11mm structural OSB 2440mm x 1220mm

Description

Product Overview


*******£10 each 10 sheet
Collection only********

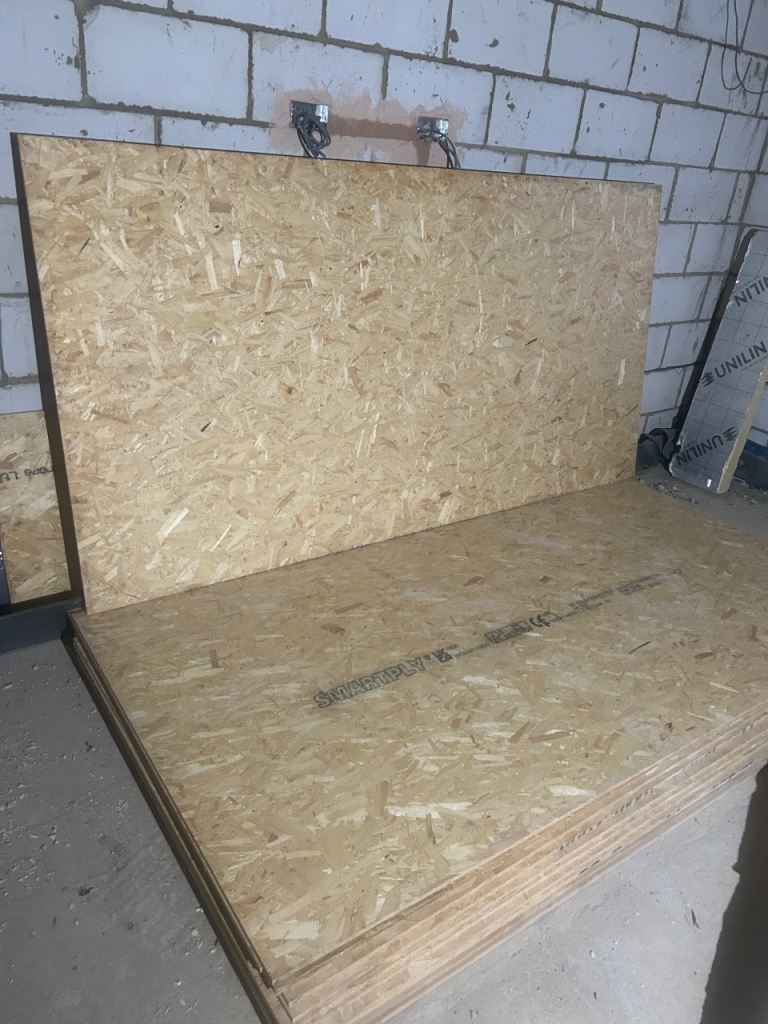

Structural OSB 3 Sterling board, measuring 2440mm x 1220mm (8' x 4') with an 11mm thickness.


Engineered from cross-laminated softwood strands and bonded with resin under heat and pressure, it delivers consistent strength and stability without knots or voids.


Certified to EN 300 OSB 3 for load-bearing performance in humid conditions, it serves as a practical and cost-effective alternative to plywood for many structural applications such as roofing decks, wall panels, and general sheathing.


Features & Benefits

Structural classification: OSB 3 certified to EN 300, for load-bearing use in humid conditions.
BBA approved: Permits use in a wide range of commercial and domestic projects.
Void-free construction: Consistent strength with no knots or core gaps.
Cross-strand stability: Resists warping, splitting, and expansion.
Moisture performance: Reliable in humid environments, unlike OSB 2 (dry-use only).
Workability: Easy to cut, drill, nail, and sand with standard tools.
Board size 2440mm x 1220mm: Compatible with UK framing centres for straightforward fixing on standard stud/joist spacing.
Thickness 11mm: Provides reliable strength for roofing, sheathing, and general panel work.


Applications

Roof decking: Acts as a stable, load-bearing base beneath membranes and primary roof coverings.
Sarking: Used under the primary roof covering (like slates or tiles) to provide a secondary barrier and add rigidity to the roof structure.
Timber frame wall sheathing: Structural EN 300 classification provides necessary lateral stability and stiffness when fixed to internal timber studwork at 600mm centres.
Flooring underlayment: Provides a solid, level surface suitable for light domestic flooring applications.
Site hoardings: Delivers a durable, cost-effective solution for temporary site enclosures and fencing.
Sheds and garden buildings: Ideal for robust construction of walls, roofs, and flooring.
Shopfitting and displays: Versatile enough for the fabrication of shelving units, structural stands, and internal panelling.
General DIY projects: Practical for wide-ranging construction tasks requiring a high-strength, stable panel.
Garden shed construction: High racking resistance and moisture-tolerant resin make 11mm boards ideal for cost-effective wall sheathing and roof decking in timber outbuildings.
Animal shelters and kennels: Moisture-resistant properties allow for use in sheltered exterior applications such as chicken coops and kennels when finished with appropriate timber treatments.

Installation Guidance

Allow for expansion: Leave a 3mm expansion gap between all board edges and a 10mm gap at rigid wall abutments to accommodate natural movement.
Stagger the joints: Lay panels in a "brick-bond" pattern across supports to ensure structural loads are distributed evenly across the frame.
Support all edges: Ensure every board edge is supported by a joist, stud, or noggin to prevent deflection and maintain a level surface.
Apply correct fixings: Secure boards using galvanised nails or screws at 150mm intervals along edges and 300mm intervals on intermediate supports.
Seal cut edges: Coat all field-cut edges with a high-quality water-resistant wood sealant immediately to prevent moisture ingress and edge swelling.
Orient boards correctly: Install the long axis of the board perpendicular to the supporting joists or studs for maximum structural spanning strength.
Protect from weather: Cover installed boards with a waterproof membrane as soon as possible if the structure is not yet fully weathered.
Fixing distance from edge: Ensure all fasteners are driven at least 10mm from the board edge to prevent breakout and maintain pull-through resistance.
Surface painting: Use a high-quality solvent-based primer or dedicated OSB sealer before applying topcoats to prevent strand swelling,
