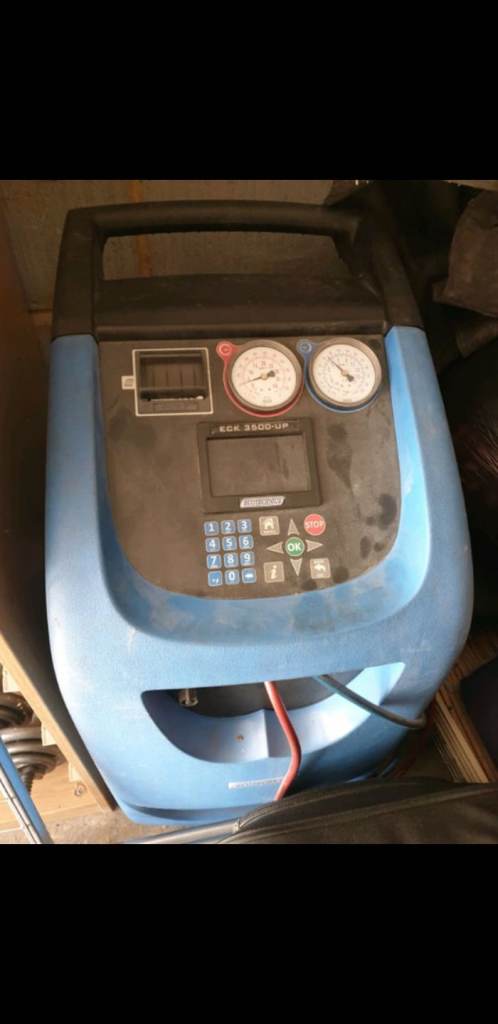

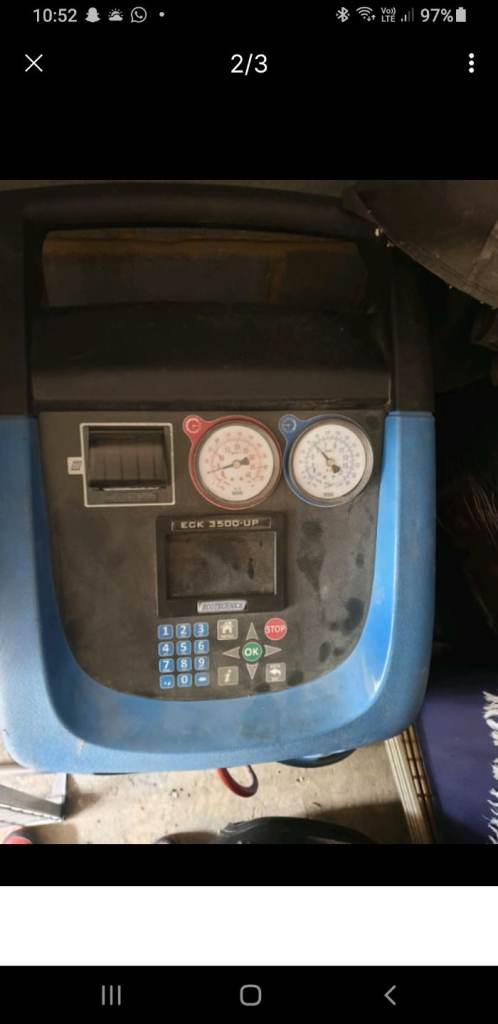

AC AIR-CON MACHINE ECK 3500 UP

Description

The ECK-NEXT is a fully automated air conditioning service station for recovery, charging and recycling of both R134a and HFO1234YF

All of our air con machines come with on-site commissioning and user training as well as aftersales support from our technical experts.

ECK-NEXT Key features:

Integrated access to vehicle database provides instant information about refrigerant quantity.
Large 4.3" touch screen display for an easy, fast and intuitive navigation
Manual discharge of non-condensable gases
Management report software
Built in printer offers complete report of all machine operations and A/C system diagnostics data.
3m hose length for greater accessibility
12kg rechargeable refrigerant bottle
The main benefits of the ECK-NEXT machine are its automatic features which ensure maximum time efficiency within the workplace. These automatic features include:

Refrigerant recovery and recycling
Replaces identical weight of oil extracted during recovery process
High performance programmable vacuum.
Injects UV dye by correct weight
Bottle heater
Acoustic and visual service alarms ensure maintenance and filter replacement is not neglected.
ECK-NEXT Technical specification:

Refrigerant: R134a, HFO1234YF
Service procedure: automatic/manual
Voltage: 220v – 240v/50hz
Scale resolution: +/- 10g
Oil scale resolution: +/- 5g
Operating temp range: 11/49 c
Filter system: 2 filters for humidity and acidity
Vacuum pump: capacity 84L/min, 0.1mbar vacuum.
Compressor: 12cc, hermetic, high pressure
Recovery speed: Max 300g/min in liquid phase
Refrigerant bottle: 12kg rechargeable
Hose length: 3metres
Unit dimensions: 50cm x 60cm x 97cm
Unit weight: 80kg
Software updates: available via internet through RS232 serial line or USB

Ad ID: 1403939246

Exact specification may vary from the details on this page. Please contact the seller to reconfirm any details before purchasing. See Terms & Conditions for further information.
