Arena Leveller. Menage Grader. Arena Grader for sale.Menage Leveller for all surfaces

Description

Our Arena levellers or ménage graders are suitable for all riding surfaces consisting of silica sand, rubber, wax, fibre, foam and clothing materials.

The more popular horse arenas are sand and rubber, however, more people are now opting for wax and fibre within the sand and rubber surface. Whatever your surface, we will have the right
arena leveller set up to suit your riding requirements.

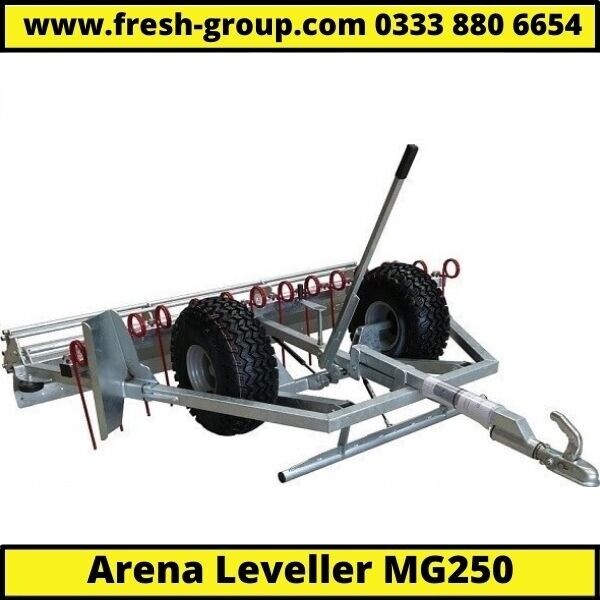

The Chapman MG250 arena leveller is an effective quality machine designed for all arena surfaces.

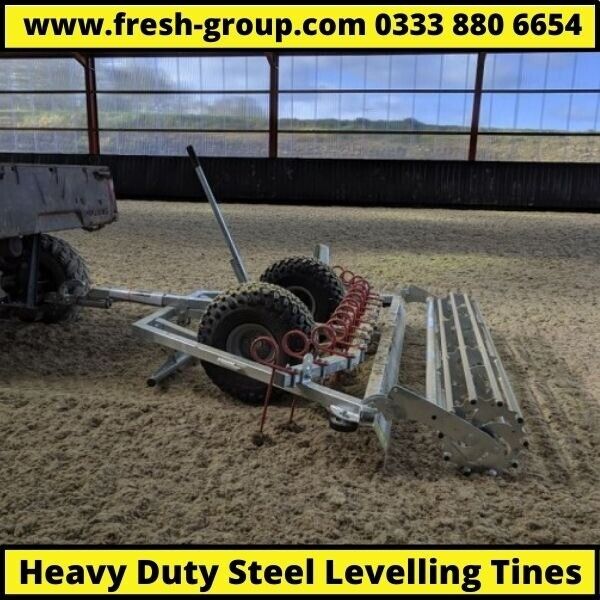

A great design feature of this arena grader is its pre-levelling bar which sits in front of the large tracking wheels and is individually adjustable. It is mounted onto a gas strut so if the top surface builds up whilst levelling it, this will 'give', reducing top surface drag.
​Depending on your surface or preferences you may need or want a rear roller. We recommend the rear roller if you have a wax/fibre mix surface or if you want a more finished surface on silica sand and rubber crumb surfaces.


Specifications:

MG250 – 2.3m working width, Spring Tines, Levelling Blade, Perimeter Blade -
Technical Specification:
Grading Width - 2.3m
Weight - 120/175kg (MG250 / MG250+RR)
Tyre Size - 22x11x8 inches
Number of tines - 14
Tine size - 13mm diameter spring steel


Tractor mount option (3-point linkage) – If you want to tow the arena leveller using either a normal or compact tractor we can supply you with a 3-point linkage carrier frame, this is in place of the towable drawbar. However, please note if you ever want to convert back so it can be towed by an ATV quad bike or similar, you can purchase and simply fit the drawbar instead on the 3-point linkage carrier frame.

The price advertised is ex vat
