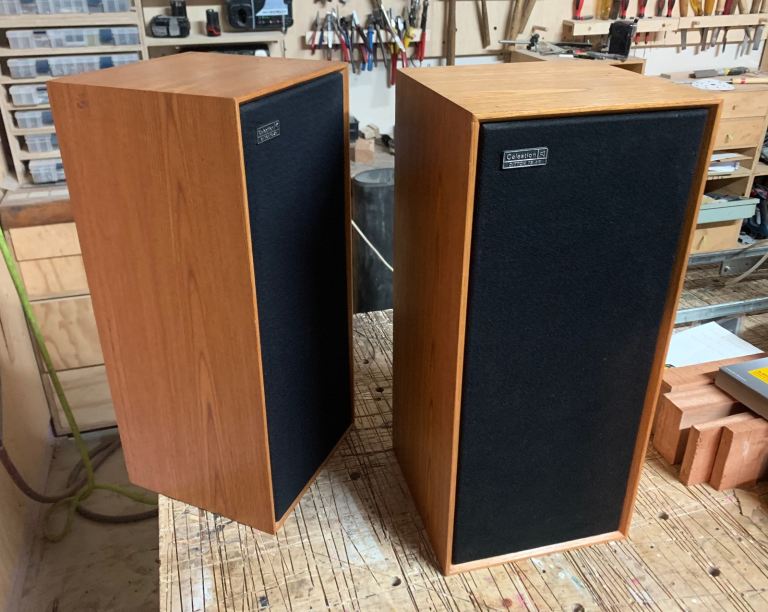

Vintage Celestion Ditton 15XR Speakers

Description

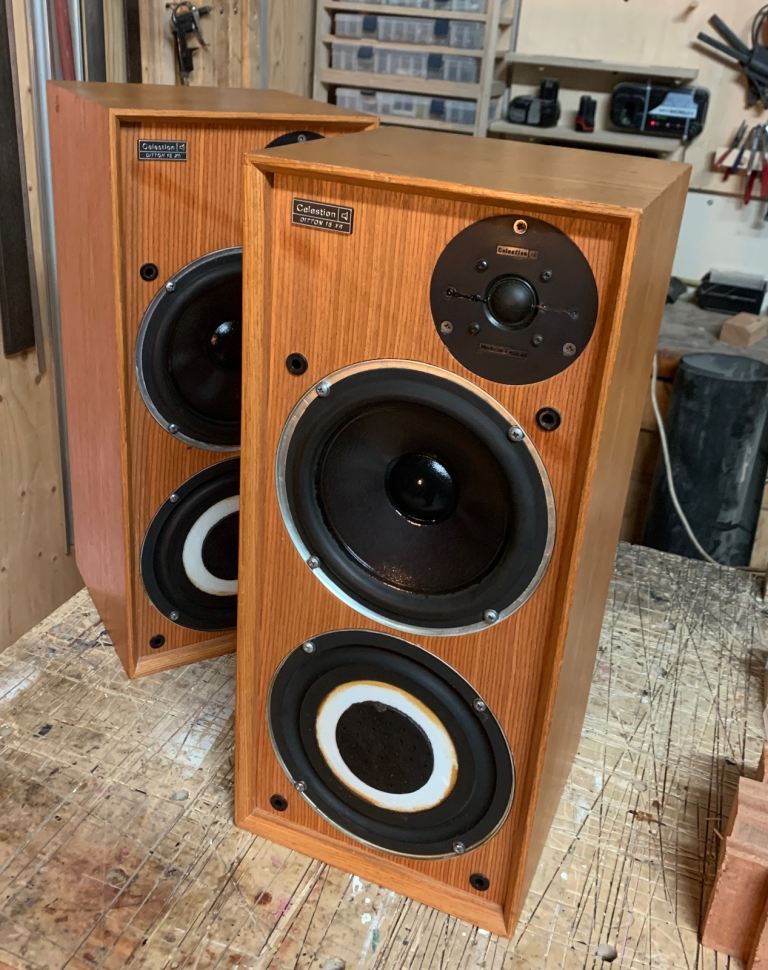

Very nice examples of the ever popular Celestion Ditton 15XR.

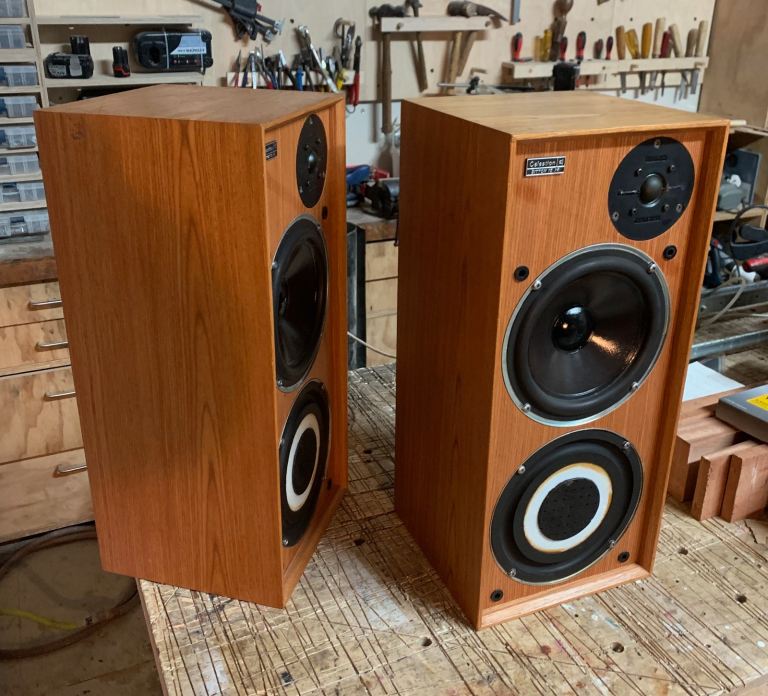

The Ditton 15XR was a replacement for the hugely successful Ditton 15. XR stands for extended range, as the HD1000 fabric dome tweeter can cover higher frequencies than the original model's unit, and the bass goes lower. They use an 8 inch mid/bass driver, and a passive bass radiator. Impedance is 8 ohms. They are finished in real wood veneer.

The drivers are all original and working perfectly. The original electrolytic capacitors have been checked and are still within spec so I have left them be.

They sound great; warm and powerful, with great bass weight for the size.

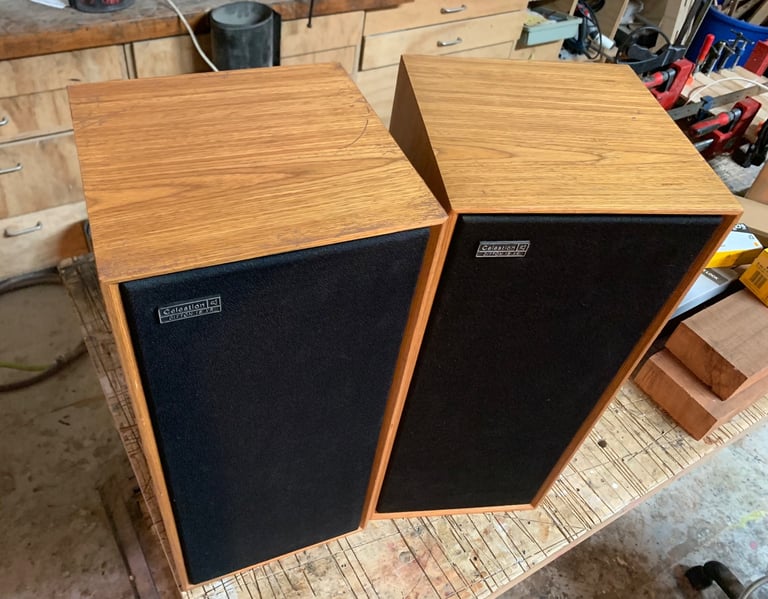

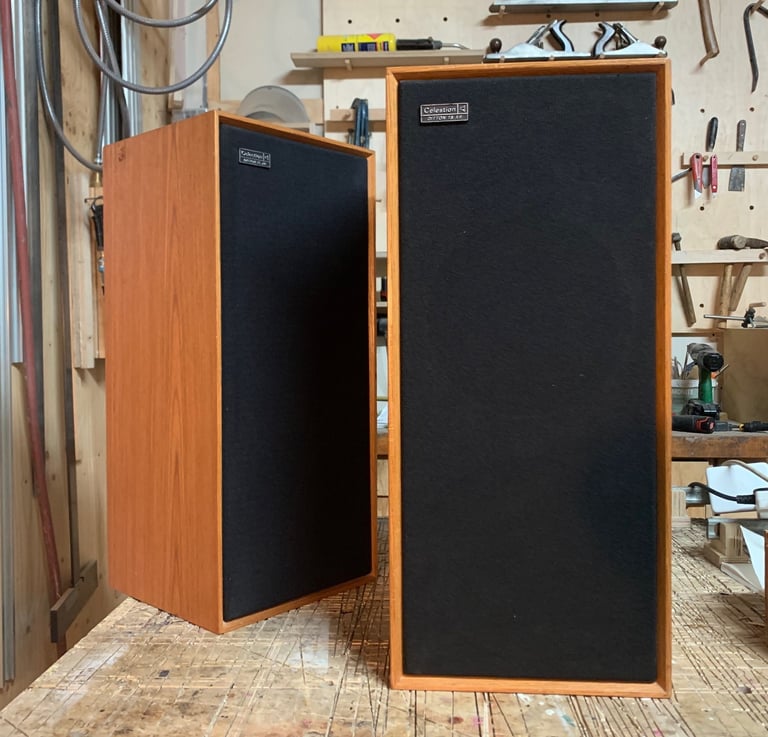

The cabinets have had a few scratches filled and sanded, and they have been given a coat of Danish oil and look great.

Power Ratings:
Maximum Rated Power: 60 watts programme (without clipping)
Continuous Sine Wave Voltage Rating
9,7 volts RMS max. 30 Hz - 2,6 kHz
7,0 volts RMS max. 2,6 kHz - 20 kHz
Sensitivity: 5,1 watts pink noise input produces 90 dB SPL at one metre in anechoic conditions
Amplifier Requirements: 10 - 60 watts RMS
Frequency response:
Overall : 30 Hz - 2 kHz
Specific: 60 Hz - 20 kHz ±4 dB; 45 Hz - 26 kHz +4 dB -10 dB

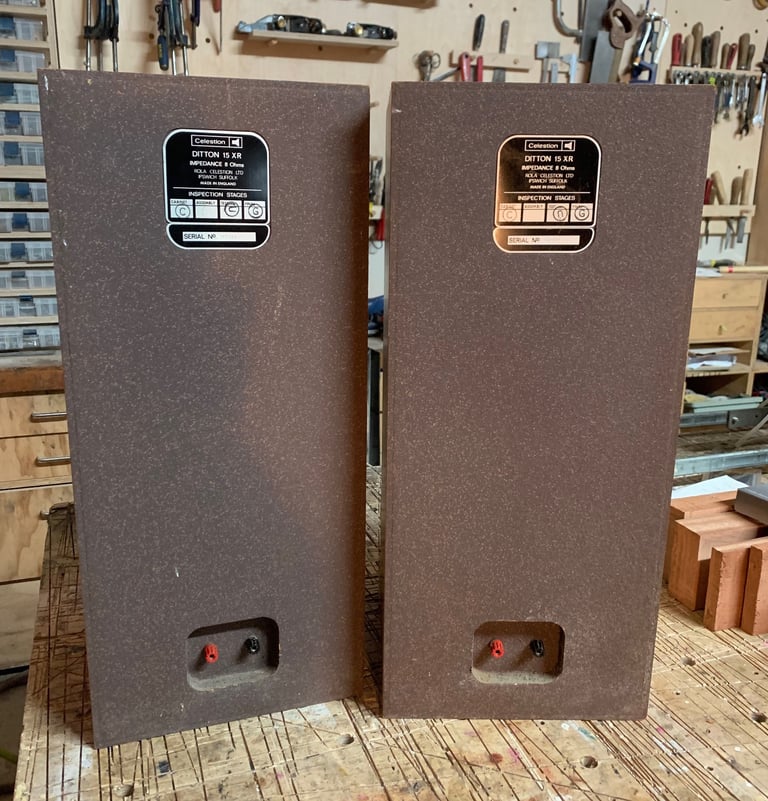

Impedance: 8 Ω
Harmonic Distortion (at 90 dB SPL):
1,2% at 100 Hz
0,69% at 400 Hz
0,86% at 1 kHz
0,46% at 4 kHz
1,13% at 10 kHz
0,91% at 15 kHz
Crossover Frequencies: 2,4 kHz
System Resonance: 35 kHz
Internal Volume: 23 liters
Dimensions (H x W x D): 560 x 250 x 240 mm (22" x 9-3/2" x 9-1/2")

I am happy to demonstrate and I have other speakers and hifi components to choose from. Click on my profile to see my other ads.
